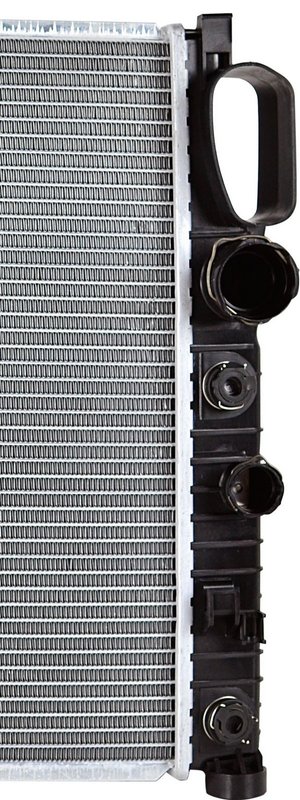

One Stop Solutions 2868 Radiator

Overview of One Stop Solutions Radiator 2868 for Mercedes-Benz E320 and E350

The One Stop Solutions radiator part number 2868 is designed specifically for Mercedes-Benz E320 and E350 models. This radiator features a crossflow design with a durable plastic tank and a PA core material, engineered to provide reliable cooling performance and compatibility with your vehicle's specifications.

• Hassle free installation with drop-in fit, form, and function
• OE performance and quality with engineering enhancements for improved cooling
• Includes a plated transmission oil cooler with fittings spaced 8 1/4 inches apart
• Premium grade tubes, fins, headers, and tanks constructed to factory specifications
• Core dimensions: 25 3/16" height, 17 5/8" width, and 1" thickness
• Crossflow core with a single row and plastic tanks for durability
• Tested up to three times during production to ensure quality and reliability

Detailed Product Description and Specifications

This radiator (part number 2868) is engineered for Mercedes-Benz E320 and E350 vehicles, featuring a crossflow core design that optimizes heat dissipation. The core is constructed from PA material, measuring 25 3/16 inches in height, 17 5/8 inches in width, and 1 inch in thickness, providing efficient cooling capacity. The plastic tanks and headers are designed to meet factory torque specifications, ensuring a secure and leak-free fit.

Included is a plated transmission oil cooler with inlet and outlet header lengths of 18 9/16 inches and widths of 2 inches, with fittings spaced 8 1/4 inches apart. The inlet and outlet diameters are both 1 7/8 inches, matching OEM requirements. This radiator does not include an engine oil cooler or cap, focusing on essential cooling functions for the engine and transmission.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiator in Mercedes-Benz E320 and E350
• Resolves overheating caused by inefficient or clogged radiator cores
• Addresses transmission fluid overheating with integrated transmission oil cooler
• Fixes coolant leaks due to cracked plastic tanks or worn seals
• Improves cooling system performance after original radiator failure

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2868 is straightforward due to its drop-in design. Ensure all fittings and hardware are torqued to factory specifications to prevent leaks. Verify the transmission oil cooler connections match the 8 1/4 inch fitting spacing. It is recommended to flush the cooling system before installation to remove debris and contaminants. Check hoses and clamps for wear and replace if necessary during installation.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to ensure durability and performance. Components such as tubes, fins, headers, and tanks are manufactured from premium materials and assembled to meet factory standards. The One Stop Solutions radiator 2868 is engineered with enhancements to address original design weaknesses and extend service life. Warranty details are provided by the manufacturer and should be reviewed prior to installation.
