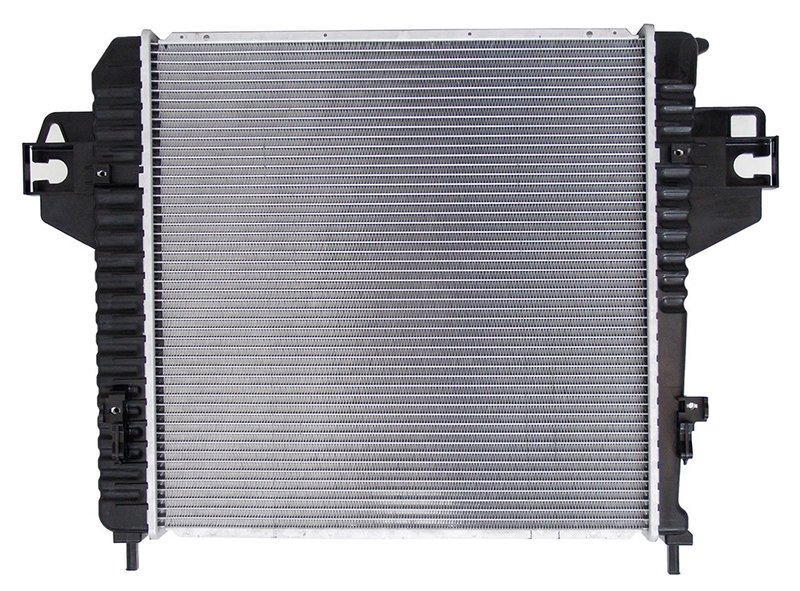

One Stop Solutions 2910 Radiator

Reliable Radiator Replacement for Jeep Liberty

The One Stop Solutions radiator part number 2910 is designed specifically for Jeep Liberty models, providing a direct replacement that ensures proper cooling system performance. Engineered with quality materials and precise dimensions, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Hassle free installation with drop-in fit, form, and function
• O.E. performance and exceptional quality components
• Engineering enhancements for improved cooling and extended service life
• Premium grade tubes, fins, headers, and plastic tanks
• Crossflow core design with 1 row and durable PA core material
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for reliability

Technical Specifications and Design Features

This radiator features a crossflow core measuring 20 inches in height and width, with a core thickness of 1 inch. The core is constructed from PA material, known for its durability and heat resistance. The plastic tanks and headers measure 21 inches in length and 2 9/16 inches in width for both inlet and outlet headers. The inlet diameter is 1 1/2 inches, while the outlet diameter is slightly larger at 1 13/16 inches, facilitating efficient coolant flow. The radiator does not include transmission or engine oil coolers, focusing solely on engine coolant management.

Applications and Common Issues Addressed

• Replacement for leaking or cracked radiator in Jeep Liberty vehicles
• Solves overheating problems caused by clogged or damaged cores
• Addresses coolant loss due to faulty plastic tanks or headers
• Improves cooling efficiency in older or worn radiators
• Restores proper coolant flow and engine temperature regulation

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2910 is straightforward due to its drop-in design tailored for Jeep Liberty models. Ensure all fittings and hardware are included and torqued to factory specifications to prevent leaks. It is recommended to flush the cooling system before installation to remove debris and contaminants. Verify hose connections match the inlet and outlet diameters of 1 1/2 and 1 13/16 inches respectively for a secure fit.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure durability and performance. The product is engineered with enhancements to address original design weaknesses and extend service life. While specific warranty details are not provided, One Stop Solutions maintains strict quality control standards to meet or exceed OEM requirements for Jeep Liberty radiator replacements.
