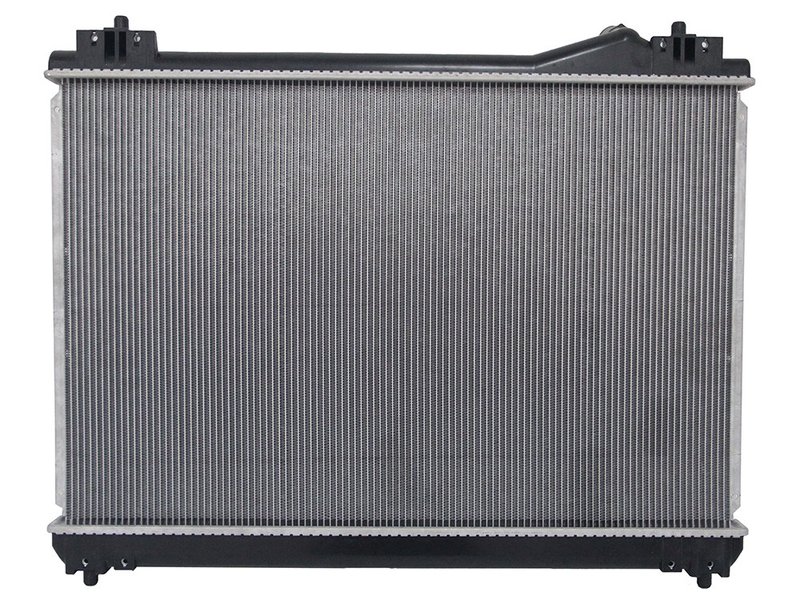

One Stop Solutions 2920 Radiator

Overview of One Stop Solutions Radiator 2920 for Suzuki Grand Vitara

The One Stop Solutions radiator part number 2920 is designed specifically for Suzuki Grand Vitara models. Engineered to provide reliable cooling performance, this radiator features a downflow core design and includes a transmission oil cooler to support vehicle efficiency and engine longevity.

• Hassle free installation for Suzuki Grand Vitara
• OE performance with enhanced cooling capabilities
• Premium grade core and tank materials for durability
• Includes concentric transmission oil cooler with 1 1/8 inch diameter
• Drop-in fit with all necessary fittings and hardware included
• Tested multiple times during production for quality assurance
• Engineering improvements to address original design issues

Detailed Radiator Specifications and Features

This radiator features a core height of 17 11/16 inches, core width of 27 1/16 inches, and a core thickness of 5/8 inch, providing efficient heat dissipation. The core is constructed from PA material, while the tanks are made of durable plastic. The radiator is designed with a single core row and a downflow configuration to optimize coolant flow. Both inlet and outlet header lengths measure 28 5/16 inches with a width of 2 inches each. The inlet diameter is 1 5/16 inches and the outlet diameter is 1 3/8 inches, ensuring proper coolant circulation. A concentric transmission oil cooler is integrated, featuring fittings spaced 13 3/4 inches apart, supporting transmission fluid cooling needs. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Application

This radiator is compatible with Suzuki Grand Vitara models requiring part number 2920. It is designed to replace original equipment radiators, maintaining factory specifications and fitment. The inclusion of a transmission oil cooler makes it suitable for Grand Vitara vehicles equipped with automatic transmissions that require integrated cooling solutions.

• Overheating issues due to radiator core damage or clogging
• Transmission fluid overheating in automatic Suzuki Grand Vitara
• Leaks or cracks in original radiator tanks or headers
• Reduced cooling efficiency from worn or corroded components
• Failure of original radiator causing engine temperature fluctuations

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2920 is straightforward with a drop-in fit design. All necessary fittings and hardware are included, allowing for a hassle-free replacement. It is recommended to verify hose connections and transmission cooler lines for proper sealing. Follow factory torque specifications when securing components to ensure optimal performance and longevity.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to ensure reliability and performance. Components such as tubes, fins, headers, and tanks are manufactured to meet or exceed OEM standards. The product includes engineering enhancements to address common design failures found in original radiators. Warranty details should be confirmed with the distributor or manufacturer.
