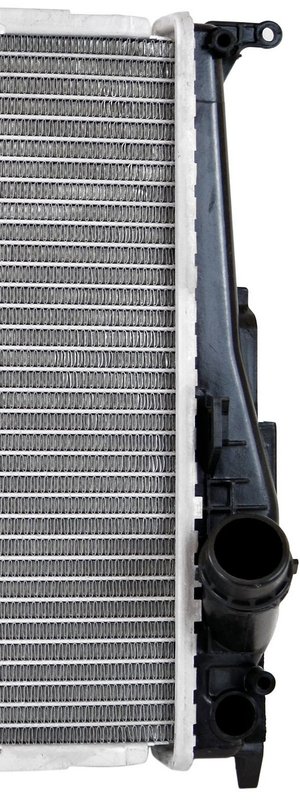

One Stop Solutions 2941 Radiator

Overview of One Stop Solutions Radiator 2941 for BMW Models

The One Stop Solutions Radiator part number 2941 is designed specifically for select BMW vehicles including the 135i, 335d, 335i, 335i xDrive, 335xi, X1, and Z4. Engineered to meet OE performance standards, this radiator offers reliable cooling with a crossflow design and durable construction.

• Hassle free installation with drop-in fit, form, and function
• Core dimensions: 23 5/8" height, 13 7/16" width, 1-1/4" thickness
• Plastic tanks and PA core material for corrosion resistance
• Crossflow core type with a single row for efficient heat dissipation
• Inlet and outlet diameters of 1 1/2" with header lengths of 14 5/16"
• Components fitted and torqued to factory specifications
• Tested up to three times during production for quality assurance
• Engineering enhancements to improve cooling and extend service life

Detailed Product Description and Specifications

This radiator features a crossflow core design with a single row, measuring 23 5/8 inches in height and 13 7/16 inches in width, providing effective cooling for your BMW engine. The core thickness is 1-1/4 inches, constructed from PA material, which offers durability and resistance to corrosion. The plastic tanks complement the core, reducing weight while maintaining structural integrity. Both the inlet and outlet have a diameter of 1 1/2 inches, with header lengths of 14 5/16 inches and widths of 1 7/8 inches, ensuring proper coolant flow and compatibility with the vehicle’s cooling system. This radiator does not include transmission or engine oil coolers, focusing solely on engine coolant management.

Compatible BMW Models and Common Applications

This radiator is compatible with the following BMW models: 135i, 335d, 335i, 335i xDrive, 335xi, X1, and Z4. It is designed to replace the original radiator with a direct fit, maintaining the vehicle’s cooling efficiency and reliability.

• Overheating issues due to radiator core damage or clogging
• Coolant leaks from cracked or worn plastic tanks
• Reduced cooling performance from corrosion or internal blockages
• Engine temperature fluctuations affecting performance
• Replacement of a damaged or faulty radiator after collision or wear

Installation Notes and Tips

Installation of the One Stop Solutions Radiator 2941 is straightforward due to its drop-in design. Ensure all fittings and hardware are included and torqued to factory specifications. It is recommended to flush the cooling system before installation to remove any debris or contaminants. Verify hose connections and clamps are secure to prevent leaks. Since this radiator does not include a cap, reuse the existing radiator cap or replace it if necessary.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to ensure durability and performance. Components such as tubes, fins, headers, and tanks are manufactured from premium-grade materials. The product includes engineering enhancements aimed at addressing original design weaknesses and improving longevity. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
