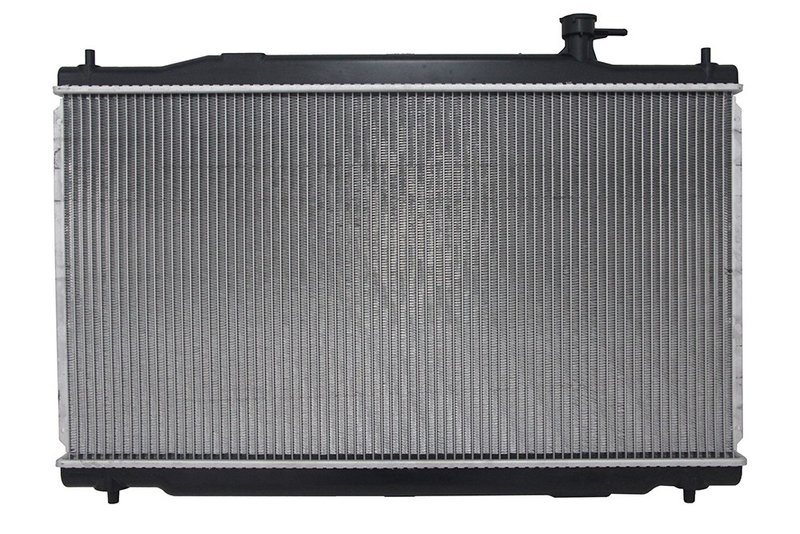

One Stop Solutions 2954 Radiator

Reliable Radiator Replacement for Honda CR-V

The One Stop Solutions radiator part number 2954 is designed specifically for Honda CR-V models, providing a direct replacement that ensures proper cooling system performance. Engineered with durable materials and precise dimensions, this radiator supports efficient heat dissipation and transmission oil cooling.

Key Features of One Stop Solutions Radiator 2954

• Hassle free installation with drop-in fit, form, and function
• O.E. performance and quality engineered to factory specifications
• Enhanced cooling efficiency with premium grade tubes, fins, headers, and tanks
• Includes concentric transmission oil cooler for integrated cooling
• Components fitted and torqued to exact factory standards
• Tested up to three times during production for reliability
• Engineering improvements address original design issues for longer life

Detailed Radiator Specifications and Construction

This radiator features a downflow core design measuring 15 3/4 inches in height, 29 1/16 inches in width, and a core thickness of 5/8 inch. The core is constructed from PA material, while the tanks are made of durable plastic. Both inlet and outlet diameters are 1 1/4 inches, with header lengths of 29 7/8 inches. The radiator includes a concentric transmission oil cooler with a 1-inch diameter and fittings spaced 12 13/16 inches apart, enhancing transmission fluid cooling without the need for a separate engine oil cooler. The single-row core design balances cooling capacity with compact size, suitable for the Honda CR-V cooling system requirements.

Compatible Applications and Common Issues Addressed

• Replacement for leaking or cracked radiator cores in Honda CR-V vehicles
• Resolves overheating caused by clogged or damaged radiator tubes and fins
• Fixes transmission fluid overheating by integrating a transmission oil cooler
• Addresses coolant leaks from plastic tanks or header connections
• Improves cooling system efficiency after original radiator failure or degradation

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2954 is straightforward due to its drop-in design tailored for Honda CR-V models. Ensure all fittings and hardware are included and properly torqued to factory specifications. It is recommended to flush the cooling system before installation to prevent contamination. Verify transmission oil cooler connections are secure to avoid leaks. No radiator cap is included, so reuse the existing cap or replace separately if needed.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure durability and performance. The product meets original equipment standards with engineering enhancements to improve lifespan and cooling efficiency. One Stop Solutions provides a limited warranty covering defects in materials and workmanship, supporting confidence in this radiator’s reliability for Honda CR-V applications.
