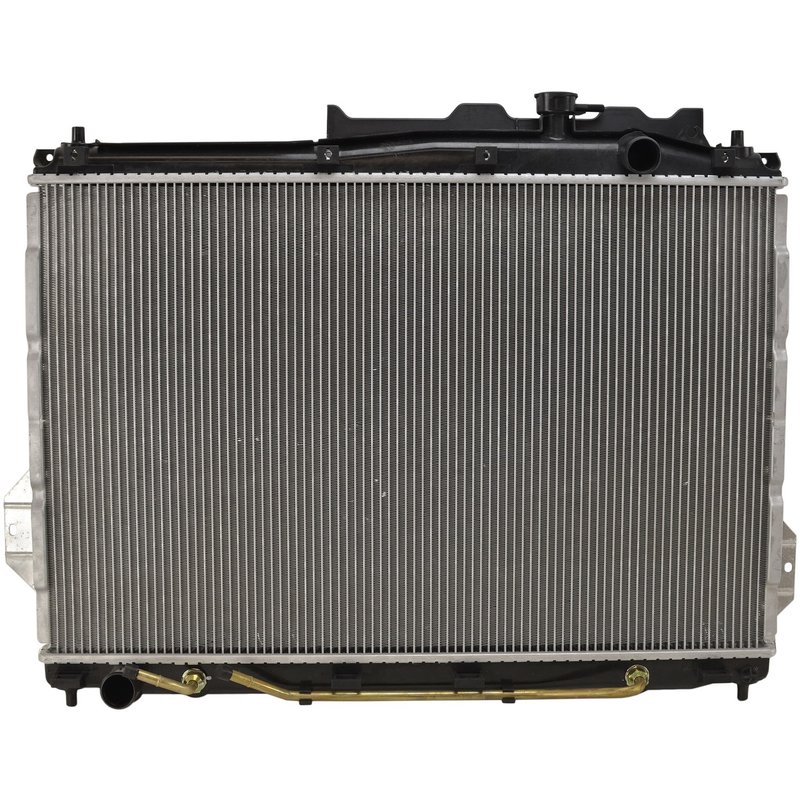

One Stop Solutions 2959 Radiator

Reliable Radiator Replacement for Hyundai Veracruz

The One Stop Solutions radiator part number 2959 is designed specifically for Hyundai Veracruz models, providing a direct fit replacement that supports your vehicle's cooling system. Engineered with quality materials and enhanced design features, this radiator ensures consistent engine temperature regulation and transmission oil cooling.

Key Features of One Stop Solutions Radiator 2959

• Hassle free installation with drop-in fit, form, and function
• OE performance and exceptional quality standards
• Engineering enhancements for improved cooling efficiency and extended service life
• Premium grade core, headers, tanks, and fins constructed from plastic and PA materials
• Includes concentric transmission oil cooler with 7/8 inch diameter fittings
• Core dimensions: 18 1/8" height, 28 3/8" width, and 11/16" thickness
• Downflow design with one core row for effective heat dissipation
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Detailed Radiator Description

This radiator for Hyundai Veracruz features a downflow core measuring 18 1/8 inches in height and 28 3/8 inches in width, with a core thickness of 11/16 inch. The core is made from PA material, while the tanks are constructed from durable plastic, balancing weight and durability. The radiator includes a concentric transmission oil cooler with a 7/8 inch diameter and fittings spaced 17 5/16 inches apart, supporting transmission fluid temperature regulation. Both inlet and outlet diameters are 1 3/8 inches, with header lengths of 29 1/16 inches and widths of 1 15/16 inches, ensuring compatibility with Hyundai Veracruz cooling system specifications. This radiator does not include an engine oil cooler or cap.

Common Issues Addressed by This Radiator

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from faulty or missing transmission oil cooler
• Leaks caused by cracked plastic tanks or worn seals
• Reduced cooling efficiency from corrosion or bent fins
• Failure of original radiator components leading to engine temperature fluctuations

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2959 is straightforward due to its drop-in design tailored for Hyundai Veracruz vehicles. Ensure all fittings and hoses are properly connected and torqued to factory specifications. Verify the transmission oil cooler lines are securely attached to prevent leaks. Since the radiator does not include a cap, reuse the existing cap or source a compatible replacement. Always inspect the cooling system for any additional worn components during installation.

Quality Assurance and Testing

Each radiator undergoes rigorous testing up to three times during production to verify leak-free performance and structural integrity. Components are assembled and torqued to meet factory specifications, ensuring reliable operation. The product is engineered with enhancements to address original design weaknesses, contributing to longer service life and consistent cooling performance in Hyundai Veracruz vehicles.
