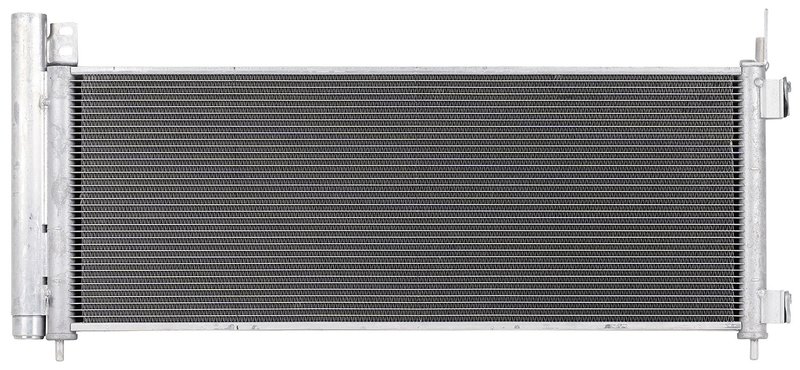

One Stop Solutions 30027 A/C Condenser

OE-Style A/C Condenser for Toyota RAV4

Restore proper air conditioning performance with this One Stop Solutions A/C condenser, part number 30027. It is built for direct replacement use on select Japan-built Toyota RAV4 models and includes the receiver drier for a cleaner, more complete condenser assembly.

Compatible with 2016-2018 Toyota RAV4, Japan Built, this condenser uses block inlet and outlet fittings and a parallel-flow core layout to support efficient refrigerant heat transfer. The 30027 condenser is a practical choice when replacing a leaking, damaged, or restricted condenser on a Toyota RAV4.

Key Features

• Brand: One Stop Solutions
• Part number: 30027
• Part type: A/C condenser
• Parallel-flow core design
• Core dimensions: 27 5/8 in. length, 10 5/16 in. width, 13/16 in. thickness
• Block fitting inlet and outlet connections
• Receiver drier included
• Oil cooler not included

Detailed Description

This A/C condenser is engineered for the 2016-2018 Toyota RAV4, Japan Built application and is sized to match the listed core dimensions for proper fitment in the HVAC system. The parallel-flow construction helps move refrigerant through the condenser efficiently, while the block-style fittings support a direct connection to the vehicle’s A/C lines. If you are replacing a damaged condenser on a Toyota RAV4, part number 30027 provides the core components needed for a straightforward condenser replacement.

This part cross-references Toyota OE number TO3030328 for the same application.

Common Problems This Part Can Address

• Refrigerant leaks from a cracked or corroded condenser
• Poor A/C cooling caused by restricted condenser flow
• Physical damage from road debris or front-end impact
• Loss of system efficiency from a failing condenser core
• Service issues when replacing a condenser with worn fittings or connections

Installation Notes and Tips

Verify that your vehicle is a 2016-2018 Toyota RAV4, Japan Built model before ordering. Confirm the block fitting style and core dimensions against the original condenser, and inspect the A/C lines, seals, and mounting points during replacement. After installation, the system should be evacuated and recharged according to factory service procedures.

Quality Assurance

One Stop Solutions supplies replacement HVAC components for vehicle-specific applications, and this condenser is built around the listed fitment and dimensional specifications for the Toyota RAV4 platform.
