Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

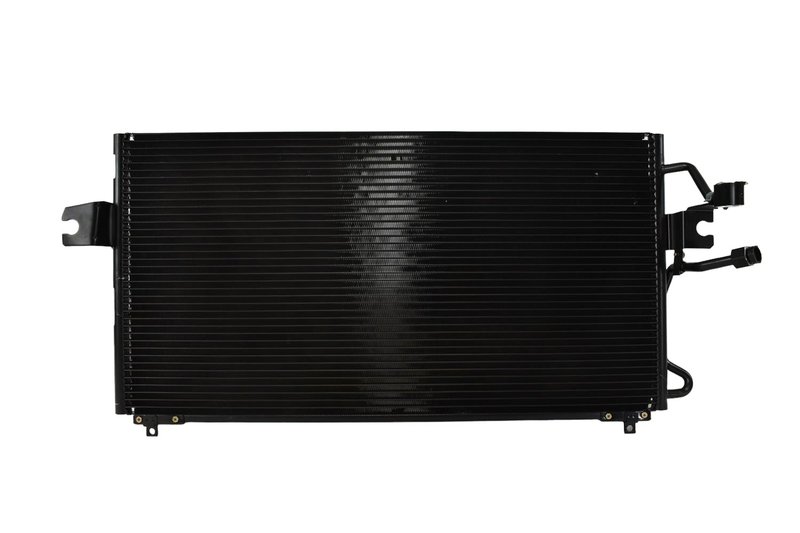

One Stop Solutions 3022 A/C Condenser
| Brand | One Stop Solutions 3022 |
|---|---|
| Core Thickness | 11/16 |
| Core Thickness | 18 |
| Core Width | 29 1/8 |
| Core Width | 739 |
| Core Length | 15 1/2 |
| Core Length | 394 |
| Core Length | Parallel flow |
| Inlet Fitting Type | O-ring |
| Outlet Fitting Type | O-ring |
| Drier Included | No |
| Oil Cooler Included | No |
| Fits | Mercury and Nissan · 8 vehicles |
OE form and function. Designed as a direct-style replacement with a dependable fit.
Aluminum construction. Improves heat transfer and dissipates heat efficiently.
Pressure tested. Individually tested for quality before it leaves the factory.
Cross-references APDI 7013022, Dixie Electric Ltd 10394 and NGK 8018 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style A/C Condenser for Quest and Villager
Restore proper air conditioning performance with this OSC Premium New Automotive A/C Condenser, part number 3022. Built for the 1999-2002 Nissan Quest and 1999-2002 Mercury Villager, it follows original equipment form and function for a direct replacement in the front HVAC system.
- OE-style design for factory-like fit and function
- Aluminum construction for efficient heat transfer
- Parallel flow core design
- Extruded condenser tubes for added structural integrity
- Louvered aluminum fins with furnace-brazed construction
- Individually pressure tested before release
- O-ring inlet and outlet fittings
- Multi-fit engineering without changing the installed appearance
Detailed Product Overview
The OSC Premium condenser, part number 3022, is engineered as a direct-fit replacement for the air conditioning system in the Nissan Quest and Mercury Villager. Its aluminum core measures 29 1/8 inches wide, 15 1/2 inches long, and 11/16 inch thick, using a parallel flow layout to support efficient refrigerant heat rejection. The condenser tubes are extruded for strength, while the fins and tubes are furnace-brazed to help maximize heat dissipation. This design supports consistent A/C system operation and maintains the original equipment look and mounting profile.
This part cross-references Spectra Premium 7-3022 and APDI 7013022 for the same application.
Common Problems This Part Helps Address
- Weak cabin cooling caused by a leaking or restricted condenser
- Reduced A/C efficiency from damaged or corroded condenser fins
- Refrigerant loss from cracked or compromised condenser tubes
- Improper fit after replacing a failed factory condenser
- Air conditioning performance issues in 1999-2002 Nissan Quest and 1999-2002 Mercury Villager models
Installation Notes and Tips
Fits 1999-2002 Nissan Quest, N/A. Fits 1999-2002 Mercury Villager, N/A. Verify O-ring connections, line routing, and condenser dimensions before installation. Replace any contaminated refrigerant system components as needed and evacuate the system before recharging to factory specifications.
Quality Assurance
Each condenser is individually pressure tested for quality control. The aluminum construction, brazed core design, and OE-style configuration are intended to support dependable installation and consistent heat exchange performance.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2002 | Mercury | Villager | 3.3L | V6 | — |
| 2002 | Nissan | Quest | 3.3L | V6 | — |
| 2001 | Mercury | Villager | 3.3L | V6 | — |
| 2001 | Nissan | Quest | 3.3L | V6 | — |
| 2000 | Mercury | Villager | 3.3L | V6 | — |
| 2000 | Nissan | Quest | 3.3L | V6 | — |
| 1999 | Mercury | Villager | 3.3L | V6 | — |
| 1999 | Nissan | Quest | 3.3L | V6 | — |
| No rows match your filter. | |||||
