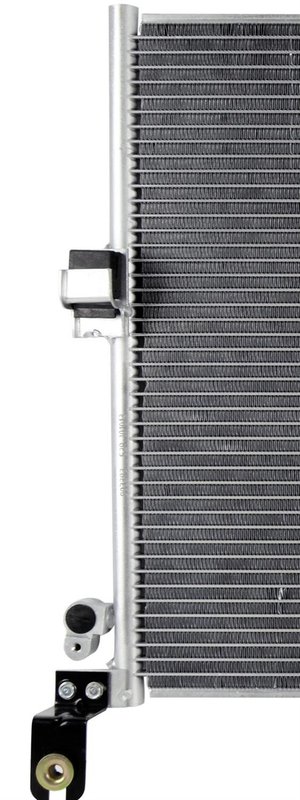

One Stop Solutions 3393 A/C Condenser

OE-Style A/C Condenser for Tacoma

This One Stop Solutions A/C condenser is built for 2005-2012 Toyota Tacoma applications and follows original equipment form and function. Part number 3393 is engineered with aluminum construction to support efficient heat transfer and a clean OE-style fit in the engine bay.

Designed for Tacoma owners replacing a leaking, damaged, or inefficient condenser, this unit uses a parallel flow layout with block inlet and outlet fittings. The result is a direct-fit style replacement for Toyota Tacoma A/C service, with attention to structural integrity and cooling performance.

Key Features

• Designed to Original Equipment form and function
• Aluminum construction for heat transfer efficiency
• Parallel flow core design
• Extruded condenser tubes for structural integrity
• Louvered aluminum fins and tubes joined through furnace brazing
• Individually pressure tested before shipment
• Engineered for multi-fit without changing the look or fit
• Includes drier
• Block fitting inlet and outlet

Detailed Description

One Stop Solutions part number 3393 is a premium new automotive A/C condenser designed for 2005-2012 Toyota Tacoma models. It features a 13/16 in. core thickness, 22 1/4 in. core width, and 18 1/8 in. core length, with a parallel flow configuration that supports efficient refrigerant cooling. The aluminum core, extruded tubes, and furnace-brazed fin construction are used to improve durability and heat dissipation while maintaining OE-style packaging.

This condenser is built for Tacoma owners who need a replacement that matches the original layout and connection style. It cross-references Spectra Premium 7-3393 for the same application.

Common Repair Reasons

• Leaking condenser from corrosion or impact damage
• Weak A/C cooling performance at idle or in traffic
• Restricted refrigerant flow from internal damage
• Visible fin damage affecting heat exchange
• Failed condenser after front-end repair

Installation Notes

Compatible With 2005-2012 Toyota Tacoma, N/A. Verify block fitting alignment, mounting points, and system cleanliness before installation. Replace contaminated refrigerant oil as needed, evacuate the system, and pressure test after installation to confirm leak-free operation. Part number 3393 is supplied with the drier included and is intended for straightforward A/C condenser replacement service.

Quality Assurance

Each condenser is individually pressure tested to help confirm integrity before use. The design follows OE-style form and function, with aluminum construction and brazed joints selected for consistent heat dissipation and dependable fitment on Toyota Tacoma applications.
