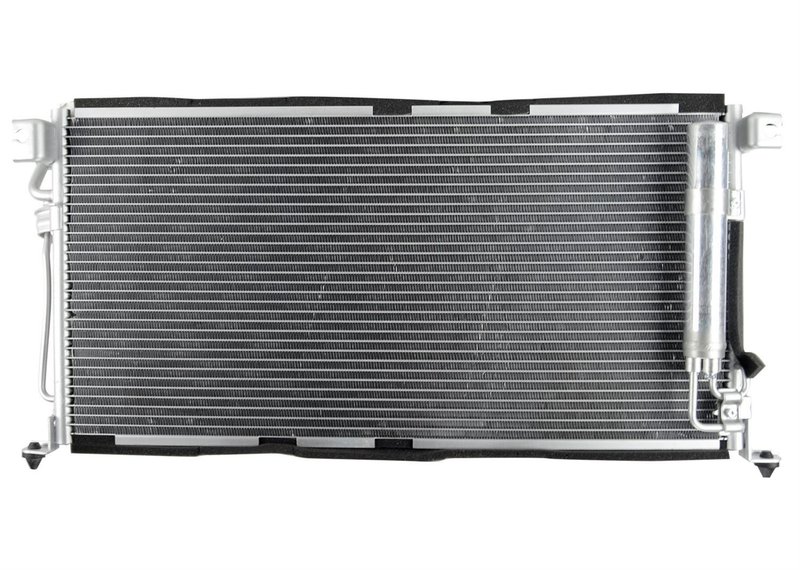

One Stop Solutions 3398 A/C Condenser

A/C Condenser for Mitsubishi Lancer

Restore A/C system heat exchange with this One Stop Solutions A/C condenser, part number 3398. It is built to OE form and function for 2003-2006 Mitsubishi Lancer applications and uses aluminum construction to support efficient refrigerant cooling.

• Designed to Original Equipment form and function
• Aluminum core construction for efficient heat transfer
• Extruded condenser tubes for structural integrity
• Louvered aluminum fins with furnace-brazed tube bonding
• Individually pressure tested before release
• Multi-fit design for proper appearance and fit
• Block fitting inlet and outlet connections
• Drier included

Detailed Product Overview

The One Stop Solutions 3398 condenser is engineered for the 2003-2006 Mitsubishi Lancer and follows the layout of the original unit for a direct replacement approach. Its parallel-flow design, aluminum core, and brazed fin-and-tube construction are intended to improve heat dissipation while maintaining the correct fit in the vehicle’s HVAC system. Core dimensions measure 28 1/4 inches wide, 13 11/16 inches long, and 5/8 inch thick, with block fitting inlet and outlet connections.

This part cross-references Four Seasons 35541 for the same application. The 3398 condenser is also listed with interchange references 7812A049, 1040453, 7013398, and MI3030169.

What This Part Helps Address

• Weak A/C cooling performance from a leaking or restricted condenser
• Refrigerant loss caused by damaged condenser tubes or fittings
• Heat transfer problems that reduce cabin cooling efficiency
• Fitment issues when replacing a worn OE-style condenser on a Mitsubishi Lancer
• Corrosion or physical damage to the front-mounted condenser assembly

Installation Notes and Tips

Verify the block fitting style, core dimensions, and vehicle application before installation. Replace any contaminated refrigerant oil and inspect adjacent A/C components for debris or damage after condenser failure. Because the unit is pressure tested, it arrives ready for system integration, but the full A/C system should still be evacuated, leak-checked, and recharged according to factory service procedures.

Quality Assurance

Each condenser is individually pressure tested and built with aluminum construction, furnace-brazed joints, and extruded tubes to support consistent performance. The included drier adds convenience for service replacement on 2003-2006 Mitsubishi Lancer A/C repairs.
