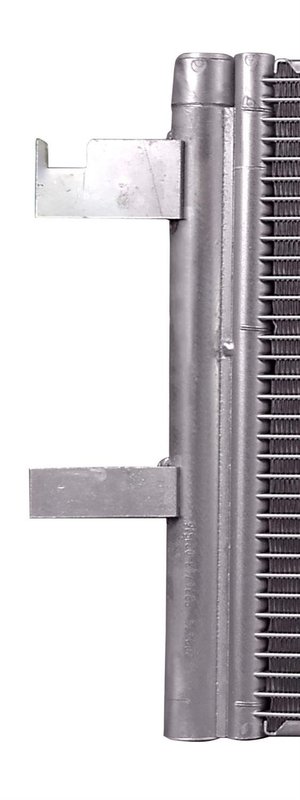

One Stop Solutions 3474 A/C Condenser

OE-Style A/C Condenser for Select GM Vehicles

One Stop Solutions Part Number 3474 is a premium new A/C condenser built to match original equipment form and function. It is designed for select Chevrolet Impala, Chevrolet Monte Carlo, Pontiac Grand Prix, Buick LaCrosse, Buick Allure, and Chevrolet Impala Limited applications, with aluminum construction for efficient heat transfer and dependable cooling performance.

• Aluminum construction for efficient heat dissipation
• Parallel flow condenser design
• Extruded condenser tubes for structural integrity
• Louvered aluminum fins bonded with furnace-brazing
• Individually pressure tested before release
• Multi-fit engineering for proper appearance and fit
• Drier included
• Inlet fitting type: block fitting
• Outlet fitting type: tube

Detailed Product Overview

This A/C condenser is engineered as an OE-style replacement for vehicles that need reliable refrigerant cooling and stable system performance. Core dimensions measure 26 3/16 inches wide, 13 7/16 inches long, and 5/8 inch thick, with a parallel flow layout that supports efficient heat transfer in the HVAC system. Part 3474 is built with aluminum tubes and fins to help dissipate heat effectively while maintaining the correct fit and appearance for the application.

Compatible With 2014-2016 Chevrolet Impala Limited, 2008-2009 Buick Allure, 2008-2009 Buick LaCrosse, 2006-2009 Chevrolet Impala, 2005-2008 Pontiac Grand Prix, and 2006-2007 Chevrolet Monte Carlo. This part cross-references APDI 7013474 for the same application.

Common Problems This Part Can Address

• Loss of A/C cooling caused by a leaking or damaged condenser
• Restricted refrigerant flow from internal condenser damage
• Heat transfer issues that reduce cabin cooling performance
• Corrosion or physical damage to the original condenser core
• Fitment concerns when replacing a worn OE condenser

Installation Notes

Verify inlet and outlet fitting types before installation: block fitting inlet and tube outlet. Confirm condenser dimensions and vehicle-specific HVAC configuration prior to replacement. Inspect related A/C system components, flush the system as required, and evacuate and recharge the refrigerant system according to factory service procedures after installation.

Quality Assurance

Each condenser is individually pressure tested to help confirm integrity before use. The furnace-brazed aluminum construction and OE-style engineering are intended to support consistent fit and heat dissipation in the listed Chevrolet, Pontiac, and Buick applications.
