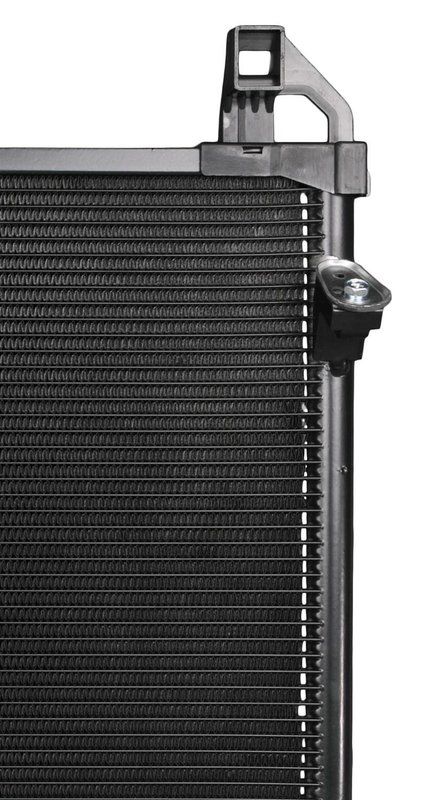

One Stop Solutions 3580 A/C Condenser

Overview of One Stop Solutions A/C Condenser 3580

The One Stop Solutions A/C Condenser part number 3580 is engineered to meet original equipment standards for Scion xD and Toyota Yaris models. Designed with precise core dimensions and fittings, this condenser ensures reliable air conditioning performance and efficient cooling.

• Core thickness: 16 mm (5/8 inch)
• Core width: 543 mm (21 3/8 inches)
• Core length: 336 mm (13 1/4 inches), parallel flow design
• Inlet and outlet block fittings included
• Includes drier for moisture removal
• Features 4-plate stainless steel coolers matching OEM specifications

Technical Details and Design Features

This A/C condenser features a parallel flow core with a thickness of 16 millimeters, providing efficient heat exchange for the vehicle's air conditioning system. The core width of 543 millimeters and length of 336 millimeters are designed to fit the HVAC system of Scion xD and Toyota Yaris models precisely. Both inlet and outlet connections use block fittings, simplifying installation and ensuring a secure seal. The inclusion of a drier helps maintain system integrity by removing moisture and contaminants. The 4-plate stainless steel cooler design aligns with OEM standards, supporting durability and corrosion resistance.

Compatible Vehicles and Applications

This condenser is compatible with the following vehicles:

• Scion xD
• Toyota Yaris

It is intended for use in the vehicle's HVAC system to replace a faulty or inefficient A/C condenser, restoring proper cooling performance.

Common Issues Addressed by This A/C Condenser

• Reduced cooling efficiency due to clogged or damaged condenser core
• Leaks in the condenser causing refrigerant loss
• Corrosion or physical damage to the condenser fins or plates
• Failure of OEM condenser leading to inconsistent air conditioning output
• Moisture contamination in the A/C system affecting performance

Installation Notes and Tips

When installing the One Stop Solutions A/C Condenser 3580, ensure the following:

• Verify compatibility with your Scion xD or Toyota Yaris model year and HVAC system
• Use the included fittings and hardware for a secure connection
• Replace the drier as included to maintain system moisture control
• Inspect and clean surrounding components to prevent future issues
• Follow manufacturer torque specifications for fittings and mounting points

Quality Assurance and Warranty

One Stop Solutions designs this A/C condenser to meet or exceed OEM form and function standards. The product includes all necessary fittings and hardware for installation. While specific warranty details are not provided, One Stop Solutions products typically undergo quality control to ensure reliability and durability in automotive HVAC applications.
