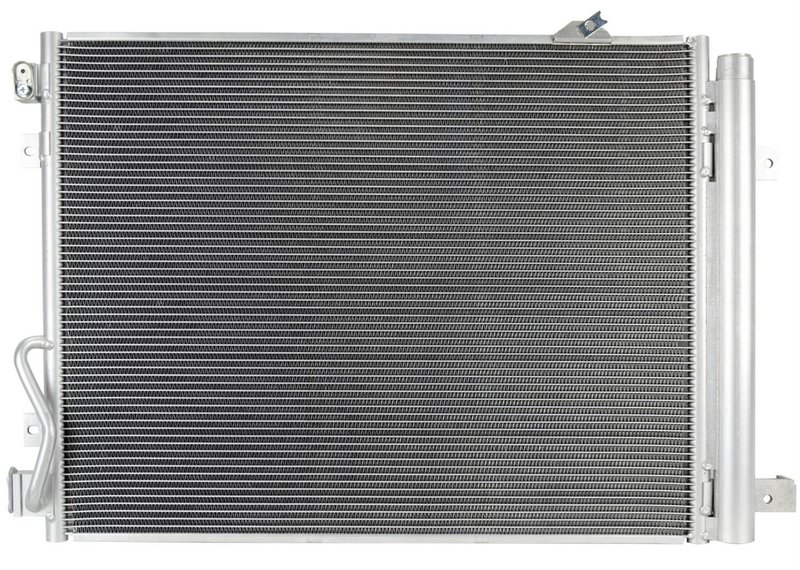

One Stop Solutions 3695 A/C Condenser

OE-Style A/C Condenser for Kia Sorento and Borrego

This One Stop Solutions A/C condenser is built for OE form and function, with aluminum construction that supports efficient heat transfer and a direct-fit layout for the listed Kia applications. Part number 3695 is engineered for the 2007-2009 Kia Sorento and 2009-2010 Kia Borrego, making it a focused replacement for common condenser service needs.

Key Features

• Designed to OE form and function
• Aluminum core construction for heat transfer efficiency
• Parallel flow condenser design
• Extruded condenser tubes for structural integrity
• Louvered aluminum fins with furnace-brazed tube bonding
• Individually pressure tested before release
• Block fitting inlet and outlet connections
• Drier included
• Core dimensions: 16 mm thickness, 23 3/8 in. width, 17 7/8 in. length

Detailed Description

One Stop Solutions part number 3695 is a premium new automotive A/C condenser built for the 2007-2009 Kia Sorento and 2009-2010 Kia Borrego. It uses an aluminum parallel-flow core with extruded tubes and brazed fins to support efficient refrigerant heat rejection and consistent system performance. The block fitting inlet and outlet layout matches the listed applications, and the unit is pressure tested for fit and function before shipment. This condenser cross-references Spectra Premium 7-3695 and other listed OE-style numbers for the same application.

Common A/C System Issues This Part Addresses

• Loss of cooling performance from a leaking or damaged condenser
• Restricted refrigerant flow caused by internal condenser blockage
• Physical damage from road debris or front-end impact
• Corrosion or fatigue at the condenser core or fittings
• Uneven A/C operation in Kia Sorento and Kia Borrego models with failed condenser assemblies

Installation Notes and Tips

Verify the block fitting connection style, core dimensions, and vehicle application before installation. Replace contaminated refrigerant system components as needed and evacuate the system properly after installation. Because the drier is included, confirm the rest of the A/C circuit is clean and free of debris before charging. This part number 3695 is listed for 2007-2009 Kia Sorento and 2009-2010 Kia Borrego, so match the vehicle year and configuration to the catalog fitment.

Quality Assurance

This condenser is individually pressure tested and built with furnace-brazed aluminum construction to support consistent sealing and heat dissipation. The design follows OE-style form and function requirements for the listed Kia Sorento and Borrego applications.
