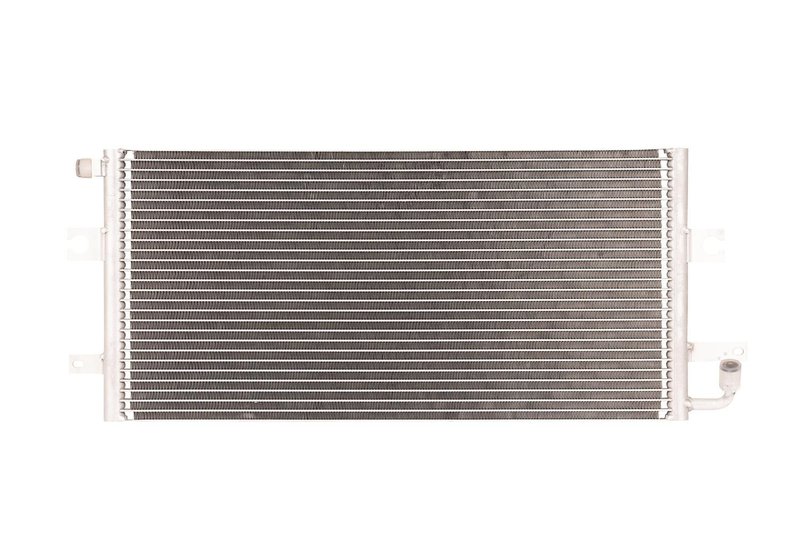

One Stop Solutions 3931 A/C Condenser

OE-Style A/C Condenser for Toyota Pickup

This One Stop Solutions A/C condenser is built for 1984-1988 Toyota Pickup applications and follows original equipment form and function. Part number 3931 is a parallel-flow condenser with aluminum construction, threaded inlet and outlet fittings, and a core designed for efficient heat transfer in the Toyota Pickup HVAC system.

Key Features

• Designed to OE form and function for direct replacement use
• Parallel-flow aluminum construction for efficient heat dissipation
• Extruded condenser tubes for structural integrity
• Louvered aluminum fins bonded with furnace-brazed construction
• Threaded inlet and outlet fittings
• Core dimensions: 23 1/16 in. length, 10 11/16 in. width, 11/16 in. thickness
• Core size listed as 26 mm industry standard
• Part number 3931

Detailed Description

One Stop Solutions part number 3931 is a premium new A/C condenser engineered for the 1984-1988 Toyota Pickup. It uses an aluminum parallel-flow design to promote heat transfer efficiency, while the extruded tubes and furnace-brazed fins help maintain core strength and thermal performance. The threaded inlet and outlet fittings support a straightforward condenser replacement in the Toyota Pickup cooling circuit.

This condenser is built to match OE-style fit and function, with multi-fit engineering that preserves the look and installation profile of the original unit. Part number 3931 is a practical choice when replacing a leaking, restricted, or damaged Toyota Pickup condenser.

This part cross-references 7-3931 and 600044 for the same application.

What It Helps Address

• Refrigerant loss caused by a leaking condenser core
• Reduced A/C cooling from restricted airflow through the condenser
• Physical damage to the condenser from road debris or corrosion
• Weak heat rejection that can affect cabin cooling performance
• Fitment issues when replacing an OE-style Toyota Pickup condenser

Installation Notes and Tips

Verify inlet and outlet thread style before installation and compare the condenser dimensions to the removed unit. Inspect the A/C system for contamination, damaged seals, or debris before charging the system. For best results, replace any worn sealing components and evacuate and recharge the system according to factory service procedures.

Quality Assurance

This condenser is individually pressure tested before release. Its aluminum construction, brazed fin-and-tube assembly, and OE-style engineering are intended to support consistent fit and thermal performance in 1984-1988 Toyota Pickup applications.
