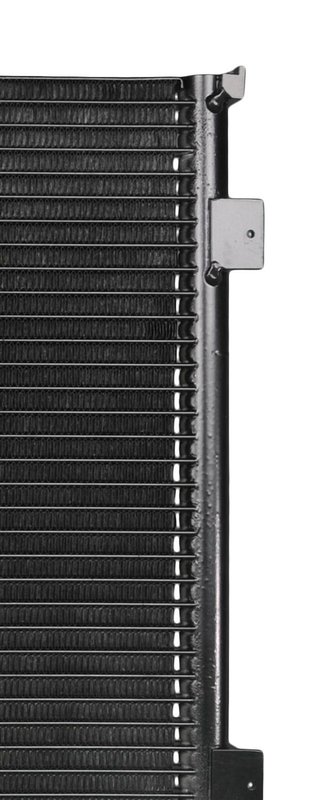

One Stop Solutions 4560 A/C Condenser

Reliable A/C Condenser for Chevrolet, GMC, and Oldsmobile Vehicles

The One Stop Solutions A/C Condenser part number 4560 is designed to provide a direct replacement for select Chevrolet, GMC, and Oldsmobile models. Engineered to meet original equipment specifications, this condenser supports efficient air conditioning performance in vehicles such as the Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada.

• Drop-in fit, form, and function for easy installation
• Core thickness of 5/8 inch (16 mm) for optimal heat exchange
• Core dimensions: 27 3/16 inches wide by 14 3/16 inches long
• Parallel flow core design enhances cooling efficiency
• Threaded inlet and outlet fittings for secure connections
• Constructed with premium grade materials for durability
• Improves longevity of high mileage vehicles

Technical Specifications and Features

This A/C condenser features a core thickness of 5/8 inch (16 mm), providing a balance between compact size and effective heat dissipation. The core width measures 27 3/16 inches (690 mm), and the core length is 14 3/16 inches (360 mm), designed to fit precisely within the HVAC system of compatible vehicles. The parallel flow core design allows refrigerant to flow efficiently, improving cooling performance and system reliability. Both inlet and outlet fittings use threaded connections, ensuring a secure and leak-resistant installation. The condenser is manufactured using premium materials to withstand vibration, environmental stress, and thermal cycling, which contributes to extended service life.

Compatible Vehicles and Applications

This condenser is compatible with a range of Chevrolet, GMC, and Oldsmobile models, including:

• Chevrolet Blazer
• GMC Jimmy
• Oldsmobile Bravada
• Chevrolet S10
• GMC Sonoma

Part number 4560 is intended for use in HVAC systems requiring a direct replacement condenser that maintains original design specifications.

Common Issues Addressed by This A/C Condenser

• Reduced cooling efficiency due to clogged or damaged condenser cores
• Leaks caused by corrosion or physical damage
• Failure from vibration or burst under pressure
• Original design failures leading to premature condenser wear
• Decreased system performance in high mileage vehicles

Installation Notes and Tips

Installation of the One Stop Solutions A/C Condenser 4560 should be performed by a qualified technician familiar with HVAC systems. Ensure the system is properly evacuated and recharged following condenser replacement. Threaded inlet and outlet fittings require appropriate sealing to prevent refrigerant leaks. Verify fitment compatibility with the vehicle make and model before installation. No drier or oil cooler is included with this condenser, so inspect and replace those components as necessary during service.

Quality Assurance and Warranty Information

One Stop Solutions manufactures this A/C condenser to meet industry standards for durability and performance. The product undergoes rigorous testing for cycle, vibration, burst, and environmental resistance to ensure reliability. While specific warranty details are not provided here, One Stop Solutions products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
