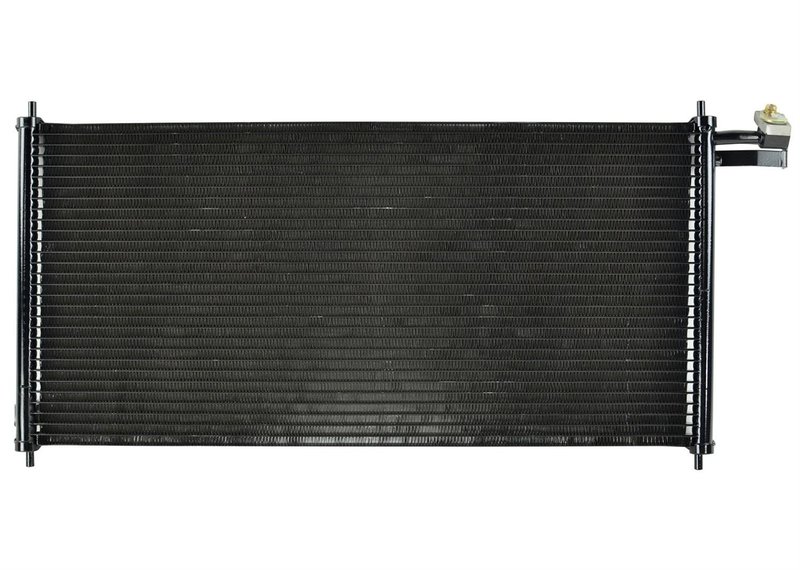

One Stop Solutions 4924 A/C Condenser

OE-Style A/C Condenser for Mazda Protege

Restore proper air conditioning performance with this OSC Premium New A/C condenser from One Stop Solutions. Part number 4924 is built to match original equipment form and function for select Mazda Protege applications, including factory air-equipped models.

• Aluminum construction for efficient heat transfer
• Parallel flow condenser design
• Extruded condenser tubes for added structural integrity
• Louvered aluminum fins bonded with furnace-brazed construction
• Individually pressure tested before release
• Block fitting inlet and outlet connections
• Engineered for multi-fit without changing the look or fit
• All necessary fittings and hardware are included

Detailed Product Overview

This A/C condenser is designed for 1999-2000 Mazda Protege models with factory installed air, and for 2001 Mazda Protege models built to 3/01 with factory installed air. The parallel flow core measures 25 3/8 inches wide, 11 7/16 inches long, and 5/8 inch thick, supporting efficient refrigerant cooling in a compact OE-style layout. Part number 4924 is also cross-referenced to Spectra Premium 7-4924 for the same application.

The aluminum core, extruded tubes, and brazed fin construction are used to promote heat dissipation and maintain structural consistency under normal system pressure. Block fittings at the inlet and outlet help match the original connection style on the listed Mazda Protege applications.

Common Problems This Part Can Help Address

• Weak cabin cooling caused by poor condenser heat rejection
• Refrigerant temperature issues from a damaged or restricted condenser
• Leaks at the condenser core or fittings
• Air conditioning performance loss after front-end impact damage
• Fitment concerns when replacing an OE-style Mazda Protege condenser

Installation Notes and Tips

Verify the vehicle build date before ordering: this condenser fits 1999-2000 Mazda Protege with factory installed air, and 2001 Mazda Protege built to 3/01 with factory installed air. Confirm block fitting alignment, core dimensions, and line routing against the original unit before installation. Replace any contaminated refrigerant system components as needed and evacuate and recharge the system according to factory service procedures.

Quality Assurance

Each condenser is individually pressure tested for quality control and built to OE-style form and function. The furnace-brazed aluminum construction is engineered for consistent heat transfer and dependable service in the listed Mazda Protege applications. Part number 4924 is manufactured as a new replacement condenser for direct-style service.
