Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

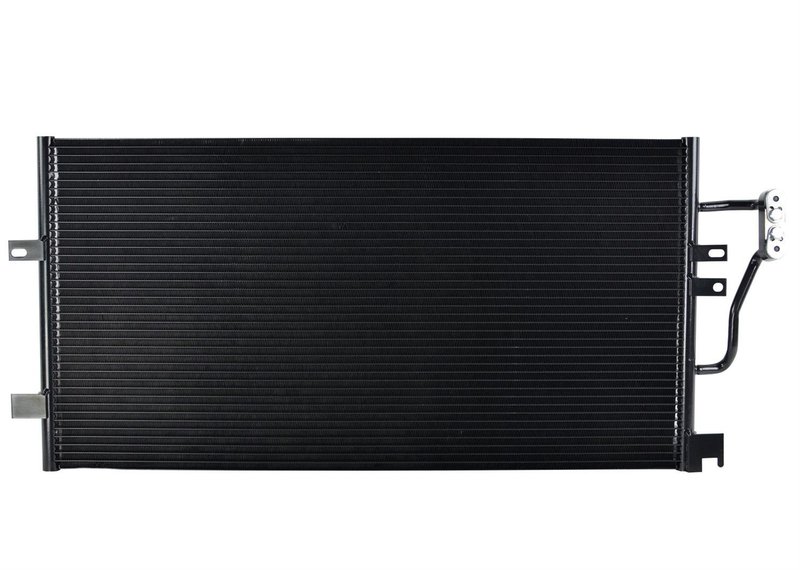

One Stop Solutions 4943 A/C Condenser
| Brand | One Stop Solutions 4943 |
|---|---|
| Core Thickness | 11/16 |
| Core Thickness | 18 |
| Core Width | 31 9/16 |
| Core Width | 802 |
| Core Length | 15 3/8 |
| Core Length | 391 |
| Core Length | Parallel flow |
| Inlet Fitting Type | Block fitting |
| Outlet Fitting Type | Block fitting |
| Drier Included | No |
| Oil Cooler Included | No |
| Fits | Cadillac · 7 vehicles |
OE form and function. Designed as a direct-style condenser replacement.
Aluminum construction. Improves heat transfer and dissipation efficiency.
Pressure tested. Individually checked for quality before shipment.
Cross-references APDI 7014943, 7-4943 and 200154 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style A/C Condenser for Cadillac Seville
This OSC Premium New Automotive Condenser is built for the 1998-2004 Cadillac Seville and follows original equipment form and function. Part number 4943 is engineered as a direct-fit A/C condenser replacement with aluminum construction for efficient heat transfer and dependable cooling performance.
- Designed to match original equipment form and function
- Aluminum parallel-flow condenser construction for efficient heat dissipation
- Extruded condenser tubes for added structural integrity
- Louvered aluminum fins and tubes joined with furnace-brazed construction
- Individually pressure tested for quality control
- Block fitting inlet and outlet connections
- Engineered for multi-fit without changing the look or fit
- Part number 4943
Detailed Product Overview
OSC part number 4943 is a premium new A/C condenser designed for the Cadillac Seville from 1998 through 2004. It uses aluminum parallel-flow construction with an 11/16-inch core thickness, 31 9/16-inch core width, and 15 3/8-inch core length to support efficient refrigerant cooling. The condenser is furnace-brazed for secure fin-to-tube bonding, and the extruded tubes add strength where the system needs it most. This part cross-references APDI 7014943 for the same application.
What This Condenser Helps Address
- Warm air from the vents caused by a failing condenser
- Refrigerant heat rejection problems in the A/C system
- Leaks related to damaged or corroded condenser construction
- Poor cooling performance on a 1998-2004 Cadillac Seville
- Fitment issues when replacing an OE-style condenser
Installation Notes
Fits 1998-2004 Cadillac Seville, N/A. Verify inlet and outlet block fittings, core dimensions, and mounting points before installation. The unit is supplied without a drier or oil cooler, so reuse or replace related components as needed during A/C service. Part number 4943 is also listed under interchange references 7-4943, 200154, 1040209, and 52380505.
Quality Assurance
Each condenser is individually pressure tested before release to help confirm integrity and leak resistance. OSC designs this condenser to OE-style form and function for consistent fit and cooling performance on Cadillac Seville applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Cadillac | Seville | 4.6L | V8 | N/A | — |
| 2003 | Cadillac | Seville | 4.6L | V8 | N/A | — |
| 2002 | Cadillac | Seville | 4.6L | V8 | N/A | — |
| 2001 | Cadillac | Seville | 4.6L | V8 | N/A | — |
| 2000 | Cadillac | Seville | 4.6L | V8 | N/A | — |
| 1999 | Cadillac | Seville | 4.6L | V8 | N/A | — |
| 1998 | Cadillac | Seville | 4.6L | V8 | N/A | — |
| No rows match your filter. | ||||||
