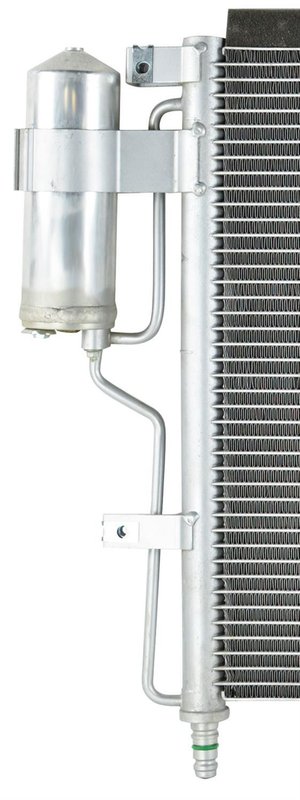

One Stop Solutions 4970 A/C Condenser

Overview of One Stop Solutions A/C Condenser 4970

The One Stop Solutions A/C Condenser part number 4970 is designed specifically for select Volvo models including the S60, S80, V70, and XC70. Engineered to meet the cooling demands of your vehicle's HVAC system, this condenser ensures efficient heat exchange and reliable air conditioning performance.

• Core Thickness: 13/16 inches (20 mm)
• Core Width: 26 15/16 inches (685 mm)
• Core Length: 17 inches (432 mm)
• Core Type: Parallel flow design for optimized cooling
• Inlet and Outlet Fitting Type: Block fitting
• Drier and Oil Cooler: Not included

Technical Details and Specifications

This A/C condenser features a parallel flow core construction, which enhances heat dissipation and improves overall system efficiency. The core thickness of 13/16 inches (20 mm) combined with a width of 26 15/16 inches (685 mm) and length of 17 inches (432 mm) provides a robust surface area for effective refrigerant cooling. Both the inlet and outlet utilize block fittings, ensuring secure and leak-resistant connections within the HVAC system. Note that this condenser does not include a drier or oil cooler, so those components must be sourced separately if required.

Compatible Volvo Models and Applications

This condenser is compatible with the following Volvo vehicles:

• Volvo S60
• Volvo S80
• Volvo V70
• Volvo XC70

When searching for a replacement A/C condenser for your Volvo S60, S80, V70, or XC70, part number 4970 from One Stop Solutions is engineered to match OEM specifications and fitment requirements.

Common Issues Addressed by This A/C Condenser

• Reduced air conditioning performance due to clogged or damaged condenser
• Leaks in the condenser causing refrigerant loss
• Overheating of the HVAC system during operation
• Corrosion or physical damage from road debris
• Inadequate cooling efficiency impacting cabin comfort

Installation Notes and Tips

• Ensure the condenser core dimensions match your vehicle’s specifications before installation
• Inspect and replace any associated seals or fittings to prevent leaks
• Flush the A/C system to remove contaminants prior to installing the new condenser
• Verify that the block fittings are properly secured to avoid refrigerant leaks
• Consult the vehicle’s service manual for torque specifications and installation procedures

Quality Assurance and Warranty Information

One Stop Solutions A/C Condenser part number 4970 is manufactured to meet industry standards for durability and performance. While specific warranty details may vary, this product is backed by quality controls to ensure reliable operation within the HVAC system of compatible Volvo models. For warranty coverage and claims, refer to the manufacturer’s documentation or contact authorized service providers.
