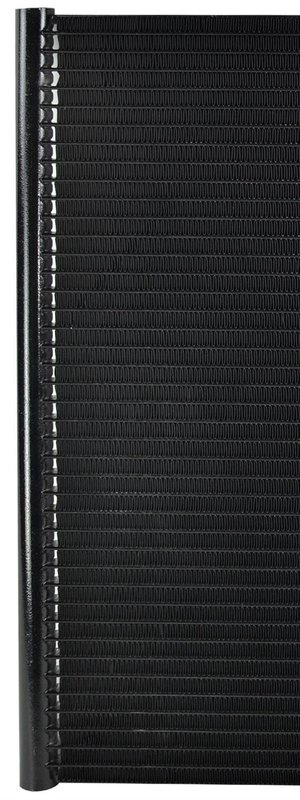

One Stop Solutions 4993 A/C Condenser

Overview of One Stop Solutions A/C Condenser 4993

The One Stop Solutions A/C Condenser part number 4993 is designed specifically for select BMW models including the 525i, 528i, 530i, 540i, M5, and Z8. This condenser is engineered to meet the cooling demands of your vehicle's HVAC system, ensuring efficient air conditioning performance.

• Core Thickness: 11/16 inch (18 mm)
• Core Width: 19 1/2 inches (495 mm)
• Core Length: 16 9/16 inches (421 mm)
• Core Type: Parallel flow design for optimized heat exchange
• Inlet and Outlet Fitting Type: Block fitting
• Drier and Oil Cooler: Not included

Detailed Product Description

This A/C condenser from One Stop Solutions features a parallel flow core, which enhances heat dissipation and improves overall air conditioning efficiency. The core dimensions—11/16 inch thickness, 19 1/2 inch width, and 16 9/16 inch length—are tailored to fit the HVAC system requirements of BMW 525i, 528i, 530i, 540i, M5, and Z8 models. Both inlet and outlet connections utilize block fittings, providing secure and reliable attachment points for refrigerant lines. Note that this condenser does not include a drier or oil cooler, so those components should be sourced separately if needed.

Compatible Vehicles and Applications

• BMW 525i
• BMW 528i
• BMW 530i
• BMW 540i
• BMW M5
• BMW Z8

This condenser is intended for use in the HVAC system to facilitate the transfer of heat from the refrigerant to the outside air, maintaining optimal cabin temperature and comfort.

Common Issues Addressed by This A/C Condenser

• Reduced cooling efficiency due to clogged or damaged condenser fins
• Leaks in the condenser causing refrigerant loss
• Overheating of the A/C system during operation
• Corrosion or physical damage from road debris
• Failure of the condenser leading to compressor strain

Installation Notes and Tips

When installing the One Stop Solutions A/C Condenser 4993, ensure that the block fittings are properly sealed to prevent refrigerant leaks. It is recommended to inspect and replace the drier and oil cooler separately if necessary, as these are not included with this condenser. Proper handling of the parallel flow core is important to avoid damage to the fins. Professional installation is advised to maintain system integrity and performance.

Quality Assurance and Warranty

One Stop Solutions manufactures this A/C condenser to meet OEM specifications for the listed BMW models. While specific warranty details are not provided, the product is built to deliver reliable performance within the vehicle’s HVAC system. For warranty information, please refer to the manufacturer’s guidelines or contact authorized service providers.
