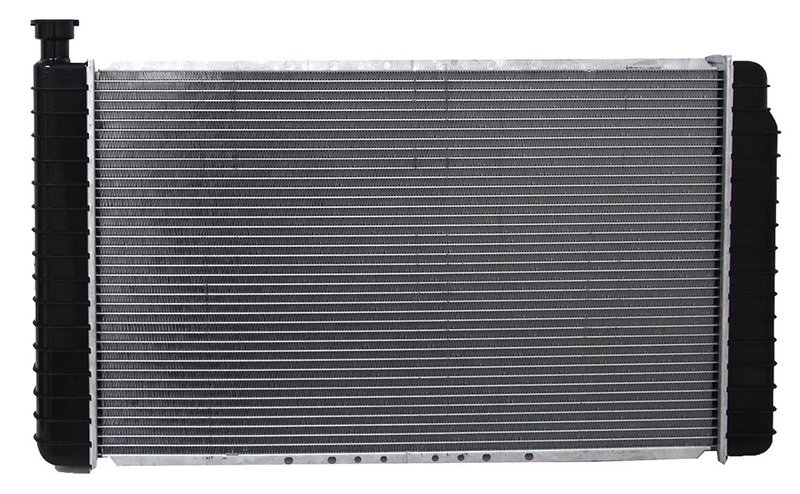

One Stop Solutions 622 Radiator

Overview of One Stop Solutions Radiator 622

The One Stop Solutions radiator part number 622 is engineered for reliable cooling performance in Chevrolet and GMC trucks, including C1500, C2500, C3500, and their Suburban variants. Designed with a crossflow core and integrated oil coolers, this radiator supports efficient engine and transmission temperature management.

• Hassle free installation with drop-in fit, form, and function
• OE performance with premium grade tubes, fins, headers, and plastic tanks
• Engineering enhancements improve cooling efficiency and extend service life
• Includes plated transmission and engine oil coolers with fittings spaced 11 1/2 inches apart
• Core dimensions: 28 1/4" height, 17 1/4" width, 1-1/4" thickness
• Crossflow design for optimized coolant flow and heat dissipation
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Detailed Radiator Specifications and Features

This radiator features a single-row core constructed from premium PA material, measuring 28 1/4 inches in height and 17 1/4 inches in width, with a thickness of 1-1/4 inches. The plastic tanks and headers are designed for durability and corrosion resistance. Both inlet and outlet headers measure 18 3/4 inches in length and 2 7/16 inches in width, with inlet and outlet diameters of 1 5/16 inches and 1 9/16 inches respectively. The crossflow core type enhances coolant circulation, improving heat exchange efficiency.

Included are plated transmission and engine oil coolers, each with fittings spaced 11 1/2 inches apart, supporting effective cooling of vital fluids. This radiator is compatible with Chevrolet and GMC models such as C1500, C1500 Suburban, C2500, C2500 Suburban, C3500, K1500, K1500 Suburban, K2500, K2500 Suburban, K3500, and P3500.

Common Applications and Problem Solving

• Replaces worn or leaking radiators in Chevrolet and GMC trucks
• Addresses overheating issues caused by inefficient cooling systems
• Resolves transmission fluid overheating with integrated transmission oil cooler
• Prevents engine oil temperature spikes with built-in engine oil cooler
• Eliminates coolant leaks from damaged or cracked radiator tanks

Installation Notes and Tips

Installation of the One Stop Solutions radiator 622 is straightforward due to its drop-in design. Ensure all fittings and hardware are included and properly torqued to factory specifications. Verify compatibility with your specific Chevrolet or GMC model before installation. It is recommended to flush the cooling system and inspect hoses and clamps during replacement to maintain optimal performance.

Quality Assurance and Warranty

Each radiator undergoes rigorous testing up to three times during production to ensure durability and performance. Components are assembled and torqued to meet factory standards. While specific warranty details are not provided, One Stop Solutions products are manufactured to meet OE quality requirements, supporting reliable operation in Chevrolet and GMC trucks.
