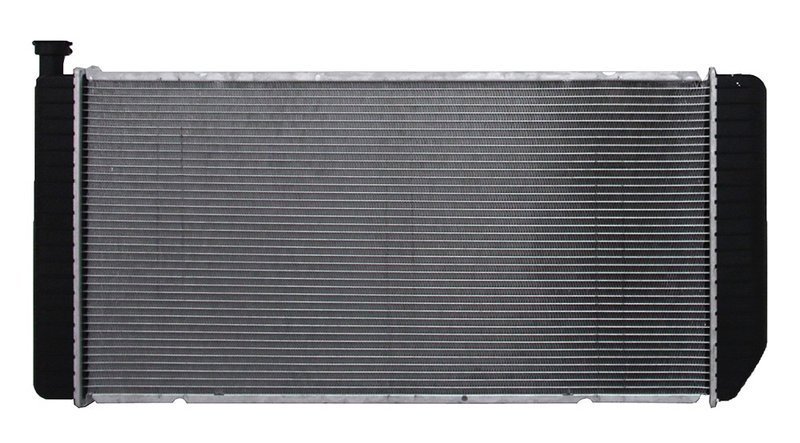

One Stop Solutions 624 Radiator

Overview of One Stop Solutions Radiator Part 624

The One Stop Solutions radiator, part number 624, is designed for reliable cooling performance in select Cadillac, Chevrolet, and GMC vehicles. Engineered with a crossflow design and integrated oil coolers, this radiator supports efficient engine and transmission temperature management for models like the Chevrolet Silverado and GMC Yukon.

• Hassle free installation with drop-in fit, form, and function
• O.E. performance and quality with premium grade materials
• Engineering enhancements for improved cooling and extended service life
• Includes transmission and engine oil coolers with plated construction
• Core dimensions: 34" height, 17 1/4" width, 2-3/16" thickness
• Plastic tanks and PA core material for durability
• Complete radiator tested up to three times during production

Detailed Radiator Specifications and Features

This radiator features a 2-row core with a height of 34 inches, width of 17 1/4 inches, and a thickness of 2-3/16 inches, constructed from PA core material and plastic tanks. The crossflow design optimizes coolant flow and heat dissipation. Both inlet and outlet headers measure 18 1/2 inches in length and 3 3/16 inches in width, with inlet and outlet diameters of 1 5/16 inches and 1 9/16 inches respectively. The radiator includes integrated plated transmission and engine oil coolers, each with fittings spaced 8 1/2 inches apart, enhancing overall cooling efficiency. All components are fitted and torqued to factory specifications to ensure proper operation and longevity.

Compatible Vehicles and Applications

This radiator is compatible with a range of Cadillac, Chevrolet, and GMC trucks and SUVs, including:

• Cadillac Escalade
• Chevrolet Blazer, C35, C1500, C1500 Suburban, C2500, C2500 Suburban, C3500, Silverado, Suburban 1500
• GMC K1500, K1500 Suburban, K2500, K2500 Suburban, K3500, Yukon

Common Issues Addressed by Radiator Part 624

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from faulty or missing oil cooler
• Coolant leaks from cracked plastic tanks or worn seals
• Reduced cooling efficiency from corrosion or bent fins
• Engine overheating caused by inadequate heat dissipation

Installation Notes and Tips

Installation of the One Stop Solutions radiator 624 is straightforward due to its drop-in design. Ensure all fittings and hoses are properly connected and torqued to factory specifications. Verify the transmission and engine oil cooler lines are securely attached to prevent leaks. Bleed the cooling system after installation to remove air pockets and maintain optimal coolant flow.

Quality Assurance and Warranty Information

Each radiator undergoes up to three rounds of testing during production to verify performance and durability. The use of premium grade tubes, fins, headers, and tanks contributes to consistent quality. While specific warranty details are not provided, the product is manufactured to meet or exceed original equipment standards, ensuring reliable operation in compatible Cadillac, Chevrolet, and GMC vehicles.
