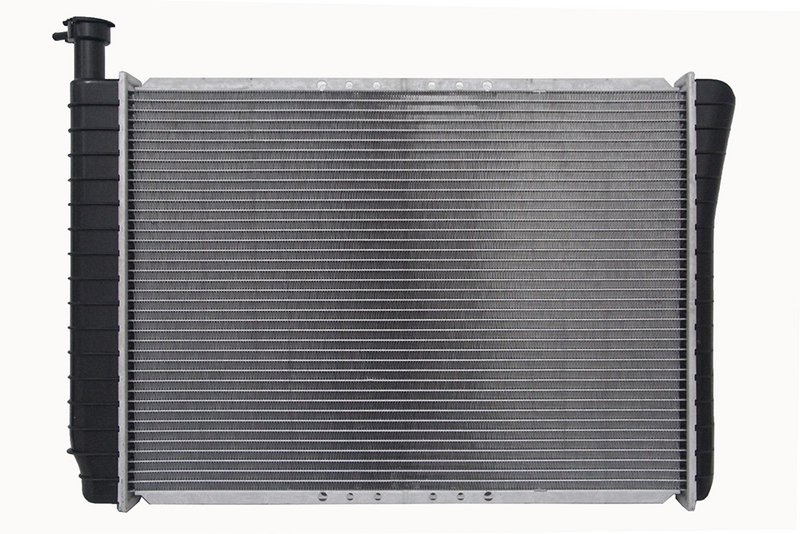

One Stop Solutions 924 Radiator

Overview of One Stop Solutions Radiator 924 for Chevrolet and GMC

The One Stop Solutions Radiator part number 924 is designed specifically for Chevrolet Astro and GMC Safari models. This radiator features a crossflow design with a single core row, engineered to provide reliable cooling performance and durability for your vehicle's engine and transmission.

• Hassle free installation for Chevrolet Astro and GMC Safari
• OE performance with enhanced cooling efficiency
• Premium grade core and tank materials for extended service life
• Includes concentric transmission oil cooler for integrated cooling
• Components fitted and torqued to factory specifications
• Drop-in fit, form, and function with all necessary fittings
• 100% tested up to three times during production for quality assurance
• Engineering improvements address original design weaknesses

Detailed Radiator Specifications and Features

This radiator features a core height of 23 5/8 inches, a core width of 17 1/4 inches, and a core thickness of 1 inch, providing an optimal surface area for heat dissipation. The core is constructed from premium PA material, while the tanks are made from durable plastic to resist corrosion and wear. The crossflow design enhances coolant flow efficiency, improving overall engine temperature regulation.

Both the inlet and outlet header lengths measure 18 3/4 inches, with widths of 2 7/16 inches, ensuring compatibility with the vehicle's cooling system. The inlet diameter is 1 5/16 inches and the outlet diameter is 1 9/16 inches, matching factory specifications for a seamless fit.

Notably, this radiator includes a concentric transmission oil cooler with a diameter of 1 1/4 inches and a fitting distance of 11 1/2 inches, providing integrated transmission fluid cooling. This feature helps maintain transmission performance and longevity. The radiator does not include an engine oil cooler or a cap.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiators in Chevrolet Astro and GMC Safari
• Resolves overheating caused by inefficient or clogged radiator cores
• Addresses transmission overheating with integrated transmission oil cooler
• Fixes coolant leaks from cracked plastic tanks or headers
• Improves cooling system performance after original design failures

Installation Notes and Tips

Installation of the One Stop Solutions Radiator 924 is straightforward due to its drop-in fit and factory-matched dimensions. Ensure all hoses and fittings correspond to the specified inlet and outlet diameters (1 5/16 inches and 1 9/16 inches respectively). Verify the transmission oil cooler connections align with the concentric cooler fittings spaced 11 1/2 inches apart. Follow vehicle manufacturer torque specifications when securing components to maintain system integrity.

Quality Assurance and Testing

Each radiator undergoes rigorous testing up to three times during production to ensure leak-free performance and durability. Components such as tubes, fins, headers, and tanks are manufactured from premium materials and assembled to meet or exceed factory standards. The product is engineered with enhancements to improve cooling efficiency and extend service life, addressing common issues found in original equipment radiators.
