One Stop Solutions 977 Radiator

Reliable Radiator Replacement for Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac

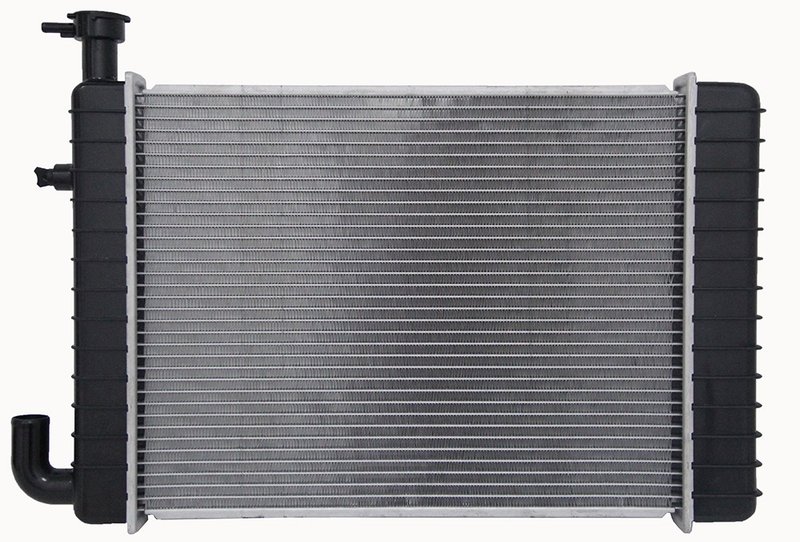

The One Stop Solutions radiator part number 977 is engineered to provide dependable cooling performance for select Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac models including Cavalier, Cimarron, Firenza, J2000, Skyhawk, and Sunbird. Designed as a direct replacement, this radiator supports engine efficiency and temperature regulation under various driving conditions.

• Hassle free installation with drop-in fit, form, and function
• OE performance with premium grade tubes, fins, headers, and plastic tanks
• Engineering enhancements improve cooling capacity and extend service life
• Components fitted and torqued to factory specifications for reliable operation
• Includes concentric engine oil cooler with 1 1/4 inch diameter
• Crossflow core design with 19 11/16 inch height and 15 1/16 inch width
• Core thickness of 1 inch and single core row for efficient heat dissipation
• 100% tested up to three times during production for quality assurance

Technical Specifications and Design Features

This radiator features a crossflow core constructed from premium PA material, measuring 19 11/16 inches in height, 15 1/16 inches in width, and 1 inch in thickness. The plastic tanks and headers are designed for durability and corrosion resistance. Both inlet and outlet headers measure 16 5/8 inches in length and 2 7/16 inches in width, with inlet and outlet diameters of 1 5/16 inches, ensuring compatibility with the vehicle’s cooling system. The included concentric engine oil cooler with fittings spaced 11 1/2 inches apart supports engine oil temperature regulation, enhancing overall engine performance. This radiator does not include a transmission oil cooler.

Compatible Vehicles and Applications

This radiator is compatible with the following makes and models:

• Buick: Skyhawk
• Cadillac: Cimarron
• Chevrolet: Cavalier
• Oldsmobile: Firenza, J2000
• Pontiac: Sunbird

It is designed to replace original equipment radiators in these vehicles, maintaining proper cooling system function and engine temperature control.

Common Issues Addressed by This Radiator

• Overheating due to radiator core damage or clogging
• Coolant leaks from cracked or worn plastic tanks
• Reduced cooling efficiency from corroded or bent fins
• Engine oil temperature regulation problems due to faulty oil cooler
• Failure of original radiator components causing engine overheating

Installation Notes and Tips

Installation of the One Stop Solutions radiator 977 is straightforward with its drop-in design. Ensure all fittings and hoses match the specified inlet and outlet diameters of 1 5/16 inches. Verify that the engine oil cooler fittings align with the 11 1/2 inch spacing. Use factory torque specifications when securing components to avoid leaks or damage. It is recommended to flush the cooling system before installation to prevent contamination and ensure optimal performance.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to verify performance and durability. Components are assembled and torqued to factory specifications to meet OE standards. The product includes engineering enhancements aimed at improving cooling efficiency and extending service life. Warranty details should be confirmed with the distributor or manufacturer.
