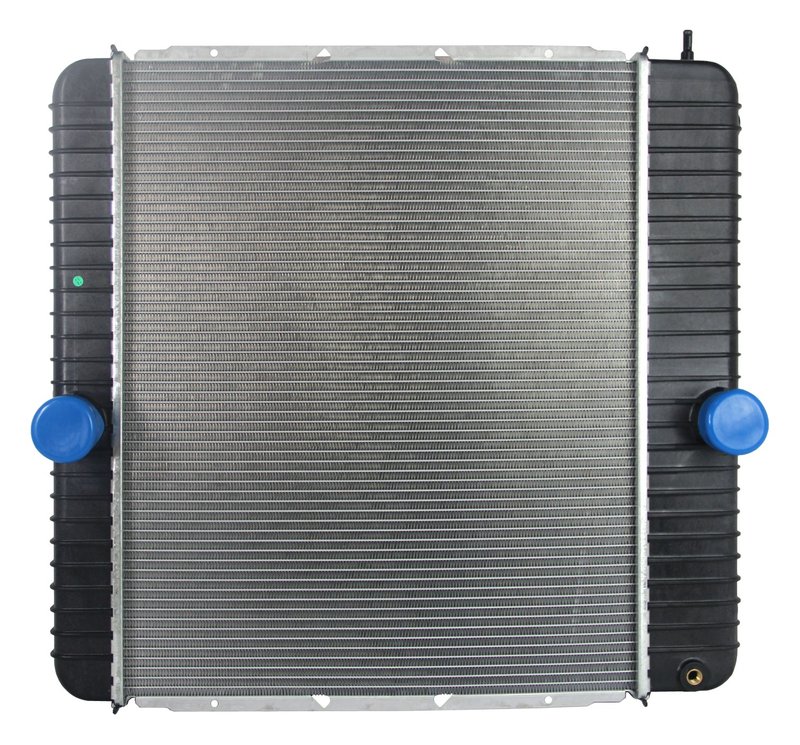

One Stop Solutions HD1136 Radiator

Overview of One Stop Solutions Radiator HD1136

The One Stop Solutions HD1136 radiator is engineered to provide reliable cooling performance for vehicles requiring precise fitment. Designed with a durable plastic aluminum core and dual-row construction, this radiator supports efficient heat dissipation and long-term durability.

• Core Height: 20-1/2 inches (522 mm)
• Core Width: 25-1/8 inches (638 mm)
• Core Thickness: 2-1/4 inches (56 mm)
• Core Material: Plastic aluminum
• Inlet and Outlet Diameter: 2-1/4 inches (57 mm)
• Inlet and Outlet Header Length: 25-11/16 inches
• Header Style: CSX4 with 4-crimp strips over the tabs
• Core Row Quantity: 2
• TOC Material: Stainless steel

Detailed Radiator Specifications and Design

The HD1136 radiator features a plastic aluminum core that balances weight and thermal conductivity, ensuring effective engine cooling. Its dual-row core design enhances coolant flow and heat exchange, suitable for vehicles that demand consistent temperature regulation. The core dimensions—20-1/2 inches in height, 25-1/8 inches in width, and 2-1/4 inches thick—are optimized for specific vehicle applications. Both inlet and outlet headers measure 25-11/16 inches in length with a 3-3/8 inch width, accommodating standard hose connections with 2-1/4 inch diameter ports. The CSX4 header style with 4-crimp strips provides secure sealing and structural integrity. Stainless steel TOC (top of core) material adds corrosion resistance to critical areas.

Compatible Vehicles and Common Applications

This radiator is compatible with select vehicle makes and models that require a radiator with these exact core dimensions and inlet/outlet specifications. It is commonly used in automotive cooling systems where replacement or upgrade of the radiator is necessary to maintain engine temperature control.

• Resolves overheating issues caused by radiator core damage or clogging
• Replaces leaking or cracked radiator components
• Improves cooling efficiency in vehicles with aging radiators
• Supports engine performance by maintaining optimal operating temperatures
• Addresses coolant flow restrictions due to damaged headers or cores

Installation Notes and Tips

Ensure compatibility by verifying core dimensions and inlet/outlet sizes against the vehicle’s original radiator specifications. Properly drain the cooling system before removal. Handle the radiator carefully to avoid damage to the plastic aluminum core and headers. Use appropriate tools to secure the radiator in place and reconnect all hoses and fittings to prevent leaks. Bleed the cooling system after installation to remove air pockets.

Quality Assurance and Warranty

The One Stop Solutions HD1136 radiator is manufactured to meet industry standards for durability and performance. The use of corrosion-resistant materials such as plastic aluminum core and stainless steel TOC enhances longevity. Warranty coverage details should be confirmed with the product documentation or supplier to ensure protection against manufacturing defects.
