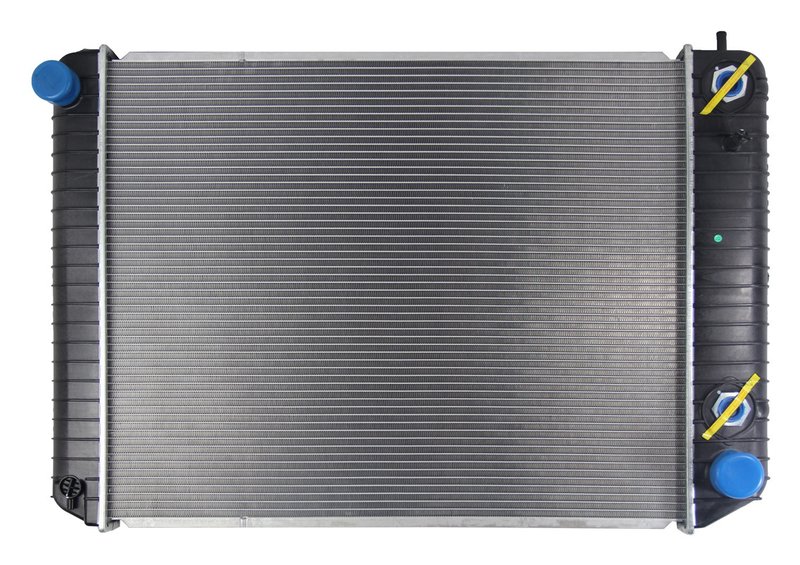

One Stop Solutions HD9120 Radiator

Overview of One Stop Solutions Radiator HD9120

The One Stop Solutions HD9120 radiator is engineered to provide reliable cooling performance for select vehicle applications. Designed with a plastic aluminum core and precise dimensions, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core Height: 31-7/16 inches (798 mm)
• Core Width: 25-1/2 inches (647 mm)
• Core Thickness: 1-3/8 inches (36 mm)
• Single core row design for effective cooling
• Inlet and outlet header lengths: 26-3/4 inches
• Inlet diameter: 2 inches (51 mm); Outlet diameter: 2-1/4 inches (51 mm)
• Header style: CSX4
• Core material: Plastic aluminum with stainless steel TOC

Detailed Radiator Specifications and Construction

The HD9120 radiator features a plastic aluminum core that balances durability with efficient heat transfer. Its single-row core design, measuring 31-7/16 inches in height and 25-1/2 inches in width, ensures sufficient surface area for cooling. The core thickness of 1-3/8 inches supports optimal coolant flow without compromising space. Both inlet and outlet headers measure 26-3/4 inches in length and 3 inches in width, accommodating standard hose connections. The inlet diameter is 2 inches, while the outlet diameter is slightly larger at 2-1/4 inches, facilitating proper coolant circulation. The CSX4 header style and stainless steel TOC material contribute to the radiator's structural integrity and corrosion resistance.

Applications and Common Issues Addressed

• Replacement for worn or leaking radiators in compatible vehicles
• Resolves engine overheating caused by inefficient cooling
• Addresses coolant leaks from damaged or corroded radiator cores
• Improves cooling system performance in vehicles with original equipment radiator failure
• Suitable for vehicles requiring specific core dimensions and header configurations

Installation Notes and Tips

Ensure compatibility with your vehicle’s make and model before installation. Verify hose diameters match the 2-inch inlet and 2-1/4-inch outlet sizes. Properly secure inlet and outlet headers to prevent leaks. Inspect surrounding cooling system components such as hoses and clamps during installation to maintain system integrity.

Quality Assurance and Warranty

One Stop Solutions manufactures the HD9120 radiator with quality materials including plastic aluminum core and stainless steel TOC for durability. While specific warranty details are not provided, the product is designed to meet industry standards for radiator performance and reliability.
