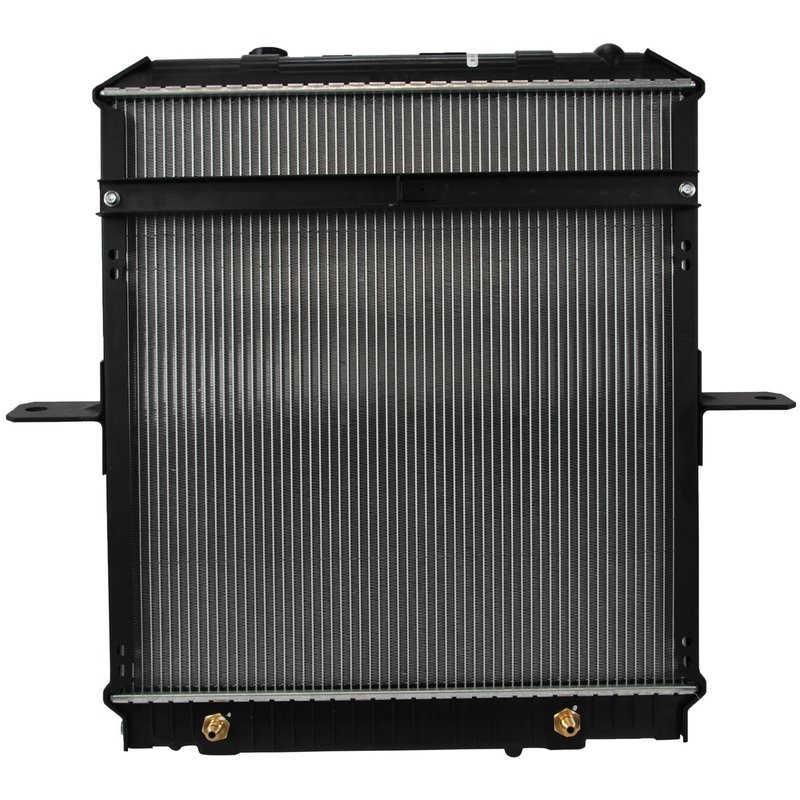

One Stop Solutions HD9217 Radiator

Overview of One Stop Solutions Radiator HD9217

The One Stop Solutions radiator HD9217 is engineered to provide reliable cooling performance for a range of vehicles. Designed with a plastic aluminum core and precise dimensions, this radiator supports efficient heat dissipation and durability in demanding automotive environments.

• Core Height: 24-7/16 inches (620 mm)
• Core Width: 23-1/8 inches (588 mm)
• Core Thickness: 1-1/4 inches (32 mm)
• Inlet and Outlet Diameter: 1-1/2 inches
• Inlet and Outlet Header Length: 24-1/8 inches
• Header Style: CSX4
• Core Material: Plastic aluminum
• TOC Material: Copper

Technical Specifications and Design Details

The HD9217 radiator features a plastic aluminum core that balances lightweight construction with effective thermal conductivity. The core dimensions—24-7/16 inches in height, 23-1/8 inches in width, and 1-1/4 inches thick—ensure adequate surface area for heat exchange. Both inlet and outlet headers measure 24-1/8 inches in length with a 2-3/8 inch width, designed in a CSX4 header style to optimize coolant flow. The 1-1/2 inch diameter inlet and outlet ports accommodate standard hose sizes for straightforward integration into compatible cooling systems. Copper TOC material enhances corrosion resistance and longevity.

Applications and Common Issues Addressed

• Replacement for worn or leaking radiators in compatible vehicle models
• Resolves overheating caused by inefficient heat dissipation
• Addresses coolant leaks from damaged or corroded radiator cores
• Improves engine cooling system performance in vehicles requiring specified core dimensions
• Suitable for vehicles needing a radiator with plastic aluminum core and copper TOC

Installation Notes and Tips

Ensure compatibility with your vehicle’s make and model before installation. Verify hose diameter matches the 1-1/2 inch inlet and outlet ports. Properly flush the cooling system prior to installation to prevent contamination. Tighten all connections to manufacturer torque specifications to avoid leaks. Inspect mounting points to confirm fitment with the 24-1/8 inch header lengths and overall radiator dimensions.

Quality Assurance and Warranty

One Stop Solutions manufactures the HD9217 radiator to meet industry standards for durability and performance. The use of plastic aluminum core and copper TOC materials supports corrosion resistance and extended service life. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage terms.
