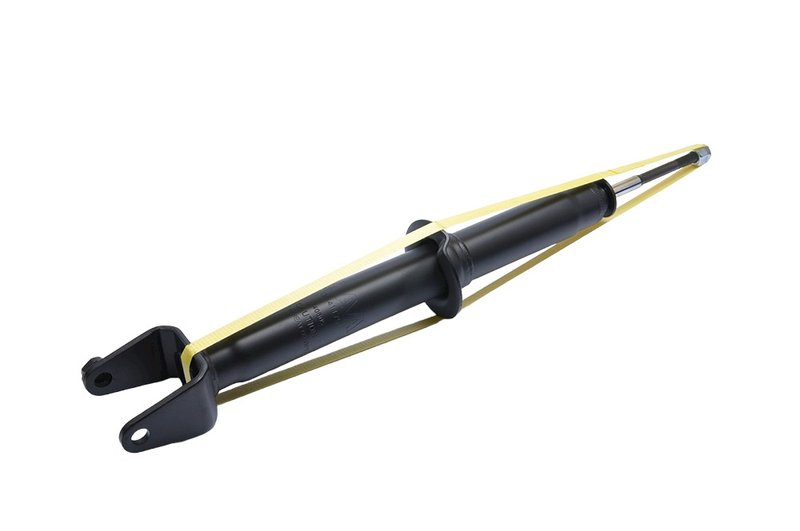

One Stop Solutions S341179 Suspension Strut - Rear
| Brand | One Stop Solutions S341179 |
|---|---|
| Position | Rear |
| Bump Stops Included | NO |
| Compressed Length | 17.87 |
| Compressed Length | 454 |
| Cover Included | NO |
| Extended Length | 24.09 |
| Extended Length | 612 |
| Lower Mount Type | link fork |
| Rebound Stop Included | YES |
| Stroke Length | 6.22 |
| Stroke Length | 158 |
| Upper Mount Type | bolt |
| Fits | Honda · 15 vehicles |
Link-fork lower mount. Bolt upper mount for a secure suspension strut fit.
Rebound stop included. Helps control extension for smoother suspension travel.
17.87 in. compressed length and 24.09 in. extended length.
Cross-references KYB 341179 for the same application. See all 1.
Rear Suspension Strut for Honda Prelude
This rear suspension strut is built for 1992-2001 Honda Prelude applications and matches the OE-style dimensions needed for proper rear suspension service. One Stop Solutions S341179 is a direct-fit replacement for the rear position, with mounting points and travel specs that align with the original setup.
Key Features
- Fits 1992-2001 Honda Prelude, rear
- Part number S341179 for easy identification
- Compressed length: 17.87 in. / 454 mm
- Extended length: 24.09 in. / 612 mm
- Stroke length: 6.22 in. / 158 mm
- Lower mount type: link fork
- Upper mount type: bolt
- Rebound stop included
- Cover included: no
- Bump stops included: no
Detailed Description
One Stop Solutions S341179 is a rear suspension strut for the Honda Prelude that follows the dimensional and mounting requirements of the original application. The compressed, extended, and stroke measurements help support correct suspension travel, while the link fork lower mount and bolt upper mount provide the proper interface for rear installation. This part cross-references KYB 341179 for the same application.
What This Strut Helps Address
- Rear-end bouncing or excessive oscillation
- Uneven ride control over bumps and dips
- Worn rear strut performance on a Honda Prelude
- Noisy or loose-feeling rear suspension response
- Restoration of rear suspension geometry during replacement
Installation Notes and Tips
Verify rear fitment against the vehicle year before installation on a 1992-2001 Honda Prelude. Confirm the upper bolt mount and lower link fork mount match the original strut configuration, and compare compressed and extended lengths to the removed part before assembly. Inspect surrounding suspension components for wear so the new strut is installed into a serviceable rear suspension system.
Quality Assurance
One Stop Solutions S341179 is listed with OE-style fitment data for the rear suspension of the Honda Prelude and is cross-referenced to KYB 341179 for the same application.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2001 | Honda | Prelude | Base | 2.2L | L4 | Rear | — |
| 2000 | Honda | Prelude | Base | 2.2L | L4 | Rear | — |
| 1999 | Honda | Prelude | Base | 2.2L | L4 | Rear | — |
| 1998 | Honda | Prelude | Base | 2.2L | L4 | Rear | — |
| 1997 | Honda | Prelude | Base | 2.2L | L4 | Rear | — |
| 1996 | Honda | Prelude | — | 2.2L | L4 | Rear | — |
| 1996 | Honda | Prelude | — | 2.3L | L4 | Rear | — |
| 1995 | Honda | Prelude | — | 2.2L | L4 | Rear | — |
| 1995 | Honda | Prelude | — | 2.3L | L4 | Rear | — |
| 1994 | Honda | Prelude | — | 2.2L | L4 | Rear | — |
| 1994 | Honda | Prelude | — | 2.3L | L4 | Rear | — |
| 1993 | Honda | Prelude | — | 2.2L | L4 | Rear | — |
| 1993 | Honda | Prelude | — | 2.3L | L4 | Rear | — |
| 1992 | Honda | Prelude | — | 2.2L | L4 | Rear | — |
| 1992 | Honda | Prelude | — | 2.3L | L4 | Rear | — |
