OE Quality
60-Day Returns

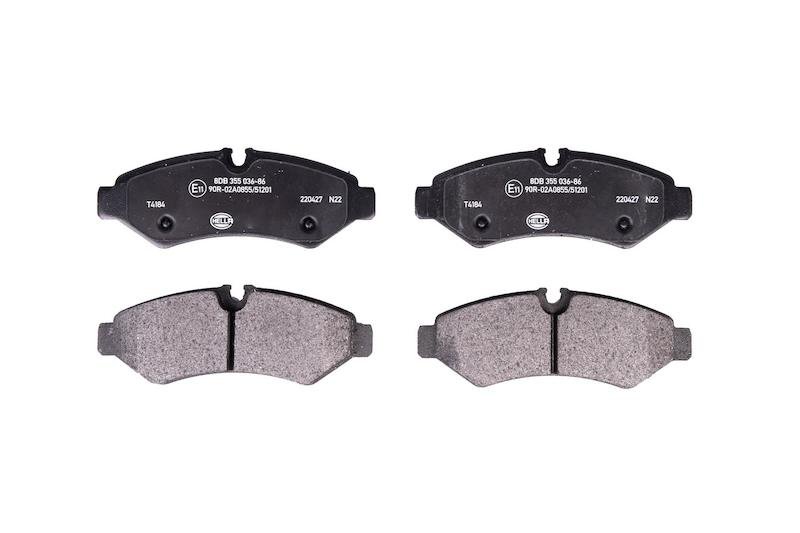

Pagid 355036861 Disc Brake Pad Set - Rear
Rear Brake Pads for Mercedes-Benz Sprinter
Pagid Low-Metallic disc brake pads are built for rear braking performance on European vehicles that use lower hydraulic line pressure. This set is engineered for the Mercedes-Benz Sprinter 2500, Mercedes-Benz Sprinter 1500, and Mercedes-Benz eSprinter rear axle applications, with a focus on stable pedal response, controlled wear, and low brake dust.
Key Features
- Low-metallic friction material for European braking systems
- Fits Brembo brake system applications
- Slotted pad design with chamfered edges
- ECE-R90 certified for regulated replacement performance
- Pad shims included with adhesive-backed shim design
- Prepared for pad wear indicator use
- Standard replacement grade for rear disc brake service
- Outer and inner pad friction thickness: 19.9 mm
- Outer and inner pad dimensions: 148.7 mm wide x 54.6 mm high
Product Details
Pagid part number 355036861 is a rear disc brake pad set designed and engineered in Germany for 2019-2025 Mercedes-Benz Sprinter 2500 rear, 2019-2023 Mercedes-Benz Sprinter 1500 rear, and 2024 Mercedes-Benz eSprinter rear applications. The low-metallic friction compound is formulated for European vehicle braking characteristics, helping deliver consistent stopping behavior, improved heat dissipation, and reduced brake dust compared with many conventional pad materials. The slotted construction, chamfered edges, and included shims support quieter operation and even pad contact during service. This part number 355036861 also cross-references Brembo P50155 for the same application.
What This Brake Pad Set Helps Address
- Rear brake noise during stops
- Brake dust buildup on wheels
- Uneven pad wear on Brembo-equipped rear brakes
- Reduced braking consistency under heat
- Wear-indicator service replacement needs
Installation Notes and Tips
Install on the rear axle only for the listed Mercedes-Benz Sprinter and eSprinter applications. Verify rotor condition, caliper hardware condition, and pad fitment against the vehicle’s brake system before assembly. Because mounting hardware and brake lubricant are not included, reuse or replace related service parts as needed during a complete brake job. Assembly and disassembly should be performed by qualified personnel.
Quality Assurance
These Pagid Low-Metallic brake pads are ECE-R90 certified and built to meet standard replacement requirements for European braking systems. The design reflects Pagid’s focus on OE-style braking performance for Mercedes-Benz Sprinter rear brake service.
| Brand | Pagid |
|---|---|
| Part Number | 355036861 |
| Position | Low-Metallic, Rear |
| Outer Pad Friction Material Thickness | 19.90 |
| 10701 | No |
| Pad Wear Sensor Included | No |
| Slotted | Yes |
| Friction Material Composition | Low-metallic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Pad Shims Included | Yes |
| Brake Lubricant Included | No |
| Pad Quantity | 4 |
| Inner Pad Friction Material Thickness | 19.90 |
| Abutment Clips Included | No |
| Chamfered Edges | Yes |
| Prepared For Pad Wear Sensor | Yes |
| ECE-R90 Certified | Yes |
| Adhesive Backed Pad Shim | Yes |
| Outer Pad Height | 54.60 |
| Inner Pad Height | 54.60 |
| Outer Pad Width | 148.70 |
| Inner Pad Width | 148.70 |
| Assy/Disassy by Qualified Personnel Required! | . |
| Brake System | Brembo |
| Height [mm] | 54.6 |
| Height [mm] | 56.4 |
| Technical Information Number | T4184 |
| Thickness [mm] | 19.9 |
| Wear Warning Contact | Prepared for wear indicator |
| Wear Warning Contact | Prepared for wear warning indicator |
| Weight [kg] | 1.78 |
| Width [mm] | 148.7 |
This part fits 13 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2025 | Mercedes-Benz | Sprinter 2500 | Base | Rear | Designed and Engineered in Germany; Low-Metallic | ||
| 2024 | Mercedes-Benz | eSprinter | Base | Rear | Designed and Engineered in Germany; Low-Metallic | ||
| 2024 | Mercedes-Benz | Sprinter 2500 | Base | Rear | Designed and Engineered in Germany; Low-Metallic | ||
| 2023 | Mercedes-Benz | Sprinter 1500 | Base | Rear | Designed and Engineered in Germany; Low-Metallic | ||
| 2023 | Mercedes-Benz | Sprinter 2500 | Base | 2.0L | L4 | Rear | Designed and Engineered in Germany; Low-Metallic |
| 2022 | Mercedes-Benz | Sprinter 1500 | Base | Rear | Designed and Engineered in Germany; Low-Metallic | ||
| 2022 | Mercedes-Benz | Sprinter 2500 | Base | 3.0L | V6 | Rear | Designed and Engineered in Germany; Low-Metallic |
| 2021 | Mercedes-Benz | Sprinter 1500 | Base | Rear | Designed and Engineered in Germany; Low-Metallic | ||
| 2021 | Mercedes-Benz | Sprinter 2500 | Base | 3.0L | V6 | Rear | Designed and Engineered in Germany; Low-Metallic |
| 2020 | Mercedes-Benz | Sprinter 1500 | Base | Rear | Designed and Engineered in Germany; Low-Metallic | ||
| 2020 | Mercedes-Benz | Sprinter 2500 | Base | 3.0L | V6 | Rear | Designed and Engineered in Germany; Low-Metallic |
| 2019 | Mercedes-Benz | Sprinter 1500 | Base | Rear | Designed and Engineered in Germany; Low-Metallic | ||
| 2019 | Mercedes-Benz | Sprinter 2500 | Base | 3.0L | V6 | Rear | Designed and Engineered in Germany; Low-Metallic |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
