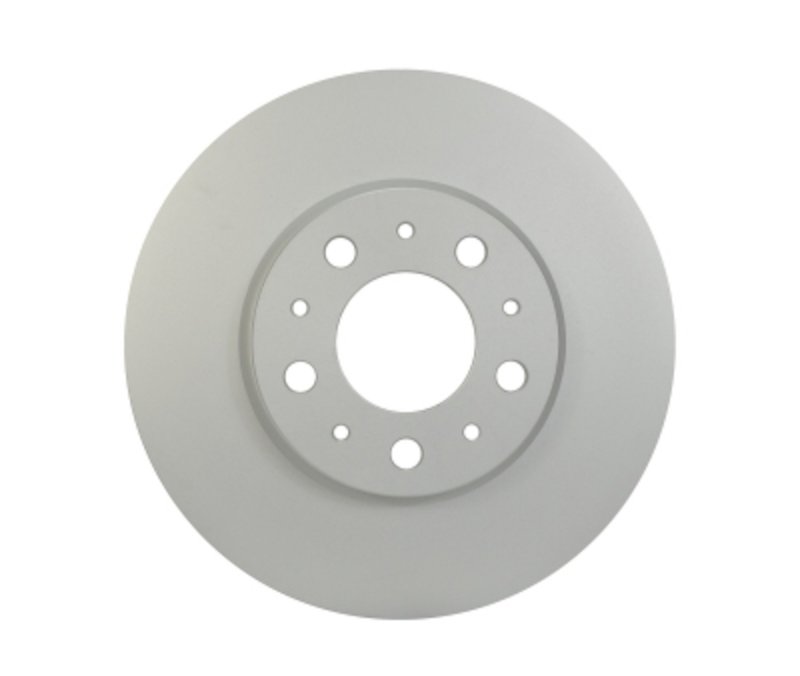

Pagid 355103682 Disc Brake Rotor - Front

Overview of Pagid Disc Brake Rotor 355103682

The Pagid disc brake rotor 355103682 is engineered for reliable braking performance on select Volvo models. Designed with gray cast iron and a fully coated finish, this rotor offers durability and corrosion resistance for consistent stopping power.

• Material: Gray cast iron for strength and heat dissipation
• Nominal thickness: 26.00 mm with discard thickness at 23.00 mm
• Vented rotor design for improved cooling
• Coated disc and hat finish to resist rust
• Full cast construction with 10 bolt holes
• Outside diameter: 280.00 mm, height: 50.30 mm

Hella Pagid - High Carbon and Fully Coated Product Line

This rotor is part of the Hella Pagid - High Carbon and Fully Coated line, which focuses on enhanced durability and corrosion protection. The high carbon content improves thermal stability, while the full coating on both the disc and hat surfaces helps prevent rust, extending the rotor's service life. This makes it suitable for Volvo vehicles requiring reliable braking components under varied driving conditions.

Detailed Product Description

The Pagid disc brake rotor 355103682 is constructed from gray cast iron, a material known for its excellent heat absorption and dissipation properties, essential for maintaining braking efficiency. The rotor features a vented design that allows air to flow between the rotor surfaces, reducing heat buildup during braking. Both the disc and hat are coated to provide a rust-resistant barrier, which is critical for longevity, especially in climates prone to moisture and road salt exposure. With a full cast construction and 10 bolt holes, this rotor ensures a secure fit and structural integrity. The dimensions, including a 280 mm outside diameter and 50.30 mm height, are tailored for specific Volvo models such as the 850, S70, S90, V70, and V90.

Compatible Volvo Models and Common Issues Addressed

• Compatible with Volvo 850, S70, S90, V70, and V90 models
• Addresses rotor wear and thickness below discard limits
• Helps reduce brake noise and vibration caused by uneven rotors
• Prevents rust-related rotor degradation
• Improves heat dissipation to avoid brake fade

Installation Notes and Tips

When installing the Pagid disc brake rotor 355103682, ensure the rotor surface is clean and free of any protective coatings before mounting. Verify the rotor thickness is within nominal specifications (26.00 mm) and replace if below the discard thickness (23.00 mm). Use proper torque settings on the 10 bolt holes to secure the rotor evenly. It is recommended to inspect brake pads and hardware during installation to maintain optimal braking performance.

Quality Assurance and Warranty

Pagid rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. The rust-resistant coating and high carbon content contribute to the rotor's longevity. Warranty details should be confirmed with the supplier or manufacturer, as coverage may vary based on application and usage.
