Pagid 355105472 Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Volvo S40 and V40

The Pagid 355105472 disc brake rotor is engineered for consistent braking performance on Volvo S40 and V40 models. Designed with durability and corrosion resistance in mind, this rotor supports safe and efficient stopping power.

• Material: Gray cast iron for strength and heat dissipation
• Nominal thickness: 10.00 mm with discard thickness at 8.40 mm
• Coated disc and hat finish for rust resistance
• Solid rotor construction with 6 bolt holes

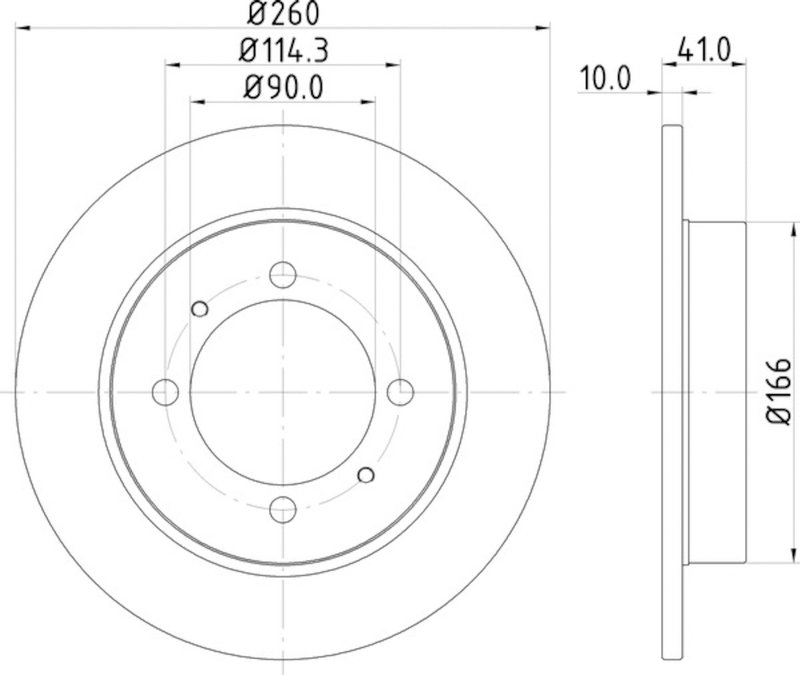

• Outside diameter of 260.00 mm and height of 41.00 mm

Hella Pagid - High Carbon and Fully Coated Product Line

This rotor is part of the Hella Pagid - High Carbon and Fully Coated line, which emphasizes enhanced durability through high carbon content and a full coating process. The coating protects against corrosion and extends rotor life, making it suitable for demanding driving conditions on Volvo S40 and V40 vehicles.

Product Details and Specifications

The Pagid 355105472 disc brake rotor is constructed from gray cast iron, a material known for its excellent thermal conductivity and wear resistance. The rotor features a solid design with a full cast construction, ensuring structural integrity under braking stress. Both the disc and hat surfaces are coated to provide a rust-resistant barrier, helping maintain rotor condition over time. With an outside diameter of 260 mm and a height of 41 mm, this rotor fits Volvo S40 and V40 models requiring a 6-bolt pattern. The nominal thickness of 10 mm and discard thickness of 8.4 mm provide clear service limits for maintenance.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Volvo S40 and V40
• Addresses brake pulsation caused by uneven rotor surfaces
• Prevents rust-related rotor degradation with coated finish
• Restores proper braking performance and pedal feel
• Suitable for vehicles experiencing rotor thickness below service limits

Installation Notes and Tips

Ensure the rotor surface and hub are clean and free of debris before installation. Verify the rotor thickness is within specifications before mounting. Use proper torque settings on the 6 bolt holes to secure the rotor evenly. It is recommended to replace brake pads simultaneously to optimize braking performance and rotor longevity.

Quality Assurance and Warranty

Pagid rotors are manufactured to meet OEM standards for fit and function. The Hella Pagid - High Carbon and Fully Coated rotors undergo quality control processes to ensure durability and corrosion resistance. Warranty coverage details should be confirmed with the supplier or manufacturer.
