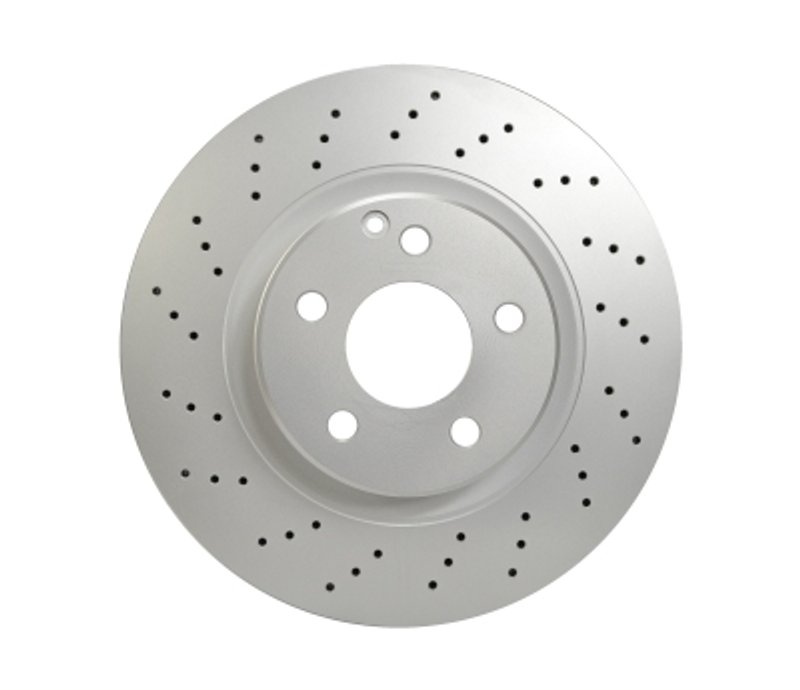

Pagid 355106852 Disc Brake Rotor - Front

Overview of Pagid Disc Brake Rotor 355106852

The Pagid disc brake rotor 355106852 is engineered for Mercedes-Benz models including the CL500, S430, and S500. Designed with durability and performance in mind, this rotor features a vented construction and a rust-resistant coating to maintain reliable braking under various conditions.

• Material: Gray cast iron for strength and heat dissipation
• Nominal Thickness: 32.00 mm with a discard thickness of 30.00 mm
• Outside Diameter: 330.00 mm ensuring proper fitment
• Surface Type: X drilled for improved heat management
• Coated disc and hat finish for corrosion resistance
• Full cast construction with 6 bolt holes
• Height: 76.00 mm
• Vented rotor design to reduce brake fade

Details on Hella Pagid - High Carbon and Fully Coated Line

This rotor is part of the Hella Pagid - High Carbon and Fully Coated product line, which emphasizes enhanced durability and corrosion protection. The fully coated surfaces help prevent rust buildup, extending the rotor's service life, while the high carbon content in the gray cast iron improves thermal conductivity and wear resistance. This combination is particularly beneficial for Mercedes-Benz vehicles requiring consistent braking performance.

Technical Description and Features

The Pagid 355106852 disc brake rotor is constructed from gray cast iron, known for its ability to absorb and dissipate heat effectively during braking. The vented design allows air to flow between the rotor surfaces, reducing the risk of overheating and brake fade. The X drilled surface pattern further aids in heat dissipation and helps maintain clean contact between the brake pad and rotor. Both the disc and hat are coated to resist rust, which is critical for maintaining rotor integrity over time. With a nominal thickness of 32.00 mm and a discard thickness of 30.00 mm, this rotor provides a clear service life indicator for maintenance scheduling.

Compatible Vehicles and Common Applications

• Replacement rotor for Mercedes-Benz CL500 models
• Suitable for Mercedes-Benz S430 brake system upgrades or repairs
• Compatible with Mercedes-Benz S500 for maintaining factory braking performance
• Addresses issues such as brake rotor warping and uneven wear
• Helps resolve brake noise caused by surface irregularities

Installation Notes and Tips

When installing the Pagid 355106852 rotor, ensure the mounting surface is clean and free of debris to prevent misalignment. Torque the 6 bolt holes to manufacturer specifications to avoid rotor distortion. It is recommended to replace brake pads simultaneously to ensure optimal braking performance. Check rotor thickness regularly and replace when it reaches the discard thickness of 30.00 mm.

Quality Assurance and Warranty

Pagid rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. The rust-resistant coating and high carbon content contribute to long service life. Warranty coverage details should be confirmed with the supplier or manufacturer, as they may vary by region.
