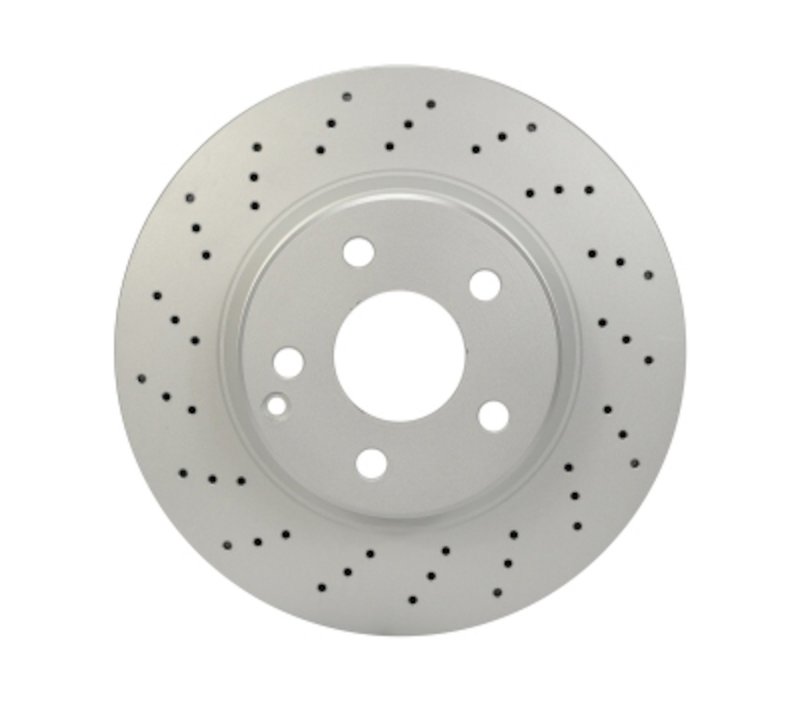

Pagid 355106872 Disc Brake Rotor - Front

Overview of Pagid Disc Brake Rotor 355106872

The Pagid disc brake rotor 355106872 is engineered for reliable braking performance on select Mercedes-Benz models. Designed with gray cast iron and a fully coated finish, this rotor offers durability and corrosion resistance for vehicles like the Mercedes-Benz CL500, S350, S430, and S500.

• Material: Gray cast iron for strength and heat dissipation
• Nominal thickness: 28.00 mm with a discard thickness of 26.00 mm
• Vented rotor design for improved cooling
• Coated disc and hat finish to resist rust and corrosion
• 6 bolt holes with an outside diameter of 312.00 mm
• X drilled surface type for enhanced brake pad contact
• Full cast construction ensuring structural integrity
• Height: 76.00 mm

Hella Pagid - High Carbon and Fully Coated Product Line

This rotor is part of the Hella Pagid - High Carbon and Fully Coated line, which focuses on combining high carbon content with a protective coating. This combination improves thermal stability and reduces the risk of corrosion, extending the rotor's service life. The fully coated finish on both the disc and hat surfaces helps maintain performance in various driving conditions, making it suitable for premium vehicles such as the Mercedes-Benz CL500 and S-Class models.

Detailed Product Description

The Pagid disc brake rotor 355106872 is constructed from gray cast iron, a material known for its excellent heat absorption and dissipation properties. The rotor features a vented design that allows air to flow between the rotor surfaces, reducing heat buildup during braking. With a nominal thickness of 28.00 mm and a discard thickness of 26.00 mm, this rotor maintains optimal braking performance until replacement is necessary. The X drilled surface enhances pad bite and helps evacuate gases and debris, contributing to consistent braking. Both the disc and hat are coated to resist rust, which is critical for maintaining rotor integrity over time. The full cast construction ensures durability and strength under demanding conditions.

Compatible Vehicles and Common Applications

• Replacement rotor for Mercedes-Benz CL500 models
• Suitable for Mercedes-Benz S350, S430, and S500 vehicles
• Addresses issues such as brake fade due to overheating
• Helps resolve rotor corrosion and rust buildup
• Improves braking consistency and reduces noise

Installation Notes and Tips

When installing the Pagid disc brake rotor 355106872, ensure the rotor surface is clean and free of any contaminants. Verify the rotor thickness before installation to confirm it meets the minimum discard thickness of 26.00 mm. Use the correct torque specifications for the 6 bolt holes to avoid warping. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Proper bedding-in of the new rotor and pads will help achieve consistent braking results.

Quality Assurance and Warranty

Pagid rotors are manufactured to meet strict quality standards, ensuring reliable performance and durability. The rust-resistant coating and high carbon content contribute to extended rotor life. While specific warranty details for part number 355106872 should be confirmed with the supplier, Pagid products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
