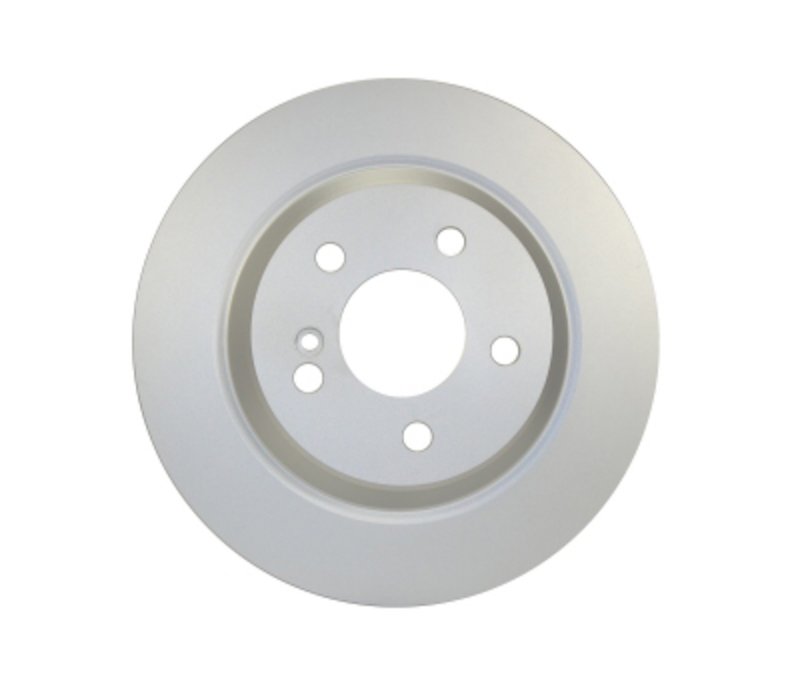

Pagid 355106912 Disc Brake Rotor - Rear

Overview of Pagid Disc Brake Rotor 355106912

The Pagid disc brake rotor 355106912 is engineered for Mercedes-Benz models including the CL500, S430, and S500. Designed with durability and performance in mind, this rotor features a vented construction and a rust-resistant coating to ensure reliable braking under various conditions.

• Material: Gray cast iron for strength and heat dissipation
• Nominal Thickness: 22.00 mm with a discard thickness of 19.40 mm
• Outside Diameter: 300.00 mm for optimal fitment
• Vented rotor design to improve cooling and reduce brake fade
• Coated disc and hat finish for enhanced corrosion resistance
• Full cast construction with 6 bolt holes
• Height: 58.50 mm

Hella Pagid - High Carbon and Fully Coated Product Line

This rotor is part of the Hella Pagid - High Carbon and Fully Coated line, which focuses on combining high carbon content with a full coating process. This approach improves rotor durability and resistance to rust, extending service life while maintaining consistent braking performance. The fully coated surfaces on both the disc and hat help protect against corrosion, making it suitable for demanding driving conditions.

Detailed Product Description

The Pagid 355106912 disc brake rotor is constructed from gray cast iron, a material known for its excellent thermal conductivity and wear resistance. Its vented design allows air to flow between the rotor surfaces, helping to dissipate heat more effectively during braking. The rotor’s nominal thickness of 22.00 mm ensures structural integrity, while the discard thickness of 19.40 mm indicates when replacement is necessary to maintain safe braking performance. Both the disc and hat feature a coated finish, providing a rust-resistant barrier that helps prevent corrosion over time. With six bolt holes and a full cast construction, this rotor is engineered for a secure fit and reliable operation on compatible Mercedes-Benz vehicles.

Compatible Vehicles and Common Applications

• Replacement rotor for Mercedes-Benz CL500 models
• Suitable for Mercedes-Benz S430 brake system maintenance
• Compatible with Mercedes-Benz S500 for disc brake rotor replacement
• Addresses issues such as brake noise, vibration, and uneven wear
• Helps restore braking efficiency and pedal feel

Installation Notes and Tips

When installing the Pagid 355106912 rotor, ensure the rotor surface is clean and free of debris before mounting. Verify the rotor thickness is above the discard limit of 19.40 mm to maintain safety standards. Use proper torque specifications for the six bolt holes to secure the rotor firmly. It is recommended to inspect brake pads and other related components during installation to ensure optimal braking system performance.

Quality Assurance and Warranty

Pagid rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. The rust-resistant coating and high carbon content contribute to extended rotor life. While specific warranty details may vary, Pagid products typically come with manufacturer-backed quality assurance to support reliability in automotive braking applications.
