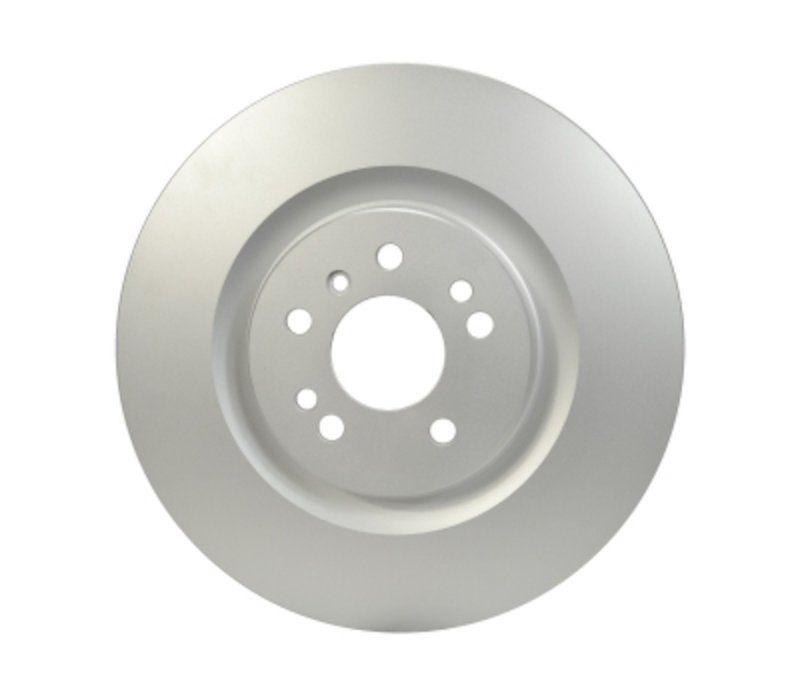

Pagid 355113192 Disc Brake Rotor - Front

Overview of Pagid Disc Brake Rotor 355113192

The Pagid disc brake rotor 355113192 is engineered for reliable braking performance on select Mercedes-Benz models. Designed with gray cast iron and a fully coated finish, this rotor offers durability and corrosion resistance for vehicles like the Mercedes-Benz GL320, GL350, and ML550.

• Material: Gray cast iron for strength and heat dissipation
• Nominal thickness: 32.00 mm with discard thickness at 29.40 mm
• Vented rotor design for improved cooling
• Coated disc and hat finish to resist rust and corrosion
• Full cast construction with 8 bolt holes
• Outside diameter of 350.00 mm and height of 54.50 mm

Hella Pagid - High Carbon and Fully Coated Product Line

This rotor is part of the Hella Pagid - High Carbon and Fully Coated line, which focuses on enhanced durability and corrosion protection. The high carbon content improves thermal stability, while the full coating on both the disc and hat surfaces helps prevent rust, extending the rotor's service life. This makes it suitable for demanding driving conditions and ensures consistent braking performance on Mercedes-Benz GL and ML series vehicles.

Technical Details and Compatibility

The Pagid 355113192 disc brake rotor is constructed from gray cast iron, known for its excellent heat absorption and dissipation properties. The vented design allows air to flow between the rotor surfaces, reducing heat buildup during braking. With a nominal thickness of 32.00 mm and a discard thickness of 29.40 mm, this rotor maintains structural integrity throughout its service life. The rotor features a rust-resistant coating on both the disc and hat, which helps protect against corrosion, especially in humid or wet environments. It is compatible with Mercedes-Benz models including GL320, GL350, GL450, GL550, GLE400, GLS350d, GLS450, ML400, ML550, and R350, ensuring precise fitment and reliable braking performance.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake vibration
• Addressing rust and corrosion on original brake rotors
• Improving heat dissipation to reduce brake fade
• Restoring braking performance on Mercedes-Benz GL and ML series vehicles
• Ensuring proper rotor thickness for safe braking operation

Installation Notes and Tips

When installing the Pagid 355113192 rotor, ensure the mounting surface is clean and free of debris. Verify the rotor thickness before installation to confirm it meets minimum specifications. Use proper torque settings on the 8 bolt holes to avoid rotor warping. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. After installation, perform a bed-in procedure to ensure even pad and rotor contact.

Quality Assurance and Warranty

Pagid rotors undergo strict quality control to meet OEM standards for fitment and performance. The rust-resistant coating and high carbon content contribute to long-lasting durability. While specific warranty details are not provided here, Pagid products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
