Pagid 355116192 Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Volvo XC60

The Pagid 355116192 disc brake rotor is engineered to meet the braking demands of the Volvo XC60. Designed with durability and performance in mind, this rotor ensures consistent stopping power and long service life under various driving conditions.

• Material: Gray cast iron for strength and heat dissipation
• Nominal Thickness: 22.00 mm with a discard thickness of 20.00 mm
• Vented rotor design for improved cooling
• Coated disc and hat finish for rust resistance
• Full cast construction with 6 bolt holes

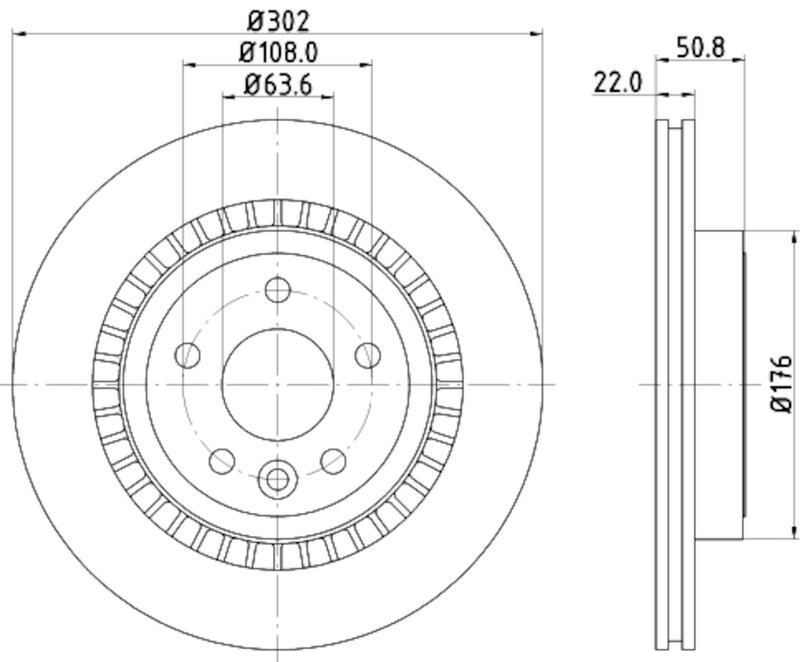

• Outside diameter of 302.00 mm and height of 50.80 mm

About the Hella Pagid - High Carbon and Fully Coated Product Line

This rotor is part of the Hella Pagid - High Carbon and Fully Coated line, which focuses on enhanced durability and corrosion resistance. The fully coated surfaces help protect against rust, extending the rotor's lifespan while maintaining consistent braking performance. The high carbon content in the cast iron material improves thermal stability and wear resistance, making it suitable for demanding applications like the Volvo XC60.

Detailed Product Description

The Pagid 355116192 disc brake rotor is constructed from gray cast iron, a material known for its excellent heat dissipation and structural integrity. Its vented design allows air to flow between the rotor surfaces, reducing heat buildup during braking and minimizing the risk of brake fade. Both the disc and hat surfaces are coated to resist corrosion, which is critical for maintaining rotor integrity over time, especially in environments prone to moisture and road salt exposure. The rotor features a full cast construction and six bolt holes, ensuring a secure fitment on the Volvo XC60. With an outside diameter of 302 mm and a height of 50.80 mm, this rotor meets OEM specifications for reliable braking performance.

Compatible Applications and Common Issues Addressed

• Compatible with Volvo XC60 models requiring a 302 mm vented disc brake rotor
• Replaces worn or warped rotors causing brake pulsation or noise
• Addresses rotor corrosion and surface rust issues
• Improves braking consistency by restoring proper rotor thickness
• Helps reduce brake fade under heavy or repeated braking conditions

Installation Notes and Tips

Ensure the rotor is installed on a clean, debris-free hub surface to maintain proper alignment. Verify the bolt hole pattern matches the vehicle’s hub (6 bolt holes) before installation. Measure rotor thickness to confirm it meets or exceeds the discard thickness of 20.00 mm. It is recommended to replace brake pads simultaneously to ensure optimal braking performance and rotor longevity.

Quality Assurance and Warranty

Pagid rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. The Hella Pagid - High Carbon and Fully Coated rotors undergo rigorous testing for material integrity and coating adhesion. Warranty coverage details should be confirmed with the original equipment manufacturer or authorized distributor.
