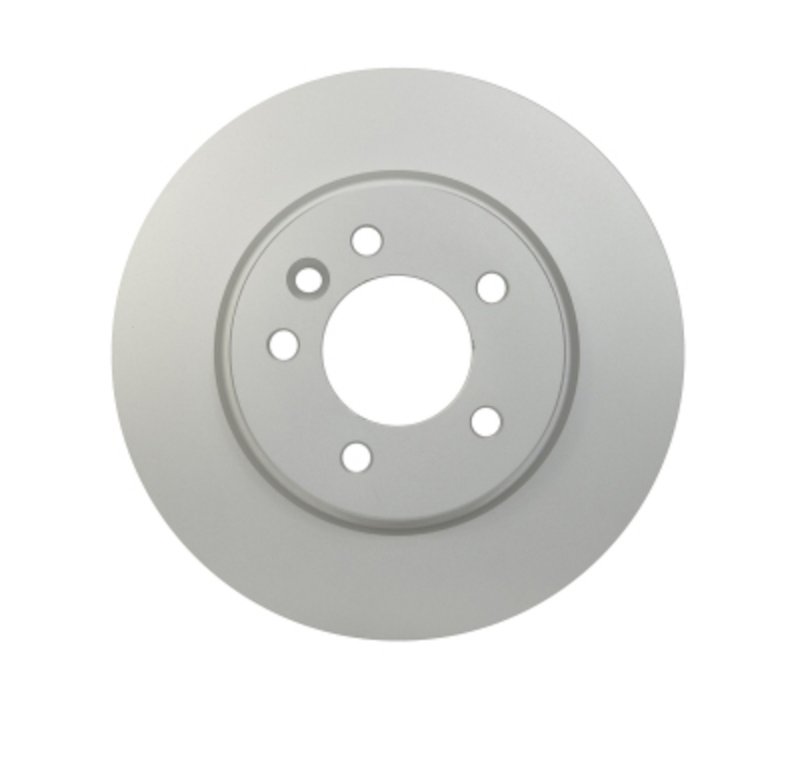

Pagid 355118642 Disc Brake Rotor - Front

Overview of Pagid Disc Brake Rotor for Land Rover LR3

The Pagid disc brake rotor part number 355118642 is engineered specifically for the Land Rover LR3. Designed with durability and performance in mind, this rotor features a vented construction and a rust-resistant coating to ensure reliable braking under various driving conditions.

• Material: Gray cast iron for strength and heat dissipation
• Nominal thickness: 30.00 mm with a discard thickness of 27.00 mm
• Vented disc type for improved cooling
• Coated disc and hat finish for corrosion resistance
• Full cast construction enhancing structural integrity
• 6 bolt holes for secure fitment
• Outside diameter: 317.00 mm and height: 62.00 mm

Details on the Hella Pagid - High Carbon and Fully Coated Product Line

This rotor is part of the Hella Pagid - High Carbon and Fully Coated line, which focuses on combining high carbon content with a full coating process. This combination improves thermal stability and reduces the risk of rust, extending the rotor's service life. The fully coated finish on both the disc and hat areas helps protect against corrosion, making it suitable for the demanding conditions faced by Land Rover LR3 vehicles.

Technical Description of the Pagid 355118642 Rotor

The Pagid 355118642 disc brake rotor is constructed from gray cast iron, a material known for its excellent heat absorption and dissipation properties. The rotor’s vented design allows air to flow between the rotor surfaces, reducing heat buildup during braking and minimizing the risk of brake fade. With a nominal thickness of 30.00 mm and a discard thickness of 27.00 mm, this rotor maintains optimal performance throughout its service life. The full cast construction ensures consistent strength and durability, while the rust-resistant coating on both the disc and hat surfaces protects against corrosion, which is critical for maintaining braking efficiency over time.

Compatible Applications and Common Issues Addressed

• Compatible with Land Rover LR3 models requiring a 317 mm diameter vented rotor
• Addresses rotor wear and thickness reduction to maintain safe braking performance
• Helps reduce brake noise and vibration associated with worn or damaged rotors
• Prevents rust and corrosion that can lead to uneven braking or rotor failure
• Improves heat dissipation to reduce brake fade during heavy use

Installation Notes and Tips for Land Rover LR3 Rotors

When installing the Pagid 355118642 rotor on a Land Rover LR3, ensure the rotor surface is clean and free of any contaminants before mounting. Verify that the rotor thickness is above the discard limit of 27.00 mm to guarantee safe operation. Use the correct torque specifications for the 6 bolt holes to secure the rotor properly. It is recommended to inspect brake pads and replace them if worn to ensure optimal braking performance. Proper bedding-in of the new rotor and pads will help achieve consistent braking response.

Quality Assurance and Warranty Information

Pagid rotors are manufactured to meet strict quality standards, ensuring reliable performance and durability. The rust-resistant coating and high carbon content contribute to extended rotor life. While specific warranty details for part number 355118642 are not provided here, Pagid products typically come with manufacturer-backed quality assurance to support their use in Land Rover LR3 vehicles.
