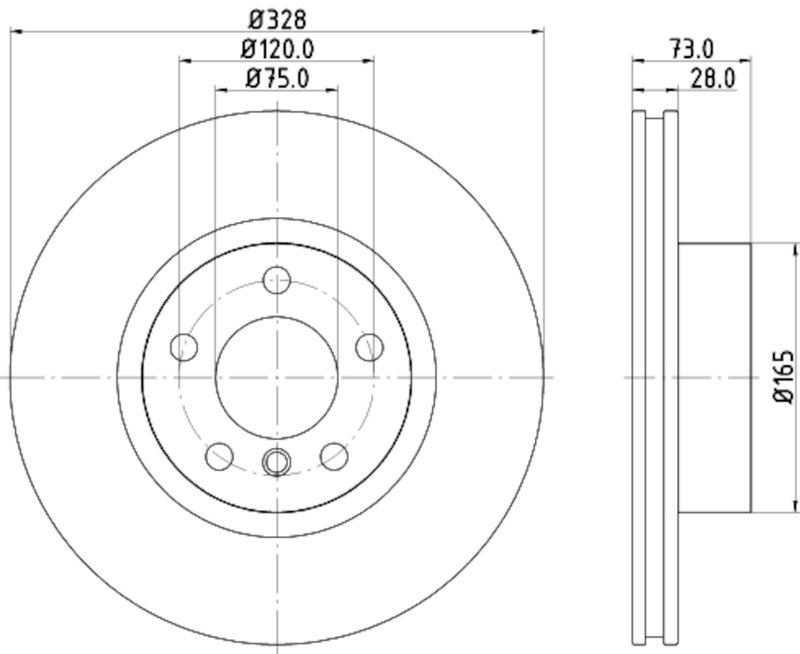

Pagid 355119532 Disc Brake Rotor - Front
| Brand | Pagid 355119532 |
|---|---|
| Position | Front |
| Material | Gray cast iron |
| Discard Thickness | 26.40 |
| Nominal Thickness | 28.00 |
| 143 | 120.00 |
| Disc Finish | Coated |
| Hat Finish | Coated |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 328.00 |
| Height | 73.00 |
| Solid Or Vented Type Rotor | Vented |
| Product line | Hella Pagid - High Carbon and Fully Coated |
| Fits | BMW · 31 vehicles |
OE-style replacement. Vented disc brake rotor with a full cast construction.
Coated finish. Helps resist rust on the disc and hat surfaces.
Gray cast iron. Built for dependable braking performance and heat handling.
Cross-references Dynamic Friction Company 600-31151, Dynamic Friction Company 604-31151 and Dynamic Friction Company 900-31151 for the same application. See all 85.
Pagid Front Brake Rotor for BMW X3/X4
This Pagid disc brake rotor is a front axle replacement for select BMW X3 and BMW X4 applications. Built from gray cast iron with a coated disc and coated hat, it supports cleaner service life and added resistance to surface rust.
Key Features
- Part number: 355119532
- Brand line: Hella Pagid - High Carbon and Fully Coated
- Material: gray cast iron
- Full cast construction with a vented rotor design
- Coated disc finish and coated hat finish
- Rust resistant coating: yes
- Outside diameter: 328.00
- Nominal thickness: 28.00
- Discard thickness: 26.40
- Bolt hole quantity: 6
- Height: 73.00
Product Details
The Pagid 355119532 rotor is part of the Hella Pagid High Carbon and Fully Coated line, which focuses on corrosion protection and stable braking performance in everyday driving conditions. Its vented, full cast design and coated surfaces help maintain a cleaner appearance while supporting consistent brake service on BMW X3 and BMW X4 front brake systems.
Compatible With BMW X3 and BMW X4 front brake applications, this rotor matches the listed OE-style dimensions and construction details for direct replacement use. This part cross-references Dynamic Friction Company (e.g., 600-31151, 604-31151) for the same application.
Common Issues This Rotor Can Address
- Brake pulsation caused by rotor wear or thickness variation
- Surface rust on exposed braking surfaces and hat areas
- Reduced braking consistency from a worn front rotor
- Noise or vibration linked to rotor condition
- Service replacement needs on BMW X3 and BMW X4 front brakes
Installation Notes and Tips
Verify rotor diameter, thickness, bolt pattern, and height against the existing part before installation. Confirm front axle fitment for your specific BMW X3 or BMW X4 by model year and production date, especially for 2016 applications listed both before and after 07/2015. Always inspect pads, calipers, and hub surfaces during brake service to help ensure proper rotor seating.
- Fits 2017-2018 BMW X4, Front
- Fits 2015 BMW X4, Front
- Fits 2011-2017 BMW X3, Front
- Fits 2016 BMW X3, Front, To 07/2015
- Fits 2016 BMW X3, Front, From 07/2015
- Fits 2016 BMW X4, Front, To 07/2015
- Fits 2016 BMW X4, Front, From 07/2015
Quality Assurance
Pagid brake components are built to OE-style specifications with application-specific dimensions and coated surfaces for corrosion resistance. The Hella Pagid High Carbon and Fully Coated line is engineered for consistent fitment and dependable service on the listed BMW X3 and BMW X4 front brake applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | BMW | X4 | xDrive28i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2017 | BMW | X3 | xDrive35i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2017 | BMW | X3 | xDrive28i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2017 | BMW | X3 | xDrive28d | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2017 | BMW | X3 | sDrive28i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2017 | BMW | X4 | xDrive28i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2016 | BMW | X3 | xDrive35i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2016 | BMW | X3 | xDrive28i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2016 | BMW | X3 | xDrive28d | — | — | Front | To 07/2015; Hella Pagid - High Carbon and Fully Coated |
| 2016 | BMW | X3 | xDrive28d | — | — | Front | From 07/2015; Hella Pagid - High Carbon and Fully Coated |
| 2016 | BMW | X3 | sDrive28i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2016 | BMW | X4 | xDrive35i | — | — | Front | To 07/2015; Hella Pagid - High Carbon and Fully Coated |
| 2016 | BMW | X4 | xDrive35i | — | — | Front | From 07/2015; Hella Pagid - High Carbon and Fully Coated |
| 2016 | BMW | X4 | xDrive28i | — | — | Front | To 07/2015; Hella Pagid - High Carbon and Fully Coated |
| 2016 | BMW | X4 | xDrive28i | — | — | Front | From 07/2015; Hella Pagid - High Carbon and Fully Coated |
| 2015 | BMW | X3 | xDrive35i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2015 | BMW | X3 | xDrive28i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2015 | BMW | X3 | xDrive28d | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2015 | BMW | X3 | sDrive28i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2015 | BMW | X4 | xDrive35i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2015 | BMW | X4 | xDrive28i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2014 | BMW | X3 | xDrive35i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2014 | BMW | X3 | xDrive35i | 3.0L | L6 | Front | Hella Pagid - High Carbon and Fully Coated |
| 2014 | BMW | X3 | xDrive28i | 2.0L | L4 | Front | Hella Pagid - High Carbon and Fully Coated |
| 2013 | BMW | X3 | xDrive35i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2013 | BMW | X3 | xDrive28i | 2.0L | L4 | Front | Hella Pagid - High Carbon and Fully Coated |
| 2012 | BMW | X3 | xDrive35i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2012 | BMW | X3 | xDrive28i | 3.0L | L6 | Front | Hella Pagid - High Carbon and Fully Coated |
| 2011 | BMW | X3 | xDrive35i | — | — | Front | Hella Pagid - High Carbon and Fully Coated |
| 2011 | BMW | X3 | xDrive28i | 3.0L | L6 | Front | Hella Pagid - High Carbon and Fully Coated |
| 2011 | BMW | X3 | xDrive35i | 3.0L | L6 | Front | Hella Pagid - High Carbon and Fully Coated |
| No rows match your filter. | |||||||
