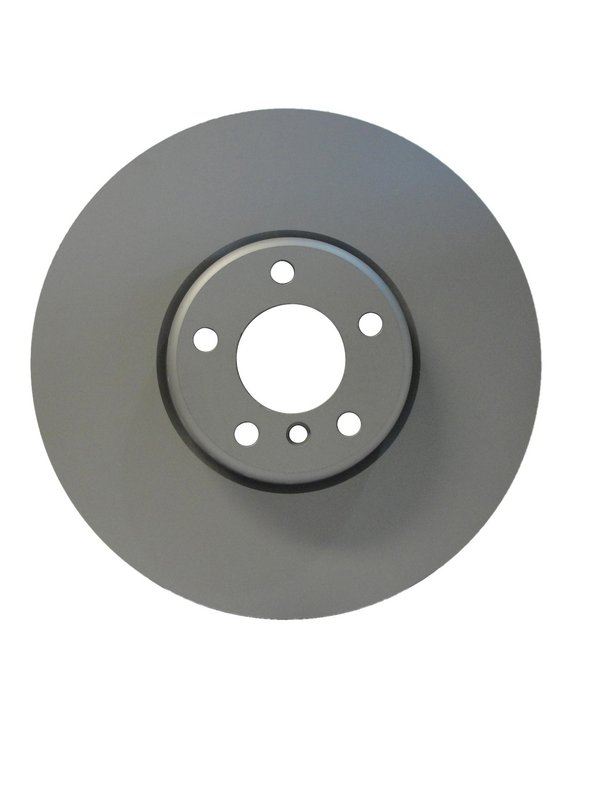

Pagid 355120701 Disc Brake Rotor - Front Left

Overview of Pagid Disc Brake Rotor 355120701 for BMW 760Li

The Pagid disc brake rotor 355120701 is engineered specifically for the BMW 760Li, offering reliable braking performance with a vented rotor design. This rotor combines durable materials and advanced coatings to ensure consistent operation and resistance to wear.

• Material: Gray cast iron disc with aluminum hat
• Nominal thickness: 36.00 mm; discard thickness: 34.40 mm
• Vented rotor construction for improved heat dissipation
• Fully coated disc and hat for rust resistance
• Composite construction with 6 bolt holes
• Outside diameter: 374.00 mm; height: 66.10 mm

Hella Pagid OE Two Piece Design Made in Europe

This rotor is part of the Hella Pagid - OE Two Piece Design Made in Europe (Aluminum Hat, High Carbon Friction Ring, Fully Coated) product line. The two-piece design features a gray cast iron friction ring paired with a lightweight aluminum hat, reducing unsprung weight while maintaining structural integrity. The fully coated surfaces provide enhanced corrosion resistance, extending the rotor's service life under various driving conditions.

Technical Details and Performance

The 355120701 rotor is constructed with a vented design to improve heat dissipation during braking, which helps prevent brake fade and maintains consistent stopping power. The gray cast iron friction ring offers reliable wear characteristics, while the aluminum hat reduces overall weight. Both the disc and hat are coated to resist rust and corrosion, ensuring durability. The rotor measures 374 mm in outside diameter and 66.10 mm in height, with a nominal thickness of 36.00 mm and a discard thickness of 34.40 mm, providing clear service limits for maintenance.

Applications and Problem Solving

• Replacement for worn or warped rotors on BMW 760Li models
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Improves heat management to reduce brake fade during heavy use
• Prevents rust and corrosion-related rotor degradation
• Maintains proper rotor thickness for safe braking performance

Installation Notes and Tips

Ensure the rotor is compatible with your BMW 760Li by verifying the part number 355120701 before installation. Clean the hub surface thoroughly to prevent uneven mounting. Use proper torque specifications on the 6 bolt holes to secure the rotor. It is recommended to replace brake pads simultaneously to optimize braking performance and avoid premature wear.

Quality Assurance and Warranty

Pagid rotors are manufactured to meet OE specifications, ensuring consistent quality and fitment for BMW 760Li vehicles. The rust-resistant coating and composite construction contribute to long service life. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
