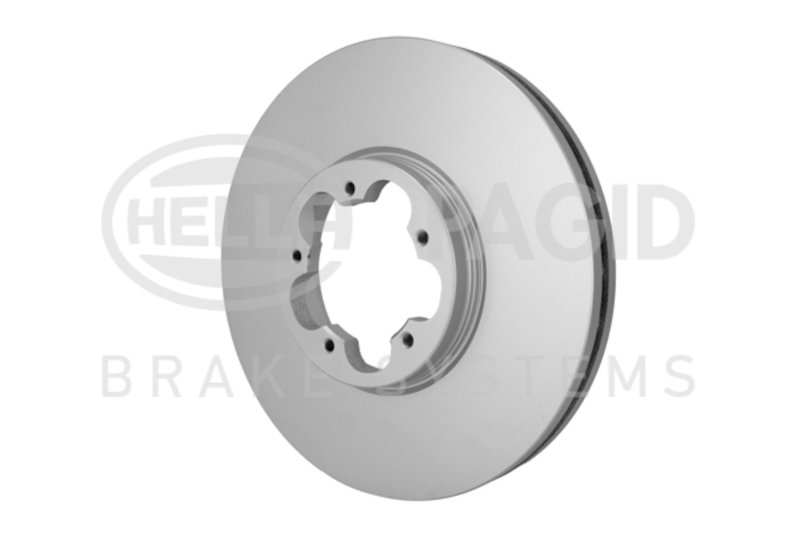

Pagid 355123131 Disc Brake Rotor - Front

Overview of Pagid Disc Brake Rotor 355123131

The Pagid disc brake rotor 355123131 is engineered for reliable braking performance on Ford Transit models. Designed specifically for Transit-150, Transit-250, Transit-350, and Transit-350 HD, this rotor offers durability and consistent stopping power under demanding conditions.

• Material: Gray cast iron for strength and heat dissipation
• Nominal thickness: 33.00 mm with discard thickness at 30.00 mm
• Vented rotor design for improved cooling
• Coated disc and hat finish for rust resistance
• Full cast construction ensuring structural integrity
• 5 bolt hole quantity for secure fitment
• Outside diameter: 308.00 mm and height: 55.50 mm

Hella Pagid - High Carbon and Fully Coated Product Line

This rotor is part of the Hella Pagid - High Carbon and Fully Coated line, which focuses on enhanced durability and corrosion resistance. The high carbon content improves thermal stability and wear resistance, while the full coating on both the disc and hat surfaces protects against rust and extends service life. This product line is designed to meet the rigorous demands of commercial vehicles like the Ford Transit series.

Detailed Product Description

The Pagid 355123131 disc brake rotor is constructed from gray cast iron, a material known for its excellent heat absorption and dissipation properties. The vented design allows air to flow between the rotor surfaces, reducing heat buildup during braking and minimizing the risk of brake fade. With a nominal thickness of 33.00 mm and a discard thickness of 30.00 mm, this rotor maintains optimal performance throughout its service life. The fully coated disc and hat surfaces provide a rust-resistant barrier, which is essential for vehicles exposed to varying weather conditions. The full cast construction ensures the rotor maintains its shape and strength under heavy braking loads. This rotor is specifically designed for Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD models, ensuring precise fitment and reliable operation.

Applications and Problem Solving

• Replacement for worn or warped rotors on Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD
• Addresses brake noise and vibration caused by uneven rotor surfaces
• Improves braking consistency and heat management in commercial use
• Prevents rust and corrosion-related rotor degradation
• Restores proper rotor thickness to maintain braking efficiency

Installation Notes and Tips

Ensure the rotor surface and hub are clean and free of debris before installation. Verify the rotor thickness is above the discard limit of 30.00 mm to maintain safety standards. Use the correct torque specifications for the 5 bolt holes to secure the rotor properly. It is recommended to inspect brake pads and replace them if worn to ensure optimal braking performance with the new rotor.

Quality Assurance

Pagid rotors undergo strict quality control to meet OEM standards for fitment and performance. The rust-resistant coating and high carbon content contribute to extended rotor life. While no specific warranty information is provided, Pagid products are manufactured to deliver consistent and reliable braking performance for Ford Transit vehicles.
