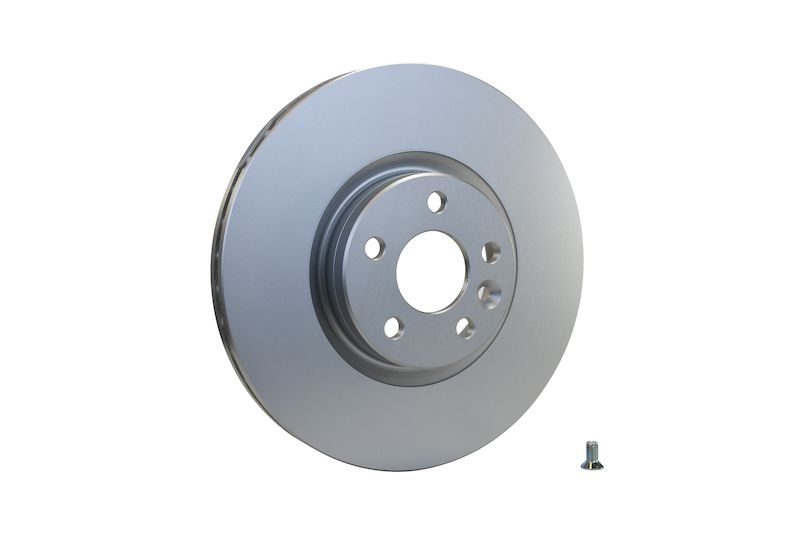

Pagid 355126661 Disc Brake Rotor - Front

Overview of Pagid Disc Brake Rotor 355126661 for Volvo XC60

The Pagid disc brake rotor 355126661 is designed specifically for the Volvo XC60, providing reliable braking performance with durable construction. This rotor features a fully coated surface and vented design to enhance heat dissipation and corrosion resistance.

• Material: Gray cast iron for strength and heat resistance
• Nominal thickness: 28.00 mm with discard thickness at 26.00 mm
• Vented rotor design for improved cooling
• Coated disc and hat finish for rust resistance
• Mill balanced for smooth operation
• 5 mounting bolt holes with 108 mm bolt circle diameter
• Non-directional smooth braking surface
• Overall height: 52.00 mm, outside diameter: 324.00 mm

Hella Pagid - High Carbon and Fully Coated Product Line

This rotor is part of the Hella Pagid - High Carbon and Fully Coated line, which emphasizes enhanced durability and corrosion protection. The high carbon content in the gray cast iron material improves wear resistance and thermal stability, while the full coating on both the disc and hat surfaces helps prevent rust and extends rotor life. This product line is engineered to meet standard replacement specifications, ensuring compatibility and reliable performance for Volvo XC60 vehicles.

Technical Details and Features

The Pagid 355126661 rotor is constructed from full cast gray iron, providing a solid and durable braking surface. Its vented design allows air to flow between the rotor faces, reducing heat buildup during braking and minimizing the risk of warping. The rotor is mill balanced to reduce vibrations and ensure smooth braking. Both the disc and hat are coated with a rust-resistant finish, which helps maintain the rotor’s integrity in harsh environments. The rotor features a non-directional smooth surface, making it suitable for various brake pad types and driving conditions.

Applications and Problem Solving

• Replacement for worn or warped rotors on Volvo XC60 models
• Addresses brake noise and vibration issues caused by unbalanced rotors
• Prevents rust and corrosion that can reduce rotor lifespan
• Improves heat dissipation to reduce brake fade during extended use
• Restores braking performance to factory specifications

Installation Notes and Tips

Installation of the Pagid 355126661 disc brake rotor should be performed by qualified personnel to ensure proper fitment and safety. Verify that the rotor thickness is within the nominal range before installation and replace if below discard thickness. Clean the hub surface before mounting to ensure proper seating. Use the correct torque specifications for the 5 mounting bolts with a 108 mm bolt circle diameter. This rotor does not include bearings or ABS tone rings, so ensure compatibility with your vehicle’s existing components.

Quality Assurance and Warranty

Pagid rotors are manufactured to meet or exceed OEM standards for quality and durability. The Hella Pagid - High Carbon and Fully Coated line undergoes strict quality control processes, including mill balancing and coating application, to ensure consistent performance. While specific warranty details are not provided here, Pagid products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
