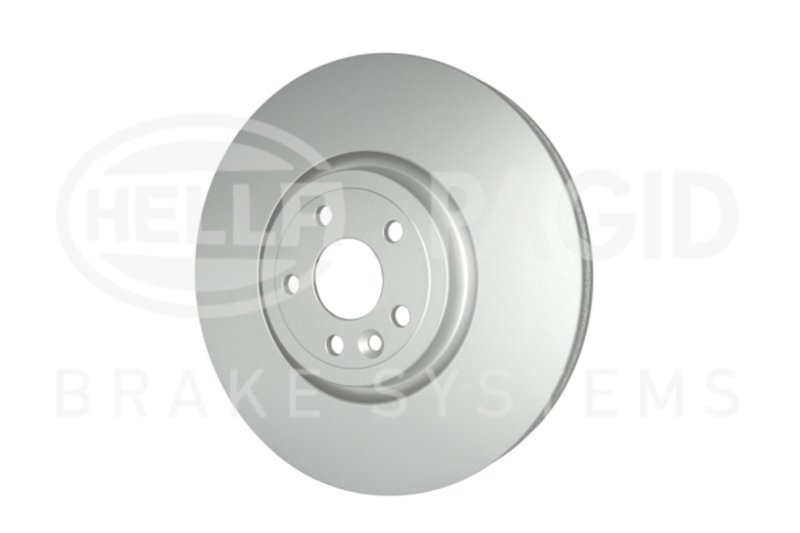

Pagid 355132481 Disc Brake Rotor - Front

Front Brake Rotor for Jaguar and Land Rover

This Pagid disc brake rotor is a front replacement rotor built for select Jaguar and Land Rover applications. It features a 350 mm outside diameter, internally vented construction, and a coated finish to support consistent braking performance and corrosion resistance.

Key Features

• Pagid Hella Pagid - High Carbon and Fully Coated product line
• Part number 355132481
• Gray cast iron, full cast construction
• Internally vented rotor with smooth, non-directional braking surface
• Coated disc and coated hat finish with rust-resistant coating
• 350 mm outside diameter, 32 mm nominal thickness, 30 mm minimum thickness
• Mill balanced for controlled rotor consistency
• 5-bolt mounting pattern with 108 mm bolt hole circle
• Standard replacement grade for front brake service

Product Details

The Hella Pagid High Carbon and Fully Coated line focuses on rotor durability and surface protection. On this rotor, the high-carbon machining and gray cast iron construction are paired with a coated braking surface and coated hat to help resist corrosion on exposed brake components. The internally vented design supports heat management during repeated stops, while the smooth, non-directional surface is suited to standard replacement service. This part number 355132481 is listed for the front axle on 2017-2020 Jaguar F-Pace, 2019-2020 Jaguar I-Pace, and 2018-2020 Land Rover Range Rover Velar.

This part cross-references Dynamic Friction Company (e.g., 600-20033, 604-20033) for the same application.

Common Problems This Rotor Can Address

• Brake pulsation from a worn or below-spec front rotor
• Corrosion on the rotor hat or braking surface
• Reduced braking consistency from heat buildup in the front brakes
• Noise or uneven contact caused by rotor surface wear
• Service replacement needs on Jaguar F-Pace, Jaguar I-Pace, and Range Rover Velar front brake systems

Installation Notes and Tips

Verify rotor diameter, thickness, center hole diameter, and bolt pattern before installation. This rotor is listed without a wheel hub and without bearings, so transfer and inspection of related components should be completed during service. Because brake system work affects vehicle safety, installation should be performed by qualified personnel and followed by proper brake bedding procedures.

Quality Assurance

Pagid supplies this rotor as a standard replacement part with coated surfaces, mill balancing, and high-carbon rotor machining for consistent fit and finish. The Hella Pagid High Carbon and Fully Coated line is built for applications that require corrosion protection and OE-style brake service.
