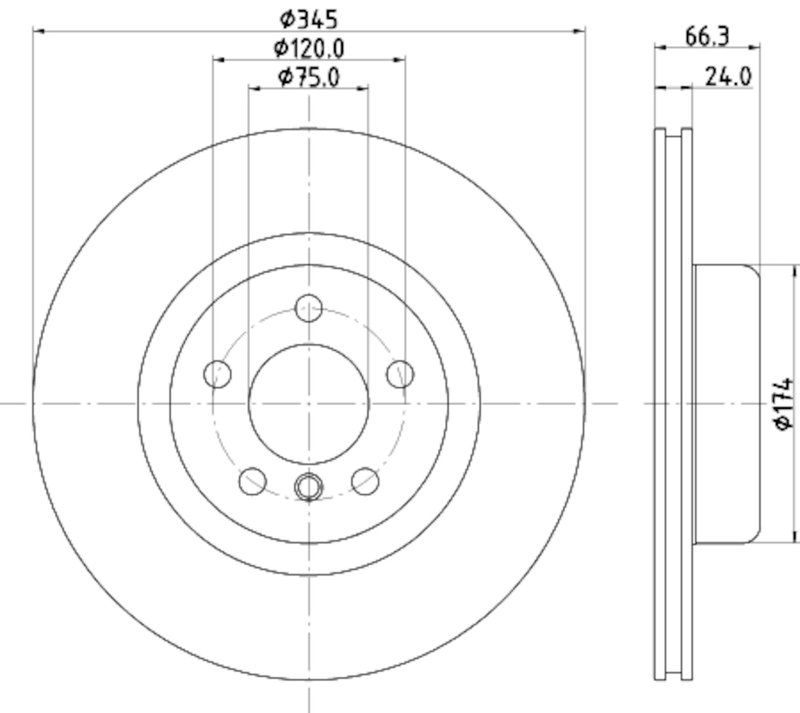

Pagid 355132781 Disc Brake Rotor - Rear

Brand	Pagid 355132781
Position	Rear
Material	Gray cast iron
Discard Thickness	22.40
Nominal Thickness	24.00
Balancing Type	Mill balancing
Disc Finish	Coated
Hat Finish	Coated
Construction	Composite
Rust Resistant Coating	Yes
Inside Diameter	75.00
Overall Height	66.30
Outside Diameter	345.00
Mounting Bolt Hole Quantity	5
Grade Type	Standard replacement
ABS Tone Ring Included	No
Surface Type	Smooth
Solid Or Vented Type Rotor	Vented
Bearings Included	No
Center Hole Diameter	120.00
Mounting Bolt Hole Circle Diameter	120.00
Stud/Lug Hole Quantity	5
Directional or Non-Directional Brake Surface	Non-directional
Assy/Disassy by Qualified Personnel Required!	.
Bolt Hole Circle Ø [in]	4.72
Bolt Hole Circle Ø [mm]	120
Brake Disc Thickness [in]	0.94
Brake Disc Thickness [mm]	24
Brake Disc Type	Internally vented
Brake Disc Type	Two-piece brake disc
Centering Diameter [in]	2.95
Centering Diameter [mm]	75
Product line	Composite Two-Piece Design with Full-Cast Rotor
Fits	BMW · 83 vehicles

Coated surfaces. Helps resist rust on the disc and hat for cleaner long-term appearance.

High-carbon construction. Supports stable braking performance under repeated heat cycles.

OE-style replacement. Hella Pagid coated, high-carbon full-cast disc line for standard replacement use.

Cross-references Dynamic Friction Company 600-31113, Dynamic Friction Company 600-92100 and Dynamic Friction Company 604-31113 for the same application. See all 36.

$116.65Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Disc Brake Rotors are typically replaced in pairs, axle by axle.

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Disc Brake Rotor options

Rear Brake Rotor for BMW Applications

This Pagid rear disc brake rotor is a coated, high-carbon replacement built for BMW applications that require a 345 mm vented rotor. Part number 355132781 is a standard replacement option for drivers looking for a direct-fit rear brake rotor with corrosion-resistant surface treatment.

Key Features

Gray cast iron construction with high-carbon machining for stable braking performance.
Coated disc and hat surfaces help resist rust on exposed areas.
Internally vented, two-piece brake disc design for rear axle use.
345 mm outside diameter, 24 mm nominal thickness, and 22.4 mm minimum thickness.
Non-directional smooth braking surface for consistent pad contact.
Fits rear axle BMW 230i, 230i xDrive, M240i, M240i xDrive, 320i, 228i, 228i xDrive, M235i, M235i xDrive, 328i, 428i, and 428i xDrive applications.

Detailed Description

Pagid 355132781 is a rear disc brake rotor engineered as a coated, high-carbon full-cast disc for BMW fitments that use a 345 mm rear rotor. The vented, two-piece construction supports heat management during repeated braking, while the coated finish on the disc and hat surfaces adds protection against corrosion. This rotor is listed for rear applications on BMW 230i, M240i, 320i, 228i, 328i, 428i, and related xDrive models across multiple model years.

Hella Pagid’s coated, high-carbon full-cast disc line focuses on replacement rotors with corrosion protection and OE-style dimensions. Part number 355132781 is also referenced by 34 42 6 760 605 and 34 42 6 871 719 for the same application.

What It Helps Address

Brake pulsation from worn or uneven rear rotors.
Corrosion on the rotor hat or braking surface.
Reduced braking consistency from thickness wear.
Heat buildup during repeated stops.
Fitment issues when replacing a rear rotor with the wrong diameter or thickness.

Installation Notes and Tips

Verify rear axle fitment, rotor diameter, thickness, and caliper application before installation. This rotor is listed without wheel bearing, wheel hub, or wheel studs, and qualified personnel are required for assembly/disassembly. Confirm the vehicle’s caliper finish notes where applicable, especially on BMW applications with blue painted calipers.

Quality Assurance

Pagid and Hella Pagid supply OE-oriented brake components, and this rotor uses coated surfaces plus high-carbon construction for consistent replacement quality. Part number 355132781 is built to standard replacement specifications for the listed BMW rear applications.

This part fits 83 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Body Type	Liters	Cylinders	Position	Notes
2021	BMW	230i	Base	—	—	—	Rear	High-Carbon - Coated; Composite Two-Piece Design with Full-Cast Rotor
2021	BMW	230i xDrive	Base	—	—	—	Rear	High-Carbon - Coated; Composite Two-Piece Design with Full-Cast Rotor
2021	BMW	M240i	Base	—	—	—	Rear	High-Carbon - Coated; Composite Two-Piece Design with Full-Cast Rotor
2021	BMW	M240i xDrive	Base	—	—	—	Rear	High-Carbon - Coated; Composite Two-Piece Design with Full-Cast Rotor
2020	BMW	230i	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2020	BMW	230i	Base	—	—	—	Rear	To 03/2020; For Blue Painted Caliper; Hella Pagid - coated, high carbon (full-cast disc)
2020	BMW	230i	Base	—	—	—	Rear	From 03/2020; For Blue Painted Caliper; Hella Pagid - coated, high carbon (full-cast disc)
2020	BMW	230i xDrive	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2020	BMW	230i xDrive	Base	—	—	—	Rear	To 03/2020; For Blue Painted Caliper; Hella Pagid - coated, high carbon (full-cast disc)
2020	BMW	230i xDrive	Base	—	—	—	Rear	From 03/2020; For Blue Painted Caliper; Hella Pagid - coated, high carbon (full-cast disc)
2020	BMW	M240i	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2020	BMW	M240i	Base	—	—	—	Rear	To 03/2020; Hella Pagid - coated, high carbon (full-cast disc)
2020	BMW	M240i	Base	—	—	—	Rear	From 03/2020; Hella Pagid - coated, high carbon (full-cast disc)
2020	BMW	M240i xDrive	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2020	BMW	M240i xDrive	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2019	BMW	230i	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2019	BMW	230i	Base	—	—	—	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2019	BMW	230i xDrive	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2019	BMW	230i xDrive	Base	—	—	—	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2019	BMW	M240i	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2019	BMW	M240i	Base	—	3.0L	L6	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2019	BMW	M240i xDrive	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2019	BMW	M240i xDrive	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2018	BMW	230i	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2018	BMW	230i	Base	—	—	—	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2018	BMW	230i xDrive	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2018	BMW	230i xDrive	Base	—	—	—	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2018	BMW	320i	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2018	BMW	320i	Base	—	—	—	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2018	BMW	M240i	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2018	BMW	M240i	Base	—	3.0L	L6	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2018	BMW	M240i xDrive	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2018	BMW	M240i xDrive	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2017	BMW	230i	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2017	BMW	230i	Base	—	—	—	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2017	BMW	230i xDrive	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2017	BMW	230i xDrive	Base	—	—	—	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2017	BMW	320i	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2017	BMW	320i	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2017	BMW	M240i	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2017	BMW	M240i	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2017	BMW	M240i xDrive	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2017	BMW	M240i xDrive	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2016	BMW	228i	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2016	BMW	228i	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2016	BMW	228i xDrive	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2016	BMW	228i xDrive	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2016	BMW	320i	Base	—	—	—	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2016	BMW	320i	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2016	BMW	M235i	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2016	BMW	M235i	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2016	BMW	M235i xDrive	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2016	BMW	M235i xDrive	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	228i	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	228i	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	228i xDrive	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	228i xDrive	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	328i	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	328i	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	428i	Base	Coupe	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	428i	Base	Coupe	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	428i	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	428i	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	M235i	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	M235i	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	M235i xDrive	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2015	BMW	M235i xDrive	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	228i	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	228i	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	328i	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	328i	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	428i	Base	Coupe	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	428i	Base	Coupe	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	428i	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	428i	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	428i xDrive	Base	Convertible	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	428i xDrive	Base	Convertible	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	M235i	Base	—	—	—	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2014	BMW	M235i	Base	—	—	—	Rear	Hella Pagid - coated, high carbon (full-cast disc)
2013	BMW	328i	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2013	BMW	328i	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
2012	BMW	328i	Base	—	2.0L	L4	Rear	coated, high carbon (full-cast disc); Internally Vented; Diameter: 345 mm, Thickness: 24 mm; Hella Pagid - coated, high carbon (full-cast disc)
2012	BMW	328i	Base	—	2.0L	L4	Rear	For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc)
No rows match your filter.

Directly replaces or cross-references 36 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Dynamic Friction Company — 600-31113Dynamic Friction Company — 600-92100Dynamic Friction Company — 604-31113Dynamic Friction Company — 640-31113Dynamic Friction Company — 644-3111334 42 6 760 60534 42 6 871 719900-31113900-31113A940-31113940-31113A196099563208JC16797605689871920105728923115051502921541502921553835231005PD342067976053420689871998200311501BBD7010SBD3571BDC6246BG4755C18B1BG9498BCD2067RD2068RDP0104DP0104CGD2067RGD2068RMBD6246V2080021
