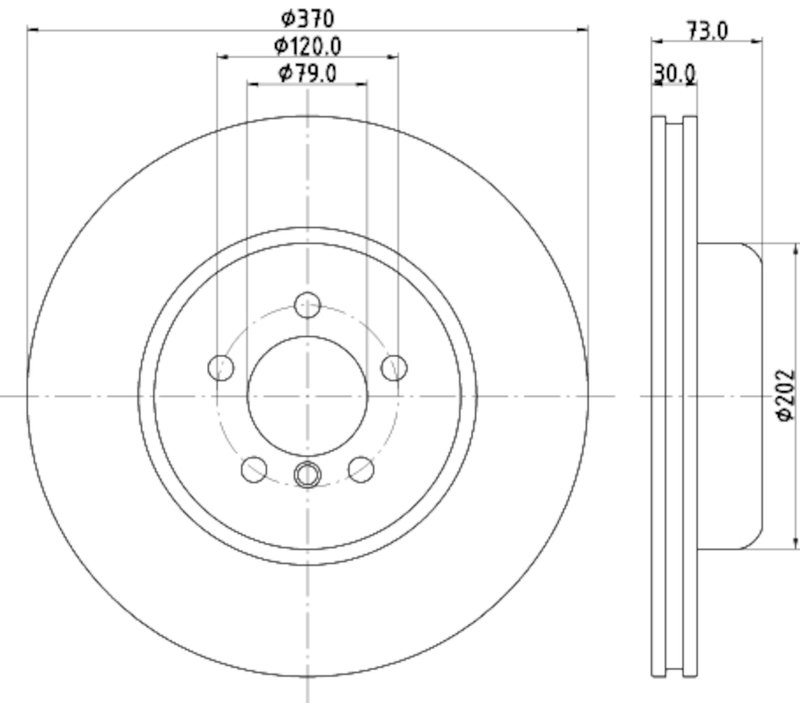

Hella Pagid - coated, high carbon (full-cast disc)Pagid 355132801 Disc Brake Rotor - Front
| Brand | Pagid 355132801 |
|---|---|
| Position | Front |
| Material | Gray cast iron |
| Discard Thickness | 28.40 |
| Nominal Thickness | 30.00 |
| Balancing Type | Mill balancing |
| Disc Finish | Coated |
| Hat Finish | Coated |
| Construction | Composite |
| Rust Resistant Coating | Yes |
| Inside Diameter | 79.00 |
| Overall Height | 73.00 |
| Outside Diameter | 370.00 |
| Mounting Bolt Hole Quantity | 5 |
| Grade Type | Standard replacement |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 120.00 |
| Mounting Bolt Hole Circle Diameter | 120.00 |
| Stud/Lug Hole Quantity | 5 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Assy/Disassy by Qualified Personnel Required! | . |
| Bolt Hole Circle Ø [in] | 4.72 |
| Bolt Hole Circle Ø [mm] | 120 |
| Brake Disc Thickness [in] | 1.18 |
| Brake Disc Thickness [mm] | 30 |
| Brake Disc Type | Internally vented |
| Brake Disc Type | Two-piece brake disc |
| Centering Diameter [in] | 3.11 |
| Centering Diameter [mm] | 79 |
| Product line | Hella Pagid - coated, high carbon (full-cast disc) |
| Fits | BMW · 84 vehicles |
OE-style replacement. Standard replacement disc brake rotor with a two-piece, internally vented design.
Coated finish. Helps resist rust on the disc and hat surfaces.
High-carbon construction. Composite gray cast iron for stable braking performance.
Cross-references DuraGo BD3569, Dynamic Friction Company 600-31112 and Dynamic Friction Company 604-31112 for the same application. See all 20.
$166.32Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options
Front Brake Rotor for BMW 3 and 4 Series
The Pagid 355132801 is a front axle disc brake rotor built for BMW performance applications that use a 370 mm vented front disc. It features a coated, high-carbon full-cast design with a smooth, non-directional braking surface for consistent service replacement on select BMW 335i, 340i, 435i, and 440i models.
Key Features
- Part number 355132801 from Pagid / Hella Pagid coated, high carbon line
- Front axle rotor with internally vented, two-piece brake disc construction
- Gray cast iron material with coated disc and coated hat finish
- 370 mm outside diameter and 30 mm nominal thickness
- Minimum discard thickness: 28.4 mm
- Mill balanced for controlled rotor consistency
- Rust-resistant coating helps protect exposed surfaces
- 5-bolt mounting pattern with 120 mm bolt circle and 79 mm centering diameter
- Standard replacement grade with smooth, non-directional surface
Product Details
Pagid’s Hella Pagid coated, high carbon full-cast disc line focuses on OE-style replacement fit and material stability. This rotor uses high-carbon gray cast iron and a coated finish on both the disc and hat to help resist corrosion during normal service. The internally vented design supports front brake heat management, while the two-piece construction and mill balancing help maintain predictable braking feel on select BMW 3 Series and 4 Series applications.
Fits 2012-2015 BMW 335i, front; Fits 2014-2015 BMW 335i GT xDrive, front; Fits 2014-2015 BMW 335i xDrive, front; Fits 2014-2016 BMW 435i, front; Fits 2015-2016 BMW 435i Gran Coupe, front; Fits 2014-2016 BMW 435i xDrive, front; Fits 2015-2016 BMW 435i xDrive Gran Coupe, front; Fits 2016-2018 BMW 340i, front; Fits 2016-2018 BMW 340i xDrive, front; Fits 2017-2020 BMW 440i, front; Fits 2017-2020 BMW 440i Gran Coupe, front; Fits 2017-2020 BMW 440i xDrive, front; Fits 2017-2020 BMW 440i xDrive Gran Coupe, front; Fits 2014-2015 BMW ActiveHybrid 3, front.
This part cross-references DuraGo BD3569 for the same application.
Common Brake Issues It Can Address
- Brake pulsation from rotor wear or thickness variation
- Corrosion on the braking surface or hat area
- Reduced braking consistency from overheated front rotors
- Noise or vibration caused by worn or uneven discs
- Service replacement needs on BMW front brake systems
Installation Notes and Tips
Confirm rotor diameter, thickness, and bolt pattern before installation. This rotor is for the front axle and is listed without wheel bearing, wheel hub, or wheel studs. Vehicles with blue painted calipers are specifically noted in the fitment data, so verify caliper configuration before ordering. Because brake components are safety-critical, installation should be performed by qualified personnel and the brake system should be inspected for pad condition, caliper operation, and hub cleanliness during service.
Quality Assurance
Pagid and Hella Pagid position this rotor as a standard replacement disc with coated surfaces, high-carbon material, and mill balancing for consistent service use. Part number 355132801 is built to match the listed BMW front brake applications and dimensional requirements.
This part fits 84 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | BMW | 440i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2020 | BMW | 440i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2020 | BMW | 440i Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2020 | BMW | 440i Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2020 | BMW | 440i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2020 | BMW | 440i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2020 | BMW | 440i xDrive Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2020 | BMW | 440i xDrive Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2019 | BMW | 440i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2019 | BMW | 440i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2019 | BMW | 440i Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2019 | BMW | 440i Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2019 | BMW | 440i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2019 | BMW | 440i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2019 | BMW | 440i xDrive Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2019 | BMW | 440i xDrive Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 340i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 340i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 340i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 340i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 440i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 440i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 440i Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 440i Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 440i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 440i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 440i xDrive Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2018 | BMW | 440i xDrive Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 340i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 340i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 340i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 340i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 440i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 440i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 440i Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 440i Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 440i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 440i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 440i xDrive Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2017 | BMW | 440i xDrive Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 340i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 340i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 340i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 340i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 435i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 435i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 435i Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 435i Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 435i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 435i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 435i xDrive Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2016 | BMW | 435i xDrive Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 335i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 335i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 335i GT xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 335i GT xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 335i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 335i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 435i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 435i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 435i Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 435i Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 435i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 435i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 435i xDrive Gran Coupe | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | 435i xDrive Gran Coupe | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | ActiveHybrid 3 | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2015 | BMW | ActiveHybrid 3 | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | 335i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | 335i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | 335i GT xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | 335i GT xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | 335i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | 335i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | 435i | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | 435i | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | 435i xDrive | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | 435i xDrive | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | ActiveHybrid 3 | Base | — | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2014 | BMW | ActiveHybrid 3 | Base | — | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2013 | BMW | 335i | Base | Sedan | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2013 | BMW | 335i | Base | Sedan | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| 2012 | BMW | 335i | Base | Sedan | Front | coated, high carbon (full-cast disc); Internally Vented; Diameter: 370 mm, Thickness: 30 mm; Hella Pagid - coated, high carbon (full-cast disc) |
| 2012 | BMW | 335i | Base | Sedan | Front | For vehicles with blue painted calipers; Hella Pagid - coated, high carbon (full-cast disc) |
| No rows match your filter. | ||||||
Directly replaces or cross-references 20 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
DuraGo — BD3569Dynamic Friction Company — 600-31112Dynamic Friction Company — 604-31112Dynamic Friction Company — 900-31112A34 41 6 760 6066165110679760620105727923117053835211018PD3410679760698200311701BBD7013SBG9158C19B1DI0116DI0116CDI957170DI957181MBD6250V2080016
