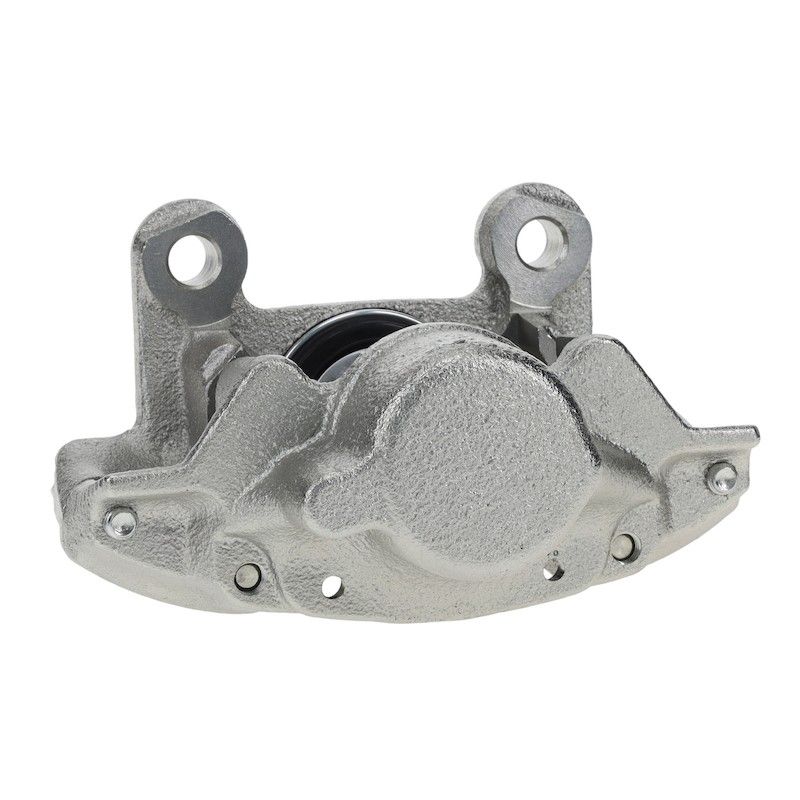

Pagid 355781632 Disc Brake Caliper - Rear Left
| Brand | Pagid 355781632 |
|---|---|
| Position | Rear Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | No |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | No |
| Piston Quantity | 2 |
| Caliper Type | Fixed |
| Piston Diameter | 35.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | No |
| Piston Material | Steel |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 6.8 |
| Bleeder Screw Thread Pitch [mm] | 1.25 |
| Bleeder Screw Thread Size | M8 - 1.25 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Mercedes-Benz · 40 vehicles |
OE-standard testing. Built to meet original equipment performance expectations for braking service.
Fixed caliper design. Two-piston construction supports consistent clamping force and pedal response.
Powder-coated finish. Gray coating adds surface protection for everyday brake service.
Cross-references 0014234698, 1244200283 and 2014200083 for the same application. See all 8.
Overview
This Pagid disc brake caliper is a standard replacement for select Mercedes-Benz applications that require a fixed rear left caliper with two pistons. Part number 355781632 is built with a cast iron body, steel pistons, and a powder-coated gray finish for a durable service replacement.
Compatible with Mercedes-Benz 190E, 190D, 260E, 300CE, 300D, 300E, C280, E300, and E320 applications listed below, this caliper is engineered to meet OE standards for fit and braking performance. Part number 355781632 also cross-references Mercedes-Benz OE numbers 0014234698 and 1244200283 for the same application.
Key Features
- Fixed disc brake caliper design with 2 pistons
- Cast iron caliper body with steel pistons
- Powder-coated gray finish for added surface protection
- Bleeder screw included
- Standard replacement grade for service repair
- Part number 355781632 for catalog and fitment lookup
Product Details
Pagid 355781632 is a rear left brake caliper engineered for European vehicle applications that demand OE-level braking characteristics. The fixed caliper design uses two 35 mm pistons to deliver consistent clamping force, while the cast iron housing and steel piston construction support stable operation under repeated braking loads. The included bleeder screw simplifies brake bleeding during service. This caliper is a direct service option for Mercedes-Benz 190E, 300E, and related models listed in the fitment data, and it is identified by part number 355781632.
Common Issues This Part Can Address
- Brake fluid leakage from a worn caliper body or seal area
- Uneven rear braking caused by sticking or seized pistons
- Reduced braking response from internal caliper wear
- Corrosion or finish damage on an aging brake caliper
- Service failures related to an original rear left caliper
Installation Notes
Fits 1994-1995 Mercedes-Benz C280, rear left, Exc.Traction Control. Fits 1995 Mercedes-Benz E300, rear left, Standard. Fits 1994-1995 Mercedes-Benz E320, rear left. Fits 1987-1993 Mercedes-Benz 190E, rear left, Standard. Fits 1985 Mercedes-Benz 190E, rear left, Standard. Fits 1990-1993 Mercedes-Benz 300CE, rear left. Fits 1990-1993 Mercedes-Benz 300D, rear left, Optional. Fits 1993 Mercedes-Benz 300E, rear left, Optional. Fits 1986-1989 Mercedes-Benz 300E, rear left, Optional. Fits 1990-1992 Mercedes-Benz 300E, rear left, Exc.Traction Control. Fits 1985-1989 Mercedes-Benz 190D, rear left, Standard. Fits 1987-1989 Mercedes-Benz 260E, rear left, Standard. Fits 1988-1989 Mercedes-Benz 300CE, rear left, Optional. Fits 1986 Mercedes-Benz 190E, rear left, Optional.
Verify inlet and bleeder thread specifications before installation. Brake system bleeding and inspection should be completed after replacement to confirm proper pedal feel and caliper operation.
Quality Assurance
HELLA brake calipers are tested to meet OE standards and are engineered for the requirements of European vehicle braking systems. Pagid part number 355781632 is built as a standard replacement caliper for service use.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1995 | Mercedes-Benz | C280 | Base | — | — | — | Rear Left | Exc.Traction Control |
| 1995 | Mercedes-Benz | E300 | Base | — | — | — | Rear Left | Standard |
| 1995 | Mercedes-Benz | E320 | Base | Coupe | — | — | Rear Left | — |
| 1994 | Mercedes-Benz | C280 | Base | — | — | — | Rear Left | Exc.Traction Control |
| 1994 | Mercedes-Benz | E320 | Base | Coupe | — | — | Rear Left | — |
| 1993 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Left | Standard |
| 1993 | Mercedes-Benz | 300CE | Base | Coupe | — | — | Rear Left | — |
| 1993 | Mercedes-Benz | 300D | 2.5 | — | — | — | Rear Left | Optional |
| 1993 | Mercedes-Benz | 300E | 4Matic | — | — | — | Rear Left | Optional |
| 1992 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Left | Standard |
| 1992 | Mercedes-Benz | 300CE | Base | — | — | — | Rear Left | — |
| 1992 | Mercedes-Benz | 300D | 2.5 | — | — | — | Rear Left | Optional |
| 1992 | Mercedes-Benz | 300E | Base | — | — | — | Rear Left | Exc.Traction Control |
| 1991 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Left | Standard |
| 1991 | Mercedes-Benz | 300CE | Base | — | — | — | Rear Left | — |
| 1991 | Mercedes-Benz | 300D | 2.5 | — | — | — | Rear Left | Optional |
| 1991 | Mercedes-Benz | 300E | Base | — | — | — | Rear Left | Exc.Traction Control |
| 1990 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Left | Standard |
| 1990 | Mercedes-Benz | 300CE | Base | — | — | — | Rear Left | — |
| 1990 | Mercedes-Benz | 300D | 2.5 | — | — | — | Rear Left | Optional |
| 1990 | Mercedes-Benz | 300E | Base | — | — | — | Rear Left | Exc.Traction Control |
| 1989 | Mercedes-Benz | 190D | 2.5 | — | — | — | Rear Left | Standard |
| 1989 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Left | Standard |
| 1989 | Mercedes-Benz | 260E | Base | — | — | — | Rear Left | Standard |
| 1989 | Mercedes-Benz | 300CE | Base | — | 3.0L | L6 | Rear Left | Optional |
| 1989 | Mercedes-Benz | 300E | Base | — | — | — | Rear Left | Optional |
| 1988 | Mercedes-Benz | 190D | 2.5 | — | — | — | Rear Left | Standard |
| 1988 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Left | Standard |
| 1988 | Mercedes-Benz | 260E | Base | — | — | — | Rear Left | Standard |
| 1988 | Mercedes-Benz | 300CE | Base | — | 3.0L | L6 | Rear Left | Optional |
| 1988 | Mercedes-Benz | 300E | Base | — | — | — | Rear Left | Optional |
| 1987 | Mercedes-Benz | 190D | 2.5 | — | — | — | Rear Left | Standard |
| 1987 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Left | Standard |
| 1987 | Mercedes-Benz | 260E | Base | — | — | — | Rear Left | Standard |
| 1987 | Mercedes-Benz | 300E | Base | — | — | — | Rear Left | Optional |
| 1986 | Mercedes-Benz | 190D | 2.5 | — | — | — | Rear Left | Standard |
| 1986 | Mercedes-Benz | 190E | 2.3-16 | — | — | — | Rear Left | Optional |
| 1986 | Mercedes-Benz | 300E | Base | — | — | — | Rear Left | Optional |
| 1985 | Mercedes-Benz | 190D | 2.2 | — | — | — | Rear Left | Standard |
| 1985 | Mercedes-Benz | 190E | 2.3 | — | — | — | Rear Left | Standard |
