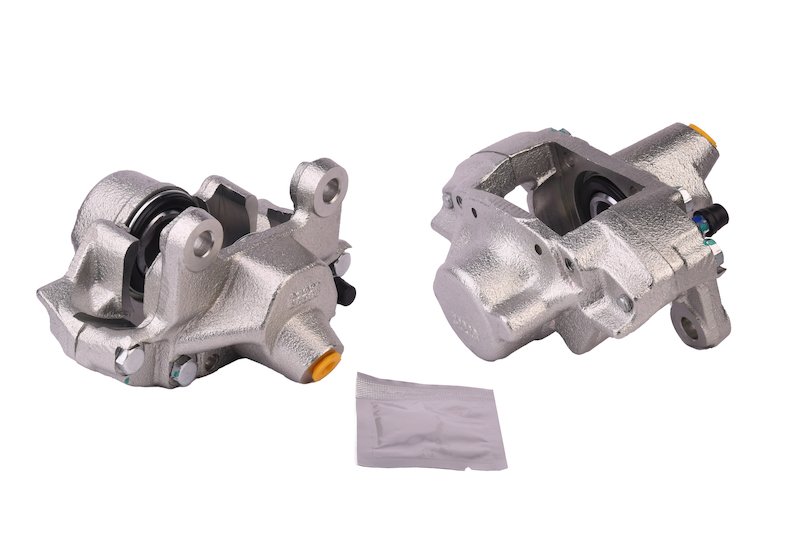

Pagid 355781641 Disc Brake Caliper - Rear Right

Rear Right Brake Caliper for Mercedes-Benz

This Pagid Core Free Calipers disc brake caliper is a new rear right replacement built for Mercedes-Benz applications that use the ATE brake system. Part number 355781641 is engineered as a fixed caliper with 2 pistons, offering OE-style fitment for select 1985-1995 Mercedes-Benz C280, E300, E320, 190E, 260E, 300CE, 300D, and 300E models.

Pagid Core Free Calipers are part of the Core Free Calipers line, focused on standard replacement brake hydraulics for European applications. This caliper is designed for drivers and repair shops looking for a direct-fit rear right brake caliper for Mercedes-Benz 190E and E-Class-era vehicles with the correct ATE brake setup.

Key Features

• Part number 355781641 for rear right fitment
• Fixed caliper design with 2 pistons
• 35 mm bore diameter and steel pistons
• Cast iron construction with powder-coated gray finish
• Premium coating and rust preventative coating for corrosion resistance
• Bleeder screw and bleeder screw cap included
• Standard replacement grade for OE-style service work
• Designed for Mercedes-Benz rear brake applications with ATE brake system

Detailed Description

Pagid 355781641 is a rear right disc brake caliper built from gray cast iron with a fixed 2-piston layout and a 35 mm bore. It uses an M10 x 1-6H inlet fitting, includes a bleeder screw, and arrives without pads, mounting hardware, slides, or bracket. The powder-coated finish and rust preventative coating help protect the caliper housing in everyday service conditions. This part cross-references Mercedes-Benz OE numbers such as 124 420 03 83 and A 124 420 03 83 for the same application.

Compatible With 1985-1995 Mercedes-Benz 190E, rear right; 1987-1989 Mercedes-Benz 260E, rear right; 1986-1993 Mercedes-Benz 300E, rear right; 1988-1989 Mercedes-Benz 300CE, rear right; 1990-1993 Mercedes-Benz 300D, rear right; 1994-1995 Mercedes-Benz E320, rear right; 1995 Mercedes-Benz C280, rear right; and 1995 Mercedes-Benz E300, rear right. Part number 355781641 is a direct-fit option for these Mercedes-Benz rear brake repairs when the vehicle uses the listed configuration.

Common Repair Uses

• Restoring rear brake clamping force on Mercedes-Benz 190E, 260E, 300E, and 300CE models
• Replacing a leaking or sticking rear right caliper
• Correcting uneven rear brake wear or pull during braking
• Addressing corrosion on an original rear caliper housing
• Servicing ATE-equipped Mercedes-Benz rear brake systems

Installation Notes and Tips

Verify rear right position, brake system type, and inlet thread before installation. This caliper is supplied without pads, mounting hardware, slides, or bracket, so reuse or source the required related components separately. Assembly and disassembly by qualified personnel is required. Always bleed the brake system after installation and confirm proper pedal feel before returning the vehicle to service.

Quality Assurance

HELLA brake calipers in the Pagid program are tested to meet OE standards for safety and performance. The Core Free Calipers line is built for European aftermarket applications and nameplate coverage, with engineering focused on correct fit and dependable braking performance.
