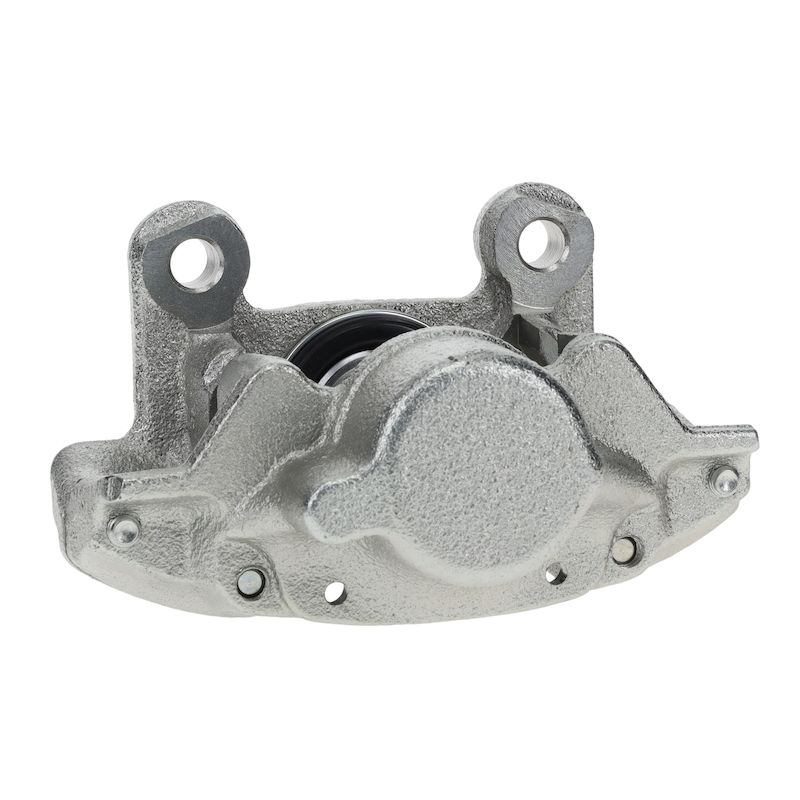

Pagid 355781642 Disc Brake Caliper - Rear Right
| Brand | Pagid 355781642 |
|---|---|
| Position | Rear Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | No |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | No |
| Piston Quantity | 2 |
| Caliper Type | Fixed |
| Piston Diameter | 35.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | No |
| Piston Material | Steel |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 6.8 |
| Bleeder Screw Thread Pitch [mm] | 1.25 |
| Bleeder Screw Thread Size | M8 - 1.25 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Mercedes-Benz · 40 vehicles |
Standard replacement. Built for OE-style brake service with tested fit and function.
Fixed caliper design. Two pistons and a cast iron body support consistent braking response.
Powder-coated finish. Gray coating adds surface protection for everyday brake system use.
Cross-references 0014234798, 1244200383 and 2014200183 for the same application. See all 8.
Overview
This Pagid disc brake caliper is a standard replacement part built for Mercedes-Benz applications that require a fixed rear right caliper. Part number 355781642 is engineered with a cast iron body, a steel piston, and a powder-coated gray finish for dependable brake system service.
It fits multiple Mercedes-Benz models, including C280, E320, and 190E applications, with fitment notes that vary by vehicle and brake configuration. Part number 355781642 is also cross-referenced to OE-style numbers 0014234798 and 1244200383 for the same application.
Key Features
- Standard replacement disc brake caliper for brake hydraulic service
- Fixed caliper design with 2 pistons for controlled braking force
- Cast iron caliper body with steel piston construction
- Powder-coated gray finish for added surface protection
- Bleeder screw included for brake bleeding service
- Compatible with rear right Mercedes-Benz brake applications
Detailed Description
Pagid 355781642 is a fixed disc brake caliper designed to match OE-level requirements for Mercedes-Benz brake systems. The cast iron housing and steel piston support stable hydraulic operation, while the 35.00 mm piston diameter and standard replacement grade make it a direct service part for the listed rear right applications. This caliper is suited for Mercedes-Benz 190E, 190D, 260E, 300E, 300CE, 300D, C280, E300, and E320 fitments shown in the catalog data.
HELLA brake calipers are developed for a wide range of vehicle types and braking demands, and each unit is tested to meet OE standards. Part number 355781642 is a practical choice when replacing a worn or leaking rear right caliper on Mercedes-Benz brake systems that call for this configuration.
Common Repair Uses
- Restores hydraulic pressure when the caliper is sticking or leaking
- Addresses uneven rear braking caused by worn piston or seal surfaces
- Helps correct brake drag from a caliper that no longer releases properly
- Replaces a damaged caliper housing or bleeder screw assembly
- Supports brake service on Mercedes-Benz rear right applications
Installation Notes
Verify the vehicle year, model, and brake configuration before ordering, since fitment includes standard, optional, and traction-control-specific notes. This caliper does not include mounting hardware, mounting bracket, slides, or pad wear sensor. Confirm inlet and bleeder thread specifications during installation, and bleed the brake system after replacement.
Quality Assurance
Pagid and HELLA brake calipers are tested to meet OE standards for safety and performance. Part number 355781642 is built as a standard replacement caliper for the listed Mercedes-Benz applications, with OE-style interchange references available for matching the correct service part.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1995 | Mercedes-Benz | C280 | Base | — | — | — | Rear Right | Exc.Traction Control |
| 1995 | Mercedes-Benz | E300 | Base | — | — | — | Rear Right | Optional |
| 1995 | Mercedes-Benz | E320 | Base | Coupe | — | — | Rear Right | — |
| 1994 | Mercedes-Benz | C280 | Base | — | — | — | Rear Right | Exc.Traction Control |
| 1994 | Mercedes-Benz | E320 | Base | Coupe | — | — | Rear Right | — |
| 1993 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Right | Standard |
| 1993 | Mercedes-Benz | 300CE | Base | Coupe | — | — | Rear Right | — |
| 1993 | Mercedes-Benz | 300D | 2.5 | — | — | — | Rear Right | Standard |
| 1993 | Mercedes-Benz | 300E | 4Matic | — | — | — | Rear Right | Optional |
| 1992 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Right | Standard |
| 1992 | Mercedes-Benz | 300CE | Base | — | — | — | Rear Right | — |
| 1992 | Mercedes-Benz | 300D | 2.5 | — | — | — | Rear Right | Standard |
| 1992 | Mercedes-Benz | 300E | Base | — | — | — | Rear Right | Exc.Traction Control |
| 1991 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Right | Standard |
| 1991 | Mercedes-Benz | 300CE | Base | — | — | — | Rear Right | — |
| 1991 | Mercedes-Benz | 300D | 2.5 | — | — | — | Rear Right | Standard |
| 1991 | Mercedes-Benz | 300E | Base | — | — | — | Rear Right | Exc.Traction Control |
| 1990 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Right | Standard |
| 1990 | Mercedes-Benz | 300CE | Base | — | — | — | Rear Right | — |
| 1990 | Mercedes-Benz | 300D | 2.5 | — | — | — | Rear Right | Standard |
| 1990 | Mercedes-Benz | 300E | Base | — | — | — | Rear Right | Exc.Traction Control |
| 1989 | Mercedes-Benz | 190D | 2.5 | — | — | — | Rear Right | Standard |
| 1989 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Right | Standard |
| 1989 | Mercedes-Benz | 260E | Base | — | — | — | Rear Right | Optional |
| 1989 | Mercedes-Benz | 300CE | Base | — | 3.0L | L6 | Rear Right | Standard |
| 1989 | Mercedes-Benz | 300E | Base | — | — | — | Rear Right | Standard |
| 1988 | Mercedes-Benz | 190D | 2.5 | — | — | — | Rear Right | Standard |
| 1988 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Right | Standard |
| 1988 | Mercedes-Benz | 260E | Base | — | — | — | Rear Right | Optional |
| 1988 | Mercedes-Benz | 300CE | Base | — | 3.0L | L6 | Rear Right | Standard |
| 1988 | Mercedes-Benz | 300E | Base | — | — | — | Rear Right | Standard |
| 1987 | Mercedes-Benz | 190D | 2.5 | — | — | — | Rear Right | Standard |
| 1987 | Mercedes-Benz | 190E | 2.6 | — | — | — | Rear Right | Standard |
| 1987 | Mercedes-Benz | 260E | Base | — | — | — | Rear Right | Optional |
| 1987 | Mercedes-Benz | 300E | Base | — | — | — | Rear Right | Standard |
| 1986 | Mercedes-Benz | 190D | 2.5 | — | — | — | Rear Right | Standard |
| 1986 | Mercedes-Benz | 190E | 2.3-16 | — | — | — | Rear Right | Standard |
| 1986 | Mercedes-Benz | 300E | Base | — | — | — | Rear Right | Standard |
| 1985 | Mercedes-Benz | 190D | 2.2 | — | — | — | Rear Right | Standard |
| 1985 | Mercedes-Benz | 190E | 2.3 | — | — | — | Rear Right | Standard |
