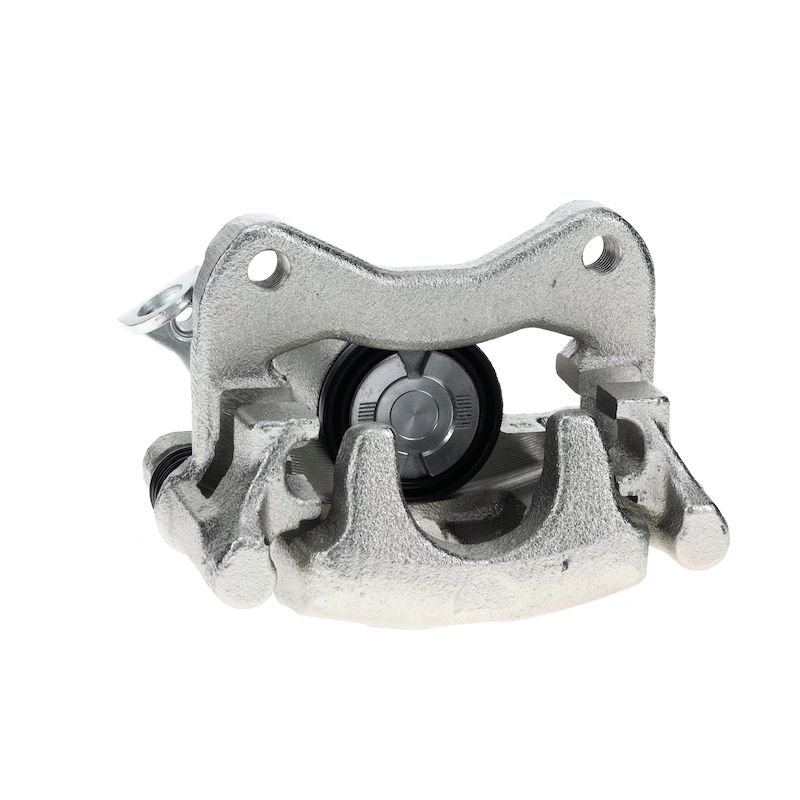

Pagid 355783312 Disc Brake Caliper - Rear Left
| Brand | Pagid 355783312 |
|---|---|
| Position | Rear Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Fixed |
| Piston Diameter | 38.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Volkswagen · 17 vehicles |
OE-standard testing. Built to meet OE requirements for safety and braking performance.
Fixed caliper design. One-piece hydraulic layout with a 38.00 mm piston.
Durable finish. Powder-coated gray cast iron construction for service use.
Cross-references 1H0615423, 1H0615423A and 1H0615423B for the same application. See all 5.
Overview
Pagid 355783312 is a standard replacement disc brake caliper built for European applications that require OE-level fit and braking consistency. It is a fixed caliper with a 38.00 mm piston, cast iron housing, and powder-coated gray finish for a durable service replacement.
Compatible with Volkswagen Jetta, Golf, Passat, and Corrado rear left applications, this caliper is specified for vehicles that need a direct hydraulic brake service part. The Pagid 355783312 also includes the mounting bracket, slides, bleeder screw, and mounting hardware listed in the product data.
Key Features
- Standard replacement disc brake caliper for hydraulic brake service
- Fixed caliper design with one 38.00 mm piston
- Cast iron body with powder-coated gray finish
- Includes mounting bracket, caliper slides, bleeder screw, and mounting bolt
- Steel piston and M10 x 1.0 bleeder/inlet thread specification
Detailed Description
Pagid 355783312 is engineered as a rear left disc brake caliper for Volkswagen applications, including the Jetta, Golf, Passat, and Corrado. The fixed caliper design and 38.00 mm piston support consistent hydraulic clamping force, while the cast iron construction and powder-coated finish add durability for everyday brake service. This part number, 355783312, is a practical OE-style replacement for vehicles that require the specified rear left caliper configuration.
This part cross-references Volkswagen OE numbers 1H0615423 and 1H0615423A for the same application.
What It Helps Address
- Brake fluid leakage from a worn caliper body or seal area
- Uneven braking caused by sticking caliper movement
- Poor pedal response from internal hydraulic wear
- Corrosion-related caliper damage on older brake systems
- Brake service needs on rear left Volkswagen applications
Installation Notes
Verify the rear left position, fixed caliper design, and 38.00 mm piston specification before installation. Confirm bleeder and inlet thread sizes match the brake line connection, and inspect the mounting bracket and slides during service. Fitment includes 1993 Volkswagen Corrado from chassis/VIN 50P009001, 1993 Volkswagen Passat from chassis/VIN 31PE080001, 1994 Volkswagen Corrado, 1994-1998 Volkswagen Golf, 1994-1997 Volkswagen Passat, and 1995-1999 Volkswagen Jetta.
Quality Assurance
Pagid brake calipers are tested to meet OE standards for safety and performance. The 355783312 is built to satisfy the requirements of European vehicle brake systems and service applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1999 | Volkswagen | Jetta | GLX | 2.8L | V6 | Rear Left | — |
| 1998 | Volkswagen | Golf | GTI VR6 | — | — | Rear Left | — |
| 1998 | Volkswagen | Jetta | GT | — | — | Rear Left | — |
| 1997 | Volkswagen | Golf | GTI VR6 | — | — | Rear Left | — |
| 1997 | Volkswagen | Jetta | TDI | — | — | Rear Left | — |
| 1997 | Volkswagen | Passat | GLX | — | — | Rear Left | — |
| 1996 | Volkswagen | Golf | GTI VR6 | — | — | Rear Left | — |
| 1996 | Volkswagen | Jetta | Wolfsburg Edition | — | — | Rear Left | — |
| 1996 | Volkswagen | Passat | GLX | — | — | Rear Left | — |
| 1995 | Volkswagen | Golf | GTI VR6 | 2.8L | V6 | Rear Left | — |
| 1995 | Volkswagen | Jetta | GLX | 2.8L | V6 | Rear Left | — |
| 1995 | Volkswagen | Passat | GLX | — | — | Rear Left | — |
| 1994 | Volkswagen | Corrado | SLC | — | — | Rear Left | — |
| 1994 | Volkswagen | Golf | Limited Edition | 2.0L | L4 | Rear Left | — |
| 1994 | Volkswagen | Passat | GLX | — | — | Rear Left | — |
| 1993 | Volkswagen | Corrado | SLC | 2.8L | V6 | Rear Left | From Chassis/VIN 50P009001 |
| 1993 | Volkswagen | Passat | GLX | 2.8L | V6 | Rear Left | From Chassis/VIN 31PE080001 |
