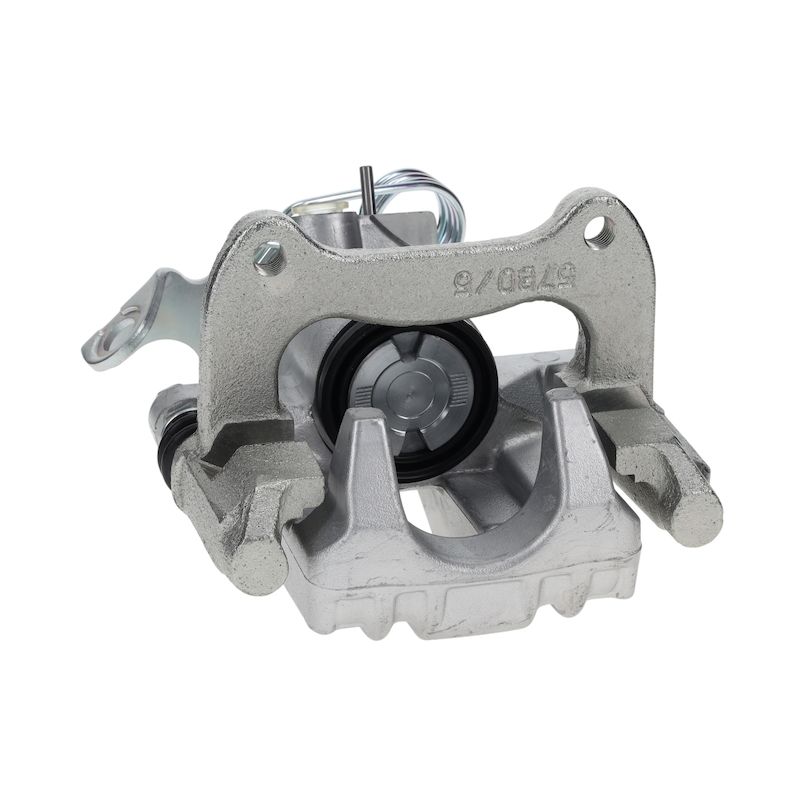

Pagid 355783342 Disc Brake Caliper - Rear Right
| Brand | Pagid 355783342 |
|---|---|
| Position | Rear Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Aluminum |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Fixed |
| Piston Diameter | 38.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 11 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Audi and Volkswagen · 20 vehicles |
OE-standard replacement. Built for precise braking performance and consistent hydraulic response.
Aluminum construction. Powder-coated gray finish helps resist corrosion in demanding service.
Complete mounting components. Includes bracket, slides, bleeder screw, and mounting hardware.
Cross-references 8E0615424 for the same application. See all 1.
Brake Caliper Overview
This Pagid disc brake caliper is a standard replacement for European applications that require OE-level braking performance and precise hydraulic response. It is built for the rear right position and uses a fixed caliper design with a single 38 mm piston.
Key Features
- Standard replacement disc brake caliper for brake hydraulic service
- Aluminum caliper casting with a powder-coated gray finish
- Fixed caliper design with one steel piston
- Mounting bracket, caliper slides, bleeder screw, and mounting hardware included
- Bleeder screw thread size: M10 x 1.0
- Inlet thread diameter: 11 mm with 1.0 pitch
Detailed Description
Pagid 355783342 is engineered as a direct-fit rear right brake caliper for select Volkswagen and Audi applications. The aluminum housing and powder-coated finish support corrosion resistance, while the fixed design and 38 mm piston help maintain consistent brake feel under demanding use. This part cross-references 8E0615424 for the same application.
HELLA brake calipers are developed to meet OE standards and are tested for fit and performance across a wide range of European vehicle applications. For buyers servicing a Volkswagen Passat or Audi A6, this caliper provides a practical OE-style replacement with the specified mounting components and hydraulic connections.
Common Issues This Part May Solve
- Brake drag caused by a sticking caliper piston
- Uneven rear braking from caliper wear or internal corrosion
- Hydraulic leakage at the bleeder screw or inlet connection
- Poor brake response from a worn or damaged caliper assembly
- Noise or instability related to caliper hardware wear
Installation Notes and Tips
Fits 1998-2005 Volkswagen Passat, rear right. Fits 1998-2004 Audi A6, rear right. Fits 1998-2001 Audi A4, rear right. Fits 1997 Audi A4, rear right, from chassis/VIN 8D-V-168-351. Verify the brake system configuration, thread sizes, and VIN breakpoints before installation. Bleed the hydraulic system after replacement and confirm proper caliper movement and pedal feel.
Quality Assurance
HELLA brake calipers undergo extensive testing to meet OE standards for safety and performance. Pagid 355783342 is built for standard replacement service in European brake applications.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2005 | Volkswagen | Passat | GLX | — | — | — | Rear Right | — |
| 2004 | Audi | A6 | Base | — | — | — | Rear Right | — |
| 2004 | Volkswagen | Passat | GLX | — | — | — | Rear Right | — |
| 2003 | Audi | A6 | Base | — | — | — | Rear Right | — |
| 2003 | Volkswagen | Passat | GLX | — | — | — | Rear Right | — |
| 2002 | Audi | A6 | Base | — | 3.0L | V6 | Rear Right | — |
| 2002 | Volkswagen | Passat | GLX | — | — | — | Rear Right | — |
| 2001 | Audi | A4 | Base | — | 2.8L | V6 | Rear Right | — |
| 2001 | Audi | A6 | Base | — | — | — | Rear Right | — |
| 2001 | Volkswagen | Passat | GLX | — | — | — | Rear Right | — |
| 2000 | Audi | A4 | Base | — | 2.8L | V6 | Rear Right | — |
| 2000 | Audi | A6 | Base | — | — | — | Rear Right | — |
| 2000 | Volkswagen | Passat | GLX | FWD | 2.8L | V6 | Rear Right | — |
| 1999 | Audi | A4 | Base | — | 2.8L | V6 | Rear Right | — |
| 1999 | Audi | A6 | Base | — | — | — | Rear Right | — |
| 1999 | Volkswagen | Passat | GLX | — | 2.8L | V6 | Rear Right | — |
| 1998 | Audi | A4 | Base | — | 2.8L | V6 | Rear Right | — |
| 1998 | Audi | A6 | Base | — | 2.8L | V6 | Rear Right | — |
| 1998 | Volkswagen | Passat | GLX | — | — | — | Rear Right | — |
| 1997 | Audi | A4 | Base | — | 2.8L | V6 | Rear Right | From Chassis/VIN 8D-V-168-351 |
