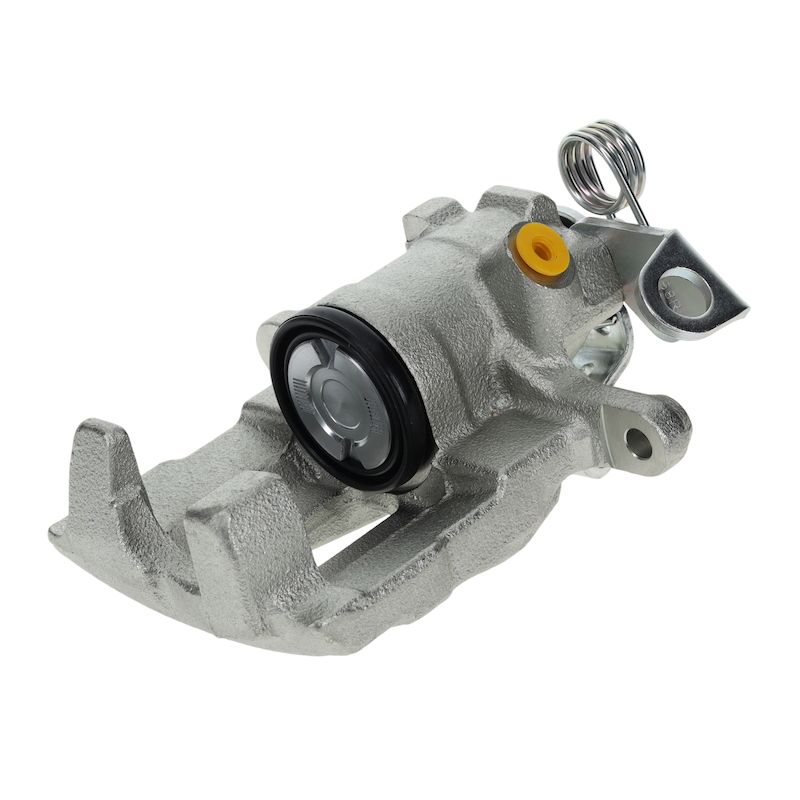

Pagid 355783502 Disc Brake Caliper - Rear Right
| Brand | Pagid 355783502 |
|---|---|
| Position | Rear Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Fixed |
| Piston Diameter | 38.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | No |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Volkswagen · 6 vehicles |
OE-standard replacement. Built for service applications that require consistent hydraulic braking performance.
Fixed caliper design. One-piston construction supports controlled brake force and stable operation.
Powder-coated finish. Helps protect the cast iron housing from surface corrosion.
Cross-references 7D0615424A, 7D0615424B and 1109020 for the same application. See all 4.
Overview
This Pagid disc brake caliper is a standard replacement hydraulic unit built for precise braking performance and OE-level fitment. It is engineered for European applications and is compatible with the Volkswagen EuroVan rear right position in the listed model years.
Key Features
- Fixed caliper design with one 38.00 mm piston for consistent brake force.
- Cast iron caliper body with a powder-coated gray finish.
- Steel piston construction for durable hydraulic operation.
- Bleeder screw, caliper slides, and mounting hardware are included.
- Standard replacement grade for direct service use.
Detailed Description
Pagid part number 355783502 is a disc brake caliper engineered to meet OE standards for braking systems that require a fixed rear right caliper. The cast iron housing, steel piston, and powder-coated finish support dependable service in demanding brake applications. This caliper is listed for the Volkswagen EuroVan rear right position, including 1999-2003 models and 1997 vehicles from chassis/VIN 70V120001. Part number 355783502 also cross-references 7D0615424A and 7D0615424B for the same application.
HELLA brake calipers are developed for a wide range of vehicle types and braking demands, with testing focused on OE-standard compliance. That product approach is reflected in this Pagid caliper, which is built for European nameplate applications and service replacement where correct hydraulic operation and fitment are critical.
Common Replacement Issues
- Brake drag caused by worn or sticking caliper components.
- Uneven braking from piston or slide wear.
- Hydraulic leakage at the caliper body or bleeder area.
- Corrosion or finish breakdown on the original caliper.
- Reduced braking response from an aging fixed caliper assembly.
Installation Notes
Verify rear right fitment against the vehicle year and chassis/VIN note before installation. Confirm inlet and bleeder thread sizes match the brake line and service requirements. Inspect pads, rotors, and brake fluid condition during caliper replacement to complete the repair correctly.
Quality Assurance
This caliper is tested to meet OE standards for safety and performance. Pagid part number 355783502 is built as a standard replacement brake component for service applications requiring consistent hydraulic operation.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2003 | Volkswagen | EuroVan | MV | — | — | Rear Right | — |
| 2002 | Volkswagen | EuroVan | MV | — | — | Rear Right | — |
| 2001 | Volkswagen | EuroVan | MV | — | — | Rear Right | — |
| 2000 | Volkswagen | EuroVan | MV | — | — | Rear Right | — |
| 1999 | Volkswagen | EuroVan | MV | — | — | Rear Right | — |
| 1997 | Volkswagen | EuroVan | Camper | 2.8L | V6 | Rear Right | From Chassis/VIN 70V120001 |
