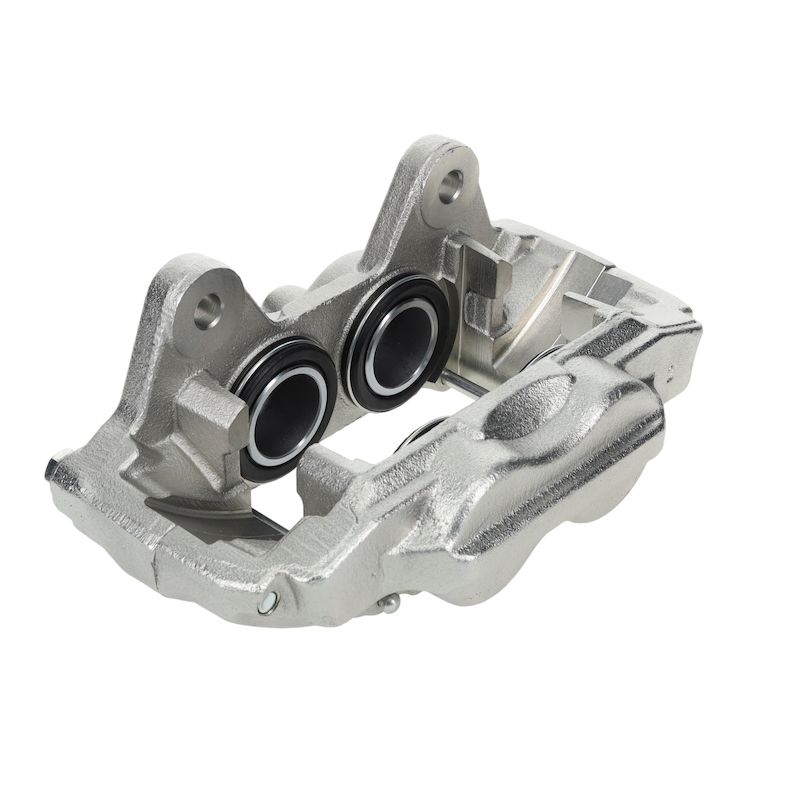

Pagid 355786382 Disc Brake Caliper - Front Right
| Brand | Pagid 355786382 |
|---|---|
| Position | Front Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | No |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | Yes |
| Caliper Slides Included | No |
| Piston Quantity | 2 |
| Caliper Type | Fixed |
| Piston Diameter | 45.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | No |
| Piston Material | Steel |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 6 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Bleeder Screw Thread Size | M7 x 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Lexus and Toyota · 14 vehicles |
Standard replacement. Built for direct brake hydraulic service with OE-style application coverage.
Fixed caliper design. Two-piston construction supports consistent clamping force and pedal response.
Cast iron body. Powder-coated finish and steel pistons add durability in demanding braking conditions.
Cross-references 4773060130 and 4773060261 for the same application. See all 2.
Brake Caliper Overview
This Pagid disc brake caliper is a standard replacement unit built for specific front right applications on the Lexus GX470 and Toyota 4Runner. Part number 355786382 is engineered as a fixed caliper with a cast iron body, powder-coated gray finish, and two 45 mm steel pistons for consistent brake force.
Key Features
- Standard replacement disc brake caliper for brake hydraulic service
- Fixed caliper design with two pistons for controlled clamping force
- Cast iron construction with powder-coated finish
- Bleeder screw and anti-rattle spring included
- Mounting hardware included
- Part number 355786382
Detailed Description
Pagid 355786382 is a front right brake caliper for 2003-2009 Lexus GX470 and 2003-2009 Toyota 4Runner applications listed below. The fixed design uses two steel pistons and a 45.00 mm piston diameter to deliver stable pad engagement, while the cast iron housing and powder-coated gray finish support durability in demanding braking conditions. This part cross-references 4773060130 and 4773060261 for the same application.
HELLA brake calipers are developed to meet OE standards and are tested for fit and performance across European and US nameplate applications. Part number 355786382 follows that OE-focused approach for buyers replacing a worn or leaking caliper on a Lexus GX470 or Toyota 4Runner.
What It Is Used For
- Replacing a leaking or seized brake caliper
- Restoring proper hydraulic braking force
- Addressing uneven pad contact or brake drag
- Correcting corrosion-related caliper wear
- Servicing front right brake system wear on listed applications
Installation Notes
Fits 2003-2005 Lexus GX470, front right. Fits 2006 Lexus GX470, front right, from 09/05. Fits 2007-2009 Lexus GX470, front right. Fits 2003 Toyota 4Runner, front right, 17" wheels. Fits 2004-2005 Toyota 4Runner, front right. Fits 2006 Toyota 4Runner, front right, from 09/05. Fits 2007-2009 Toyota 4Runner, front right. Verify inlet thread size, bleeder screw thread size, and brake line connection before installation. Bleeding the hydraulic system after installation is required.
Quality Assurance
Pagid 355786382 is built as a standard replacement caliper and tested to OE standards for safety and performance. The HELLA brake caliper program is supported by extensive testing for application-specific braking requirements.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Lexus | GX470 | Base | — | — | Front Right | — |
| 2009 | Toyota | 4Runner | Sport | 4.7L | V8 | Front Right | — |
| 2008 | Lexus | GX470 | Base | — | — | Front Right | — |
| 2008 | Toyota | 4Runner | Sport | 4.7L | V8 | Front Right | — |
| 2007 | Lexus | GX470 | Base | — | — | Front Right | — |
| 2007 | Toyota | 4Runner | Sport | 4.7L | V8 | Front Right | — |
| 2006 | Lexus | GX470 | Base | — | — | Front Right | From 09/05 |
| 2006 | Toyota | 4Runner | Sport | 4.7L | V8 | Front Right | From 09/05 |
| 2005 | Lexus | GX470 | Base | — | — | Front Right | — |
| 2005 | Toyota | 4Runner | Sport | 4.7L | V8 | Front Right | — |
| 2004 | Lexus | GX470 | Base | — | — | Front Right | — |
| 2004 | Toyota | 4Runner | Sport | 4.7L | V8 | Front Right | — |
| 2003 | Lexus | GX470 | Base | — | — | Front Right | — |
| 2003 | Toyota | 4Runner | Sport | 4.7L | V8 | Front Right | 17" Wheels |
